1500W 30A DC-DC Boost Converter Step Up Power Supply Module Constant Current
Original price was: $13.26.$10.18Current price is: $10.18.
♦ Specifications
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
Input Current: 30A(input voltage 12V to 30V)
25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V)
Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input : Yes (150A MOS)
Lower Voltage : Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: – 40 to +85 (if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current : Yes (automatically when input is more than 35A, and power supply voltage will not increase)
Short Circuit : Yes(input 30A )
Wiring Method: Terminals(please use large current copper wire)
Output Power = Input Voltage Current (If input 12V, the output power=12V*30A = 360W)

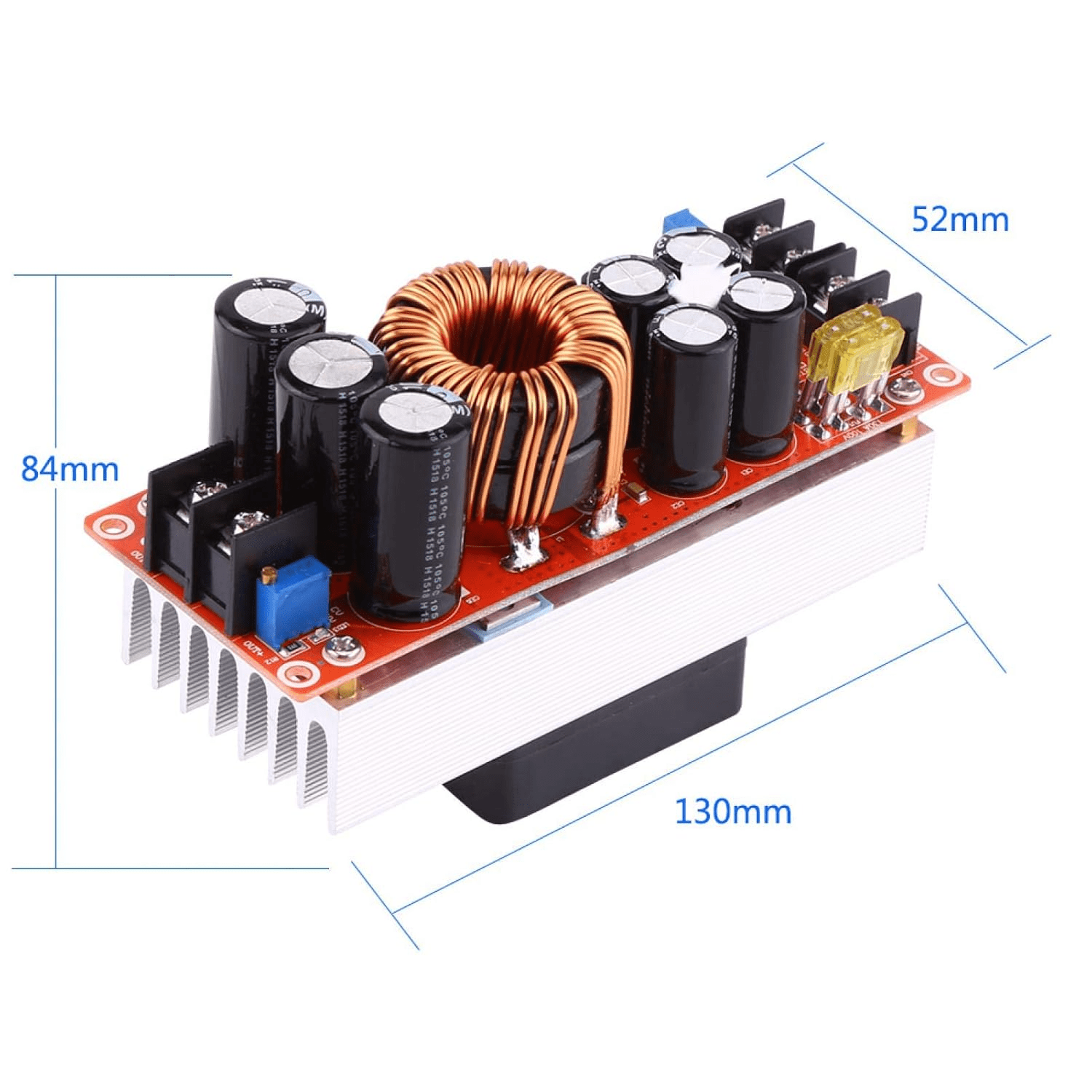

Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04″
Combine shipping available. Message us for shipping rates.
- Quality Assurance
- Fast Worldwide Shipping
- Buy with Confidence
Description
Struggling with insufficient voltage for your high-power DC projects? This 1500W 30A Boost Converter steps up your input voltage from 12–60V to a fully adjustable 24–84V output giving you clean, stable power exactly where you need it.
This heavy-duty step-up power supply is engineered for demanding applications: solar charge controllers, battery charging systems, electric vehicle conversions, industrial automation, and DIY electronics labs. With a maximum output of 1500W and 30A continuous current, it handles loads that most budget converters simply cannot. The adjustable output voltage and constant current range (0.8–22A ±0.3A) let you fine-tune performance for each specific application — no guesswork, no compromises.

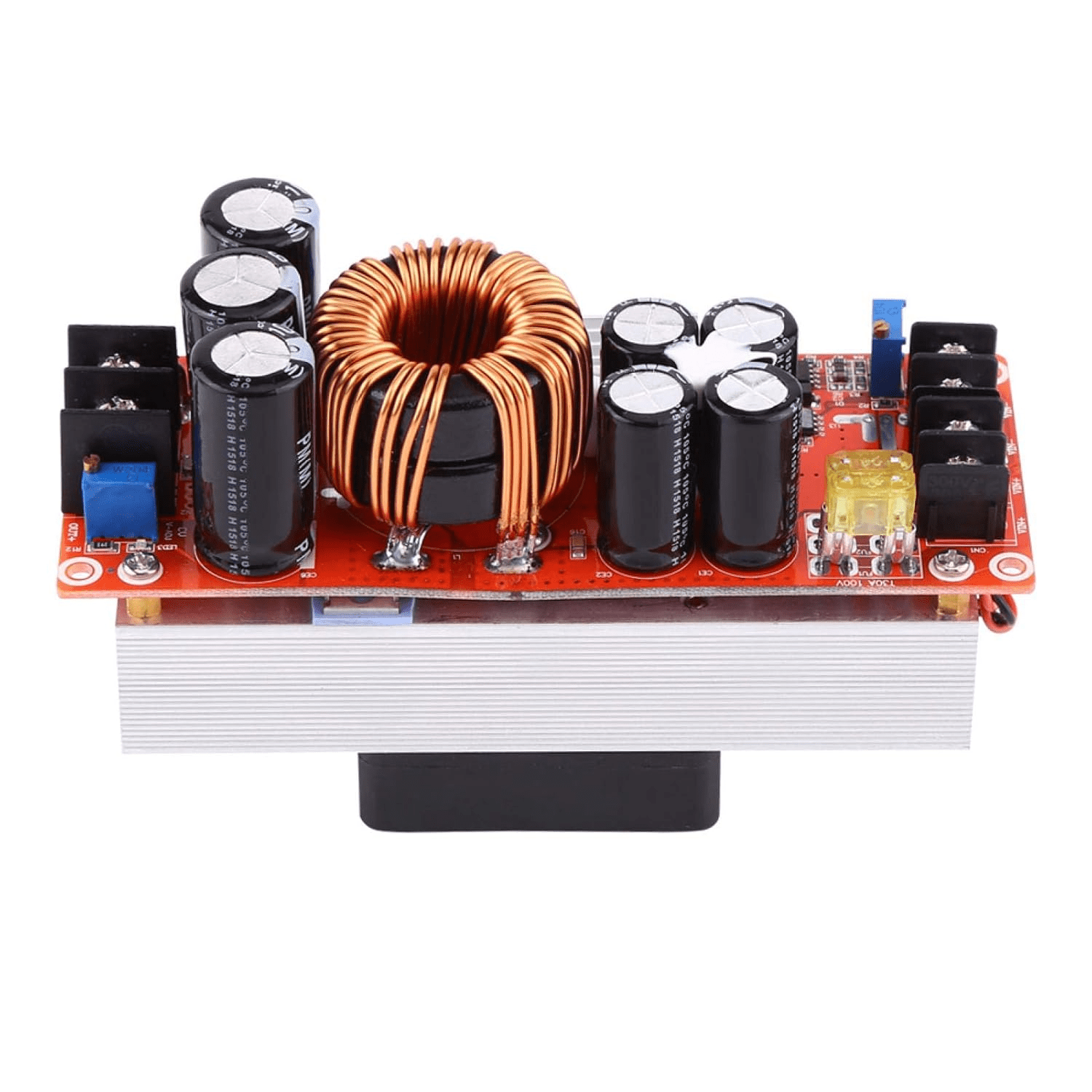

The power supply module uses double sendust magnets winded with 1.2mm copper wires
100V/210A low MOS with big power and current input, suitable for big power LED, motors
Support reverse input with MOS so there is no worry about wrong input wire and burn out power supply
Low voltage will module and battery against damage from over-discharge when use a storage battery as input

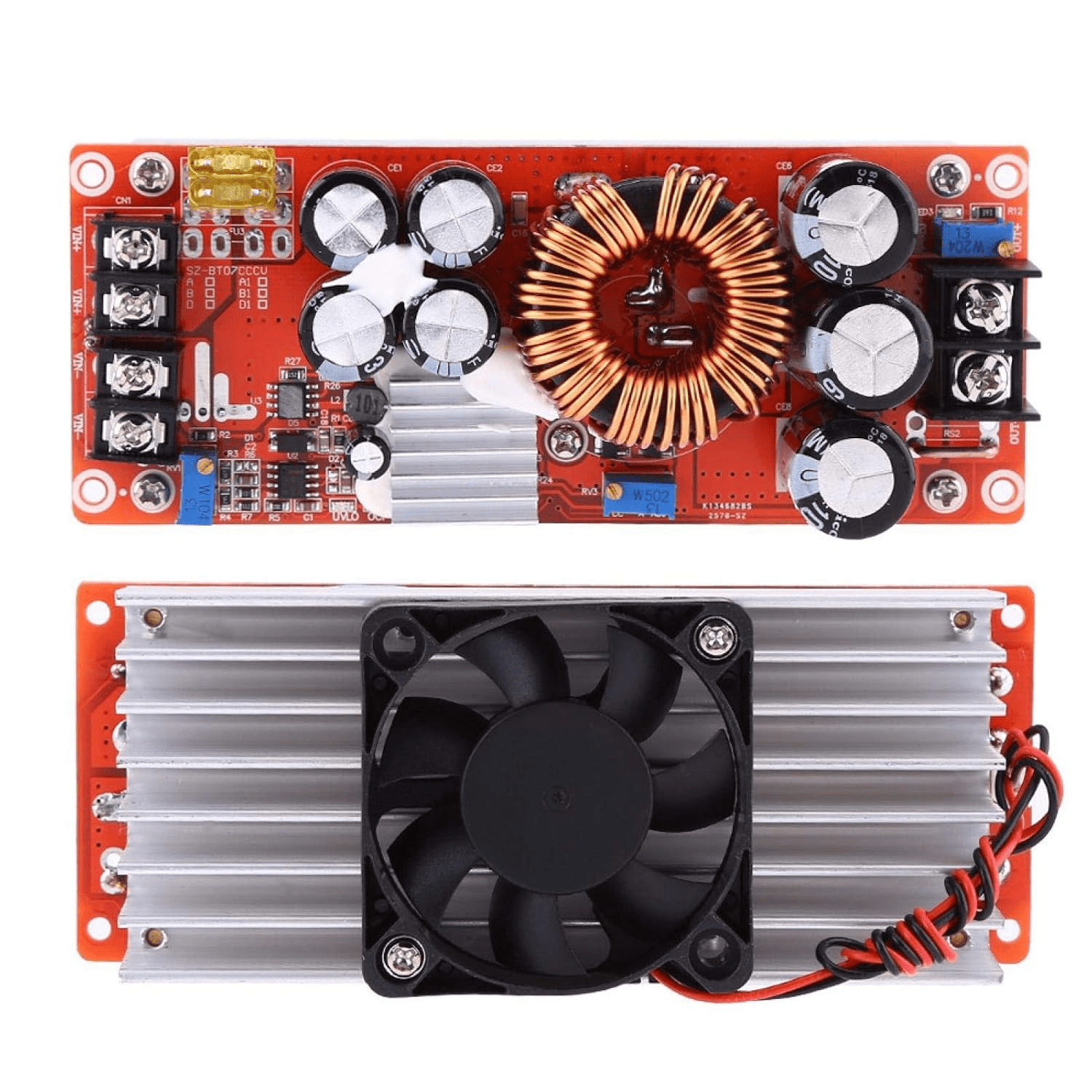

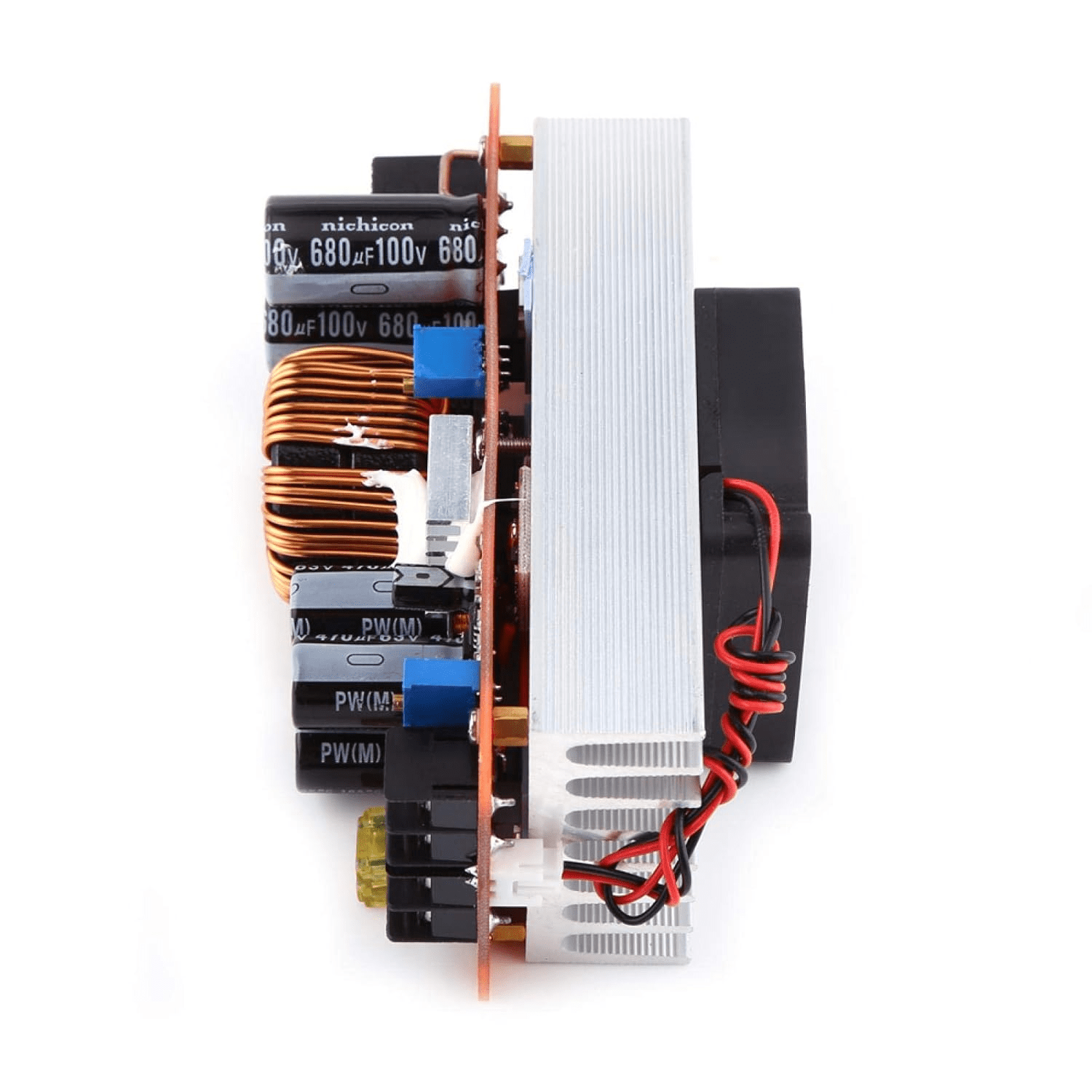

Thickened heatsink and intelligent temperature control cooling fan dissipate heat better
