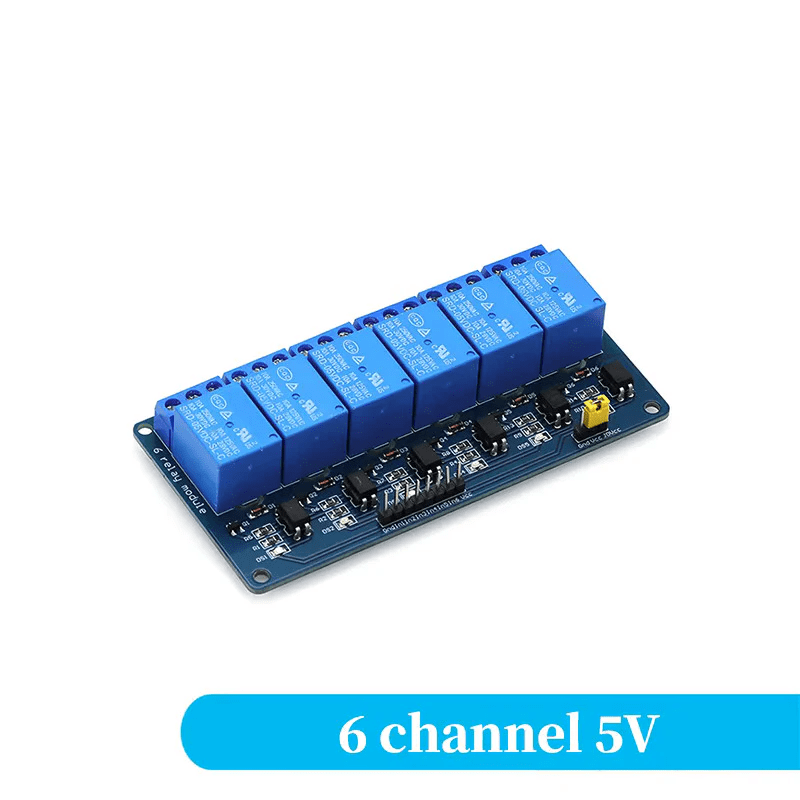

5V 6 Channel Relay Module with Low Level Trigger Optocoupler Blue Board
$1.73
♦ Specifications
Supply voltage VCC: 5 V
Activated with the low-status
Relay Coil voltage: 5 V
The maximum voltage of contacts: 250 VAC, 125 VDC*
Maximum current: 10 A
Optoelectronic insulation
6 LEDs signaling the activation of relays
The dimensions PCB: 10.3x 5.27cm
Weight: 82 g
Combine shipping available. Message us for shipping rates.
- Quality Assurance
- Fast Worldwide Shipping
- Buy with Confidence
Description
The module has six relays with a coil powered with a voltage of 5 V along with optoelectronic insulation. The system allows you to control actuators with microcontroller ports or any development kit.
The module allows control of the actuators consuming the current up to 10 A using the microcontroller’s ports or any development kit (including Arduino, Raspberry Pi, and STM32Discovery). Optical insulation separates the control signal from the part associated with the power of the relay, thereby providing work safety for the management system.
The product is compatible with Arduino
For relay control, sufficient is a digital control signal from the pins of the Arduino.
