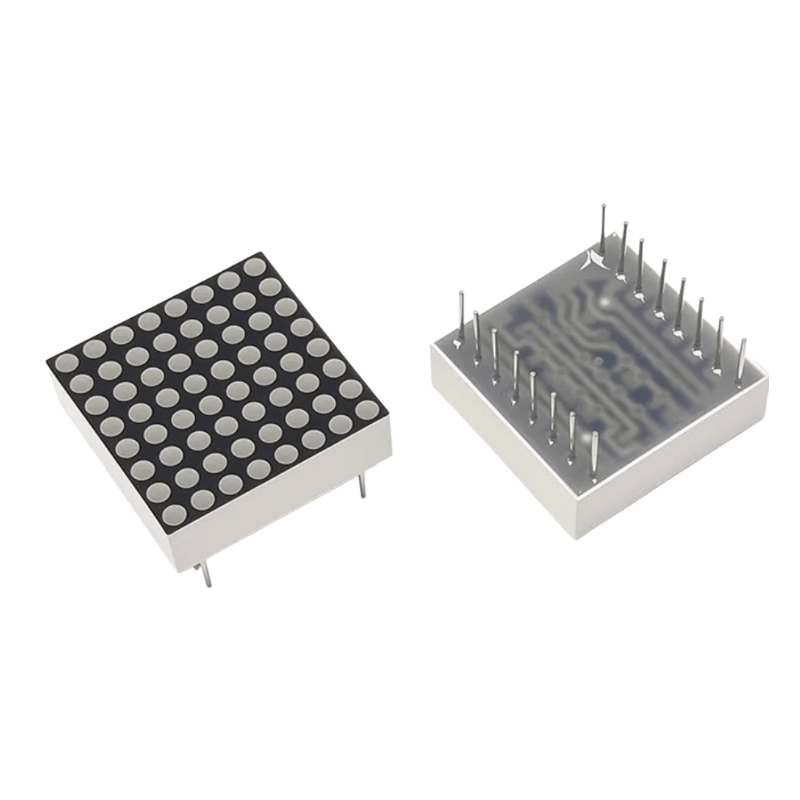

8×8 LED Matrix Display 1088AS / 1088BS

Create eye-catching digital displays, scrolling messages, animations, symbols, and visual effects with this high-quality 8×8 LED Matrix Display. Available in both 1088AS (Common Cathode) and 1088BS (Common Anode) configurations, this module is widely used in Arduino projects, educational electronics, industrial indicators, and DIY embedded systems.

Designed with 64 individual LEDs arranged in an 8×8 grid, the display allows flexible control of characters, icons, patterns, and animations while maintaining a compact footprint suitable for prototyping and production applications.

8×8 LED Matrix Display Features

This module combines reliable performance, excellent brightness, and broad compatibility with popular microcontroller platforms.

LED Dot Matrix Display Design

The LED Dot Matrix Display uses a standard 8×8 array configuration with a 2.54mm pin pitch, making it compatible with breadboards, development boards, and soldered circuit designs.

1088AS LED Matrix Configuration

The 1088AS LED Matrix features a Common Cathode structure, commonly used in Arduino and MCU projects that require individual row and column control.

1088BS LED Matrix Configuration

The 1088BS LED Matrix adopts a Common Anode design and provides an alternative wiring option for specific driver circuits and display controllers.

Arduino LED Matrix Module Applications

Whether you’re building a learning project or a commercial prototype, this module offers exceptional flexibility.

8×8 LED Matrix Display for Arduino

Perfect for displaying scrolling text, custom symbols, counters, notifications, and simple animations in Arduino-based projects.

1088AS Common Cathode LED Matrix

Suitable for educational demonstrations, digital clocks, game projects, and embedded user interfaces.

1088BS Common Anode LED Matrix

Frequently used with matrix driver ICs and custom display control systems requiring common-anode architecture.

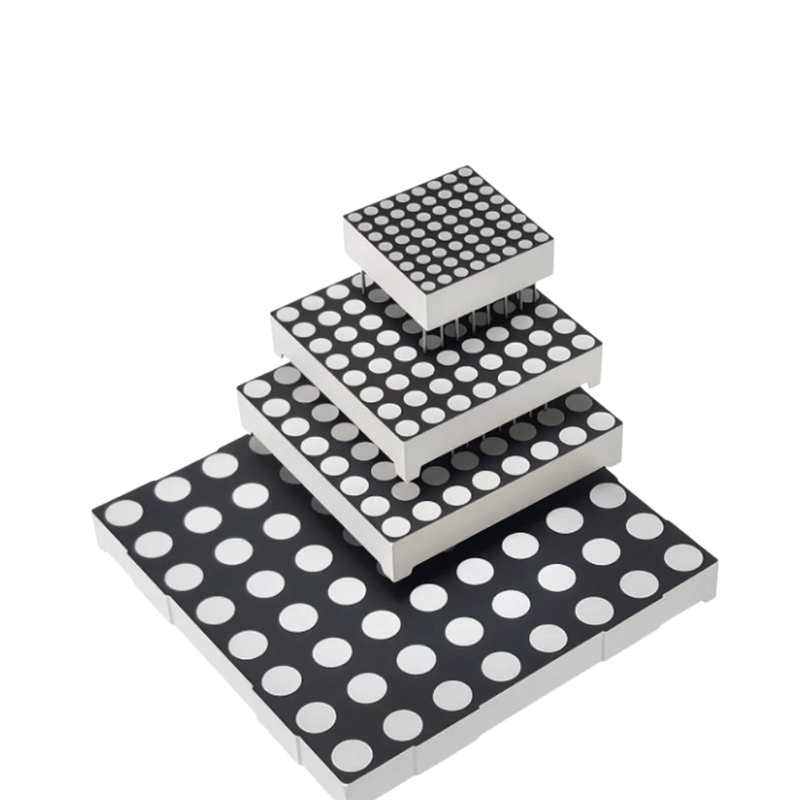

LED Matrix Module for DIY Electronics

Ideal for makers, students, engineers, and electronics enthusiasts creating interactive displays and visual indicators.

Available Variants

Choose the version that best matches your application requirements.

Common Cathode (1088AS)

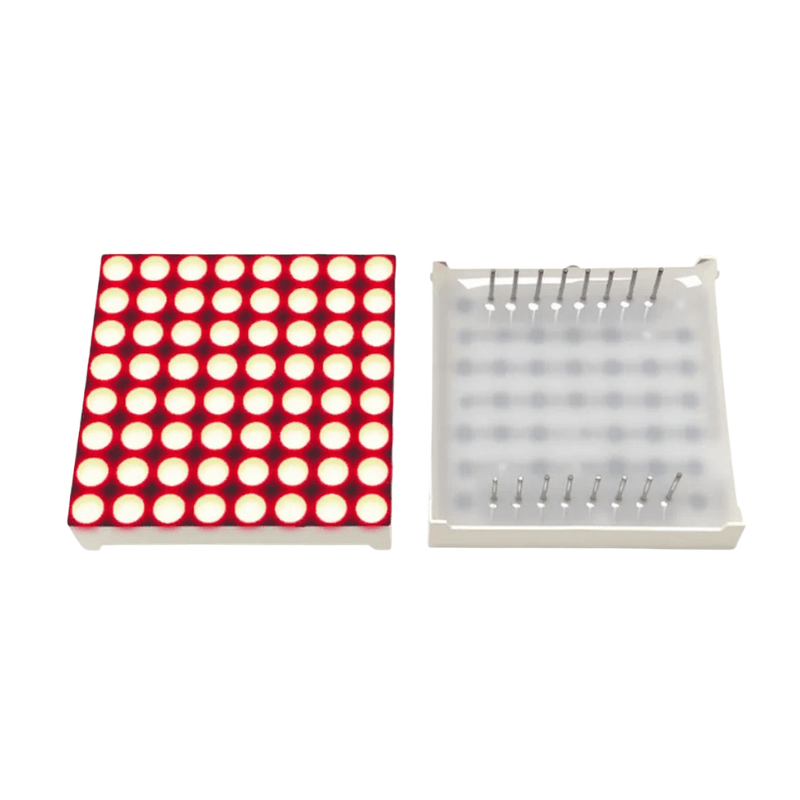

• Red
• Green
• Yellow

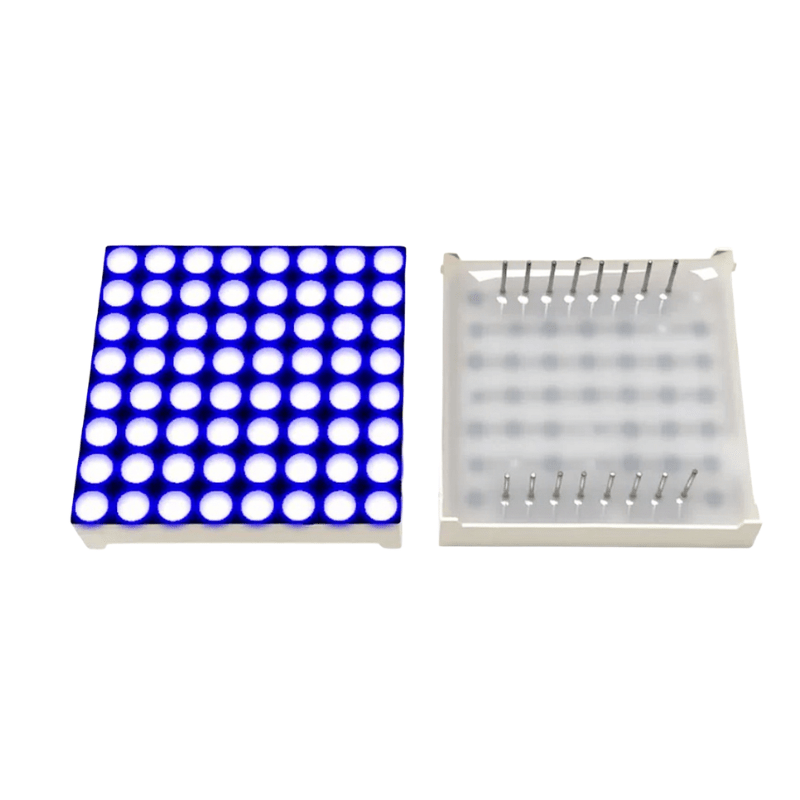

• Blue

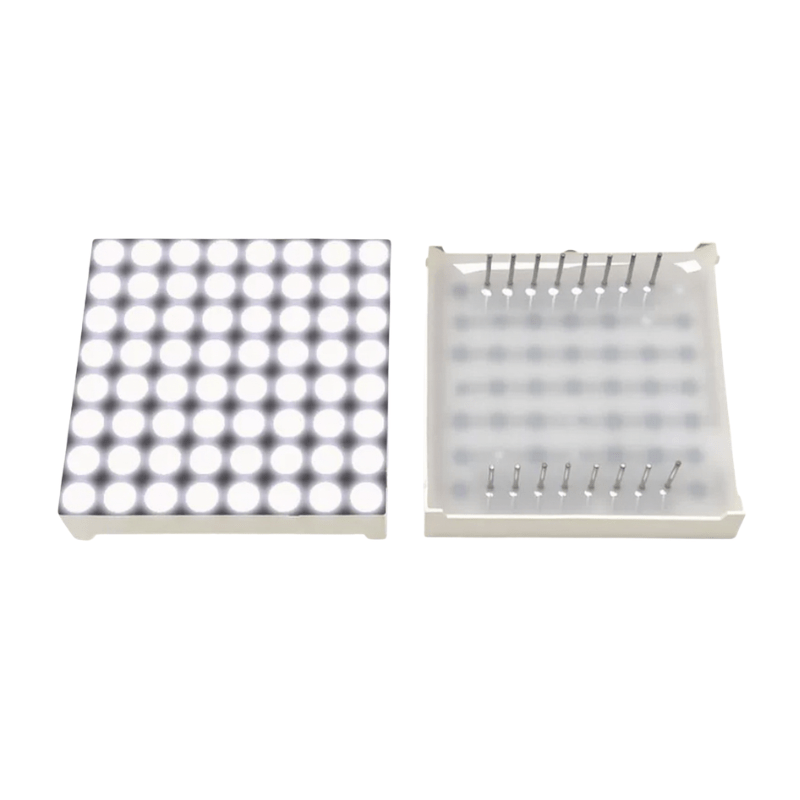

• White

Common Anode (1088BS)

• Red

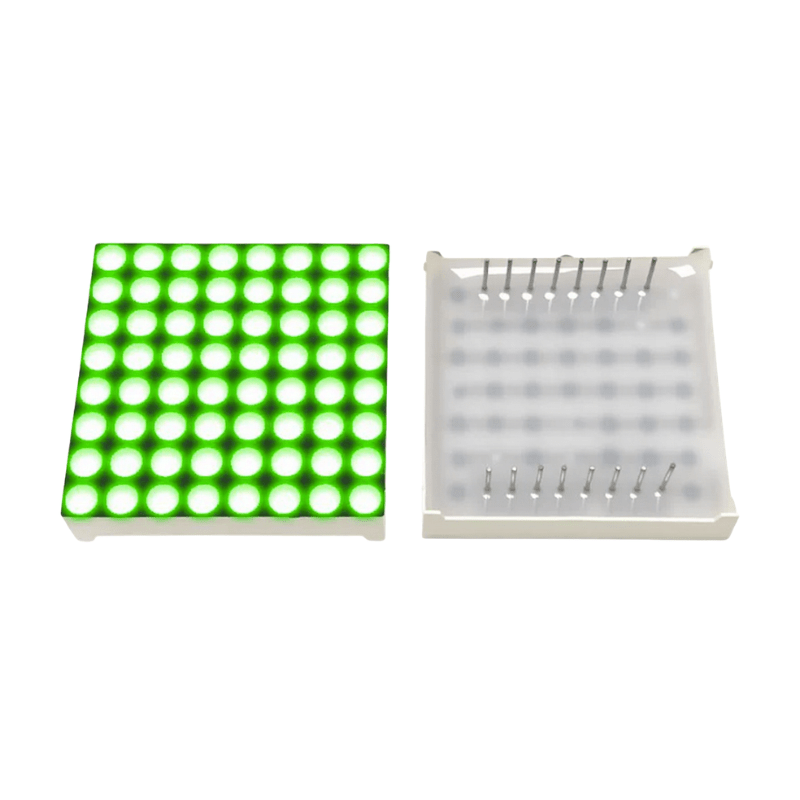

• Green

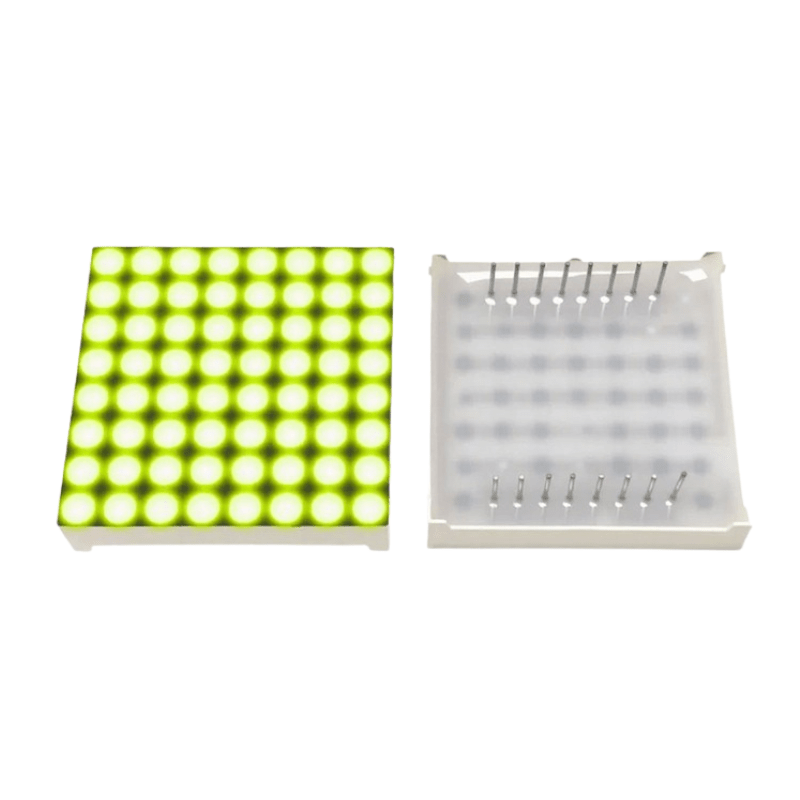

• Yellow
• Blue
• White

Technical Specifications

• Display Type: LED Matrix Display
• Matrix Size: 8 × 8
• Total LEDs: 64

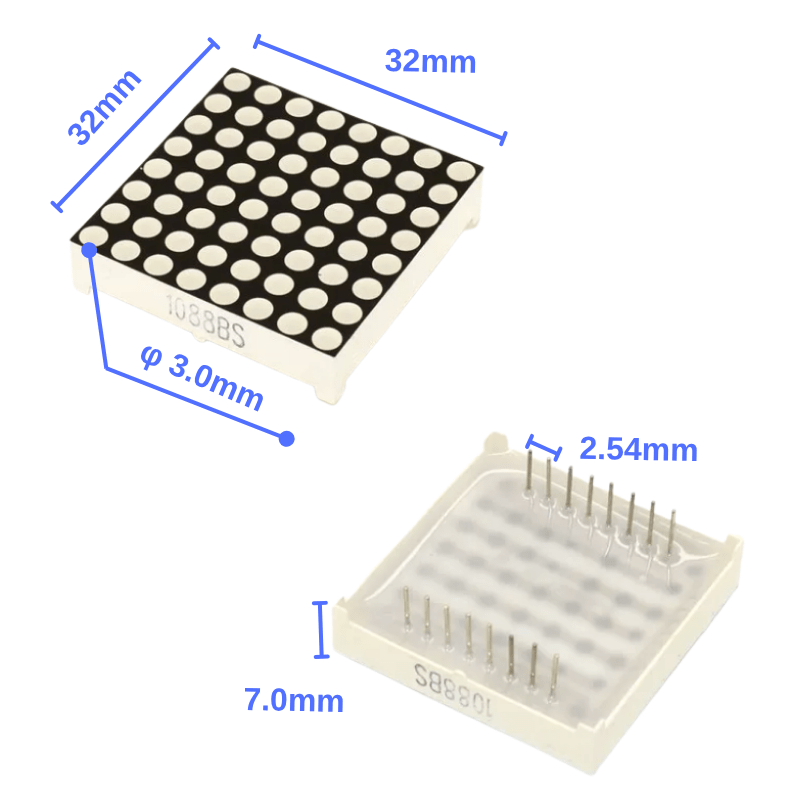

• Module Size: 32 × 32 mm
• LED Diameter: 3.0 mm
• Pin Pitch: 2.54 mm
• Height: 7.0 mm
• Forward Current: 20mA
• Peak Current: 100mA
• Reverse Voltage: 5V
• Reverse Current: 20μA
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Why Choose This 8×8 LED Matrix Display?

• Available in Common Cathode and Common Anode versions
• Five LED color options
• Standard 2.54mm pin spacing
• Compatible with Arduino and MCU platforms
• Suitable for multiplexing applications
• Excellent brightness and visibility
• Reliable performance for long-term use
• Ideal for educational and professional projects

Video Tutorial

Learn how to drive and program an 8×8 LED Matrix Display:

https://www.youtube.com/watch?v=X9tsfOeYnAU01403

This tutorial demonstrates wiring, multiplexing, character generation, and Arduino programming using the same style of 1088-series 8×8 LED matrix display.

Related Products

Looking for easier control?

Explore our MAX7219 LED Matrix Module for simplified wiring and advanced display control.

Frequently Asked Questions

What is the difference between 1088AS and 1088BS?

1088AS is a Common Cathode LED matrix, while 1088BS is a Common Anode LED matrix. Choose the version that matches your driver circuit design.

Is this module compatible with Arduino?

Yes. The display can be controlled using Arduino boards and popular driver ICs such as MAX7219, HT16K33, and similar matrix controllers.

Can I display letters and scrolling text?

Absolutely. The 8×8 matrix format is widely used for characters, symbols, animations, counters, and scrolling messages.
