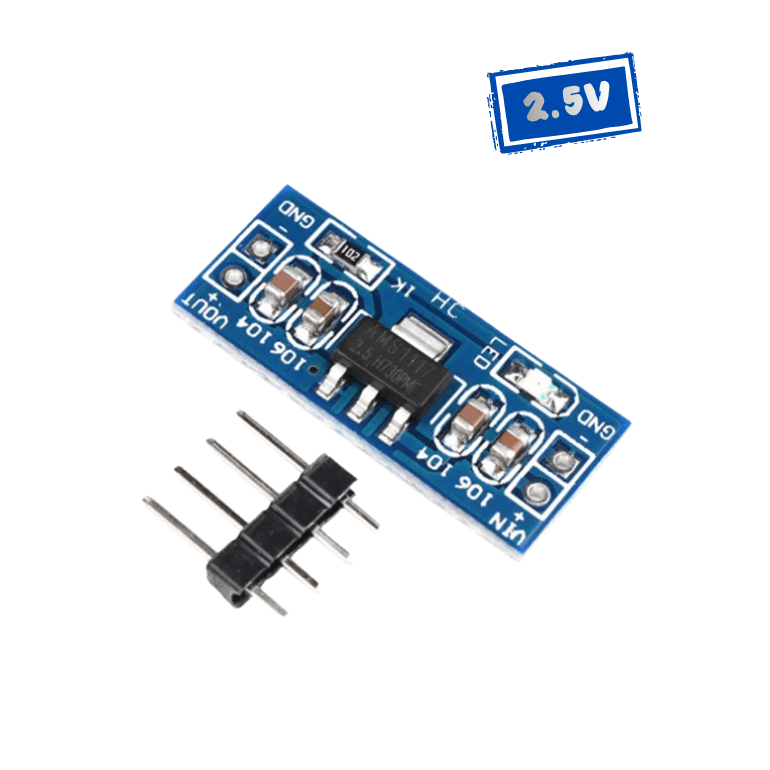

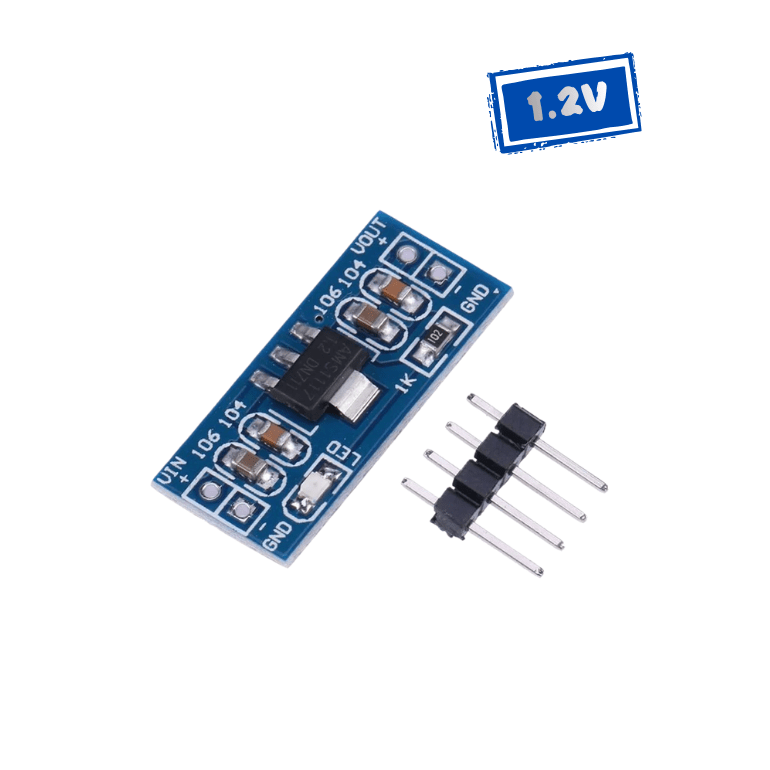

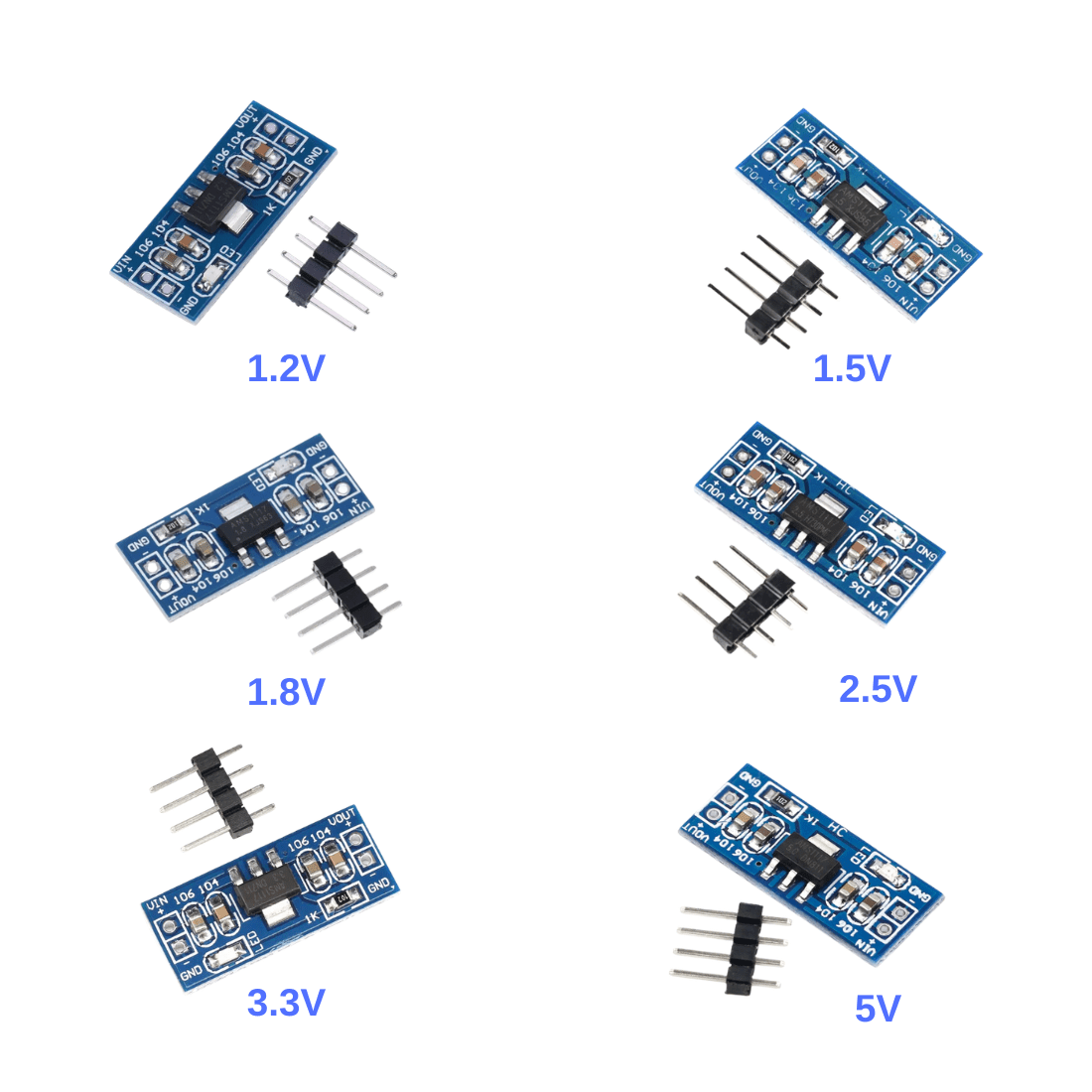

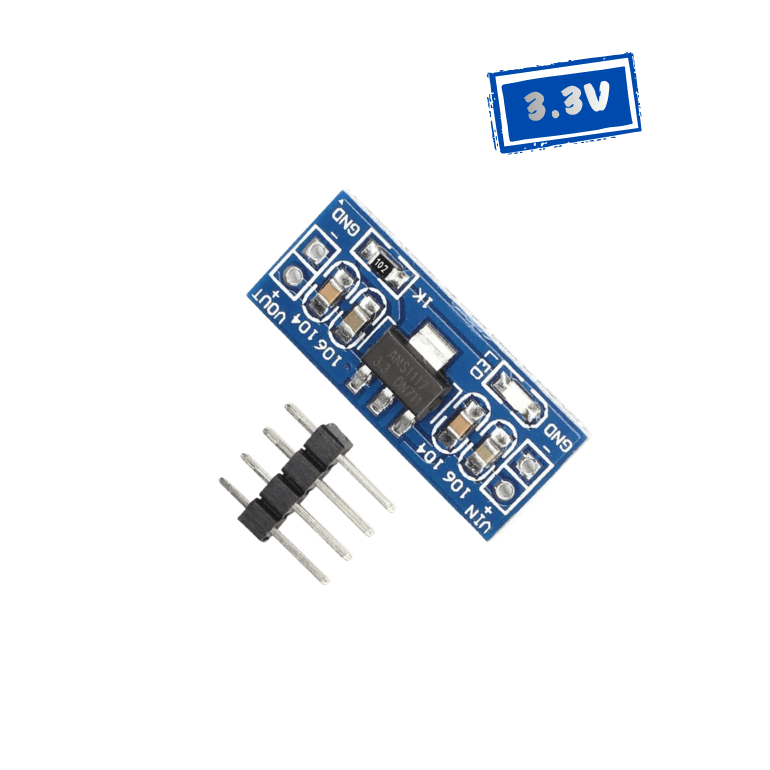

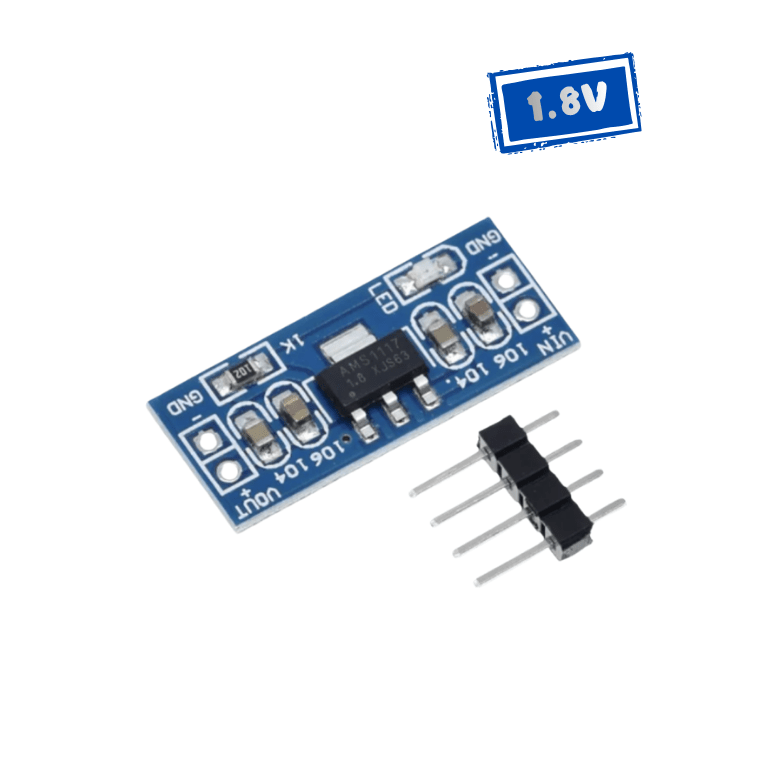

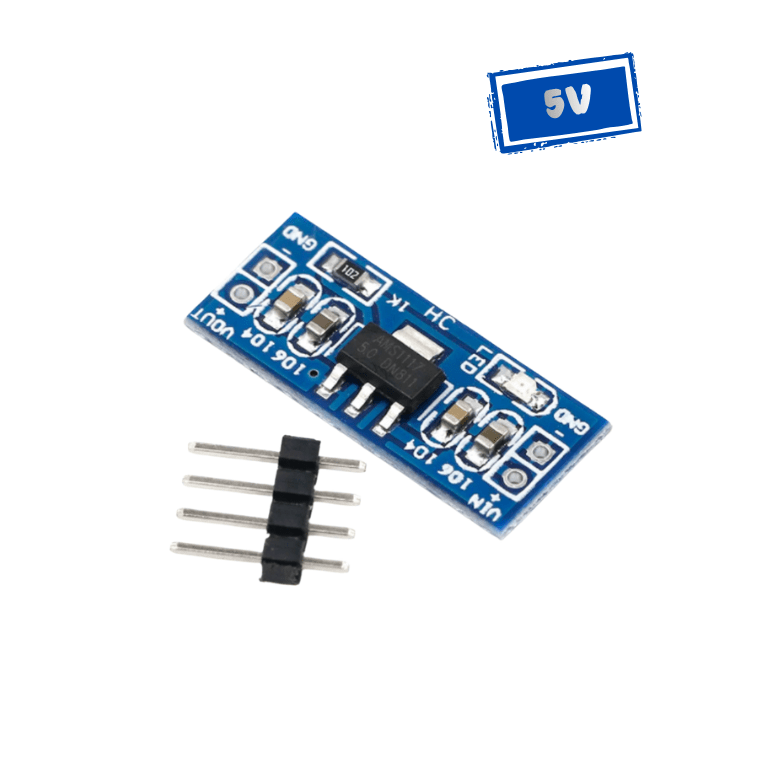

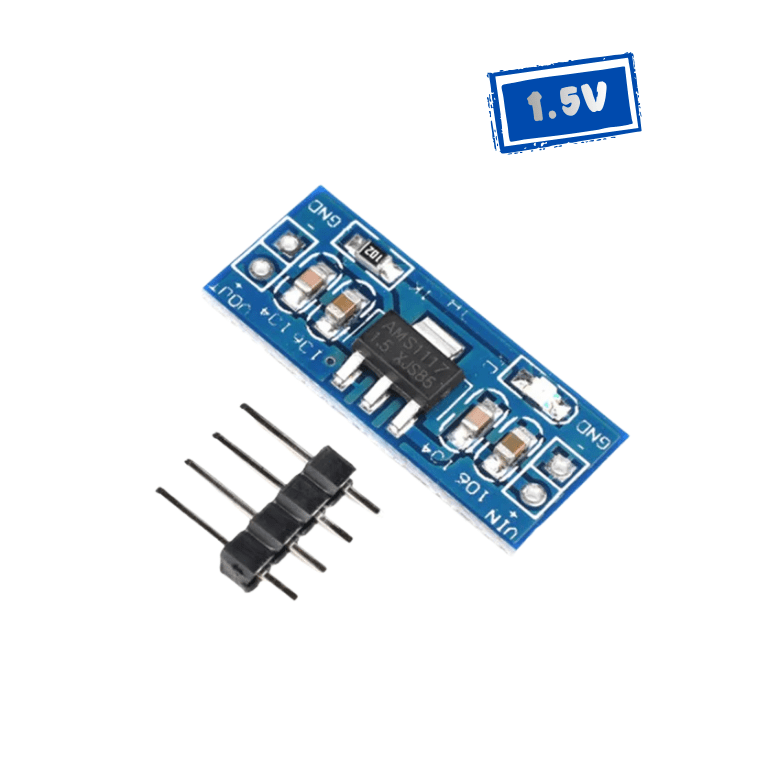

AMS1117-1.2V/1.5V/1.8V/2.5V/3.3V/5V Step-Down Power Module

Description

This AMS1117 Voltage Regulator Module offers a compact and highly efficient solution for diverse electronic projects. It delivers a selection of stable output voltages—including 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V—from an input voltage range of 2.75V to 12V. With support for a maximum output current of 800mA, this module is perfectly suited for powering single-chip designs and integrated embedded systems.

Key Features
Onboard AMS1117 chip.
Onboard power indicator to indicate power is turned on: Red LED.
Output voltage interface, connection to facilitate the experimental.
Specially designed two pin mounting holes, can be directly fixed on the whole expansion board for experiments. Small Compact Size, 4Pin Type, Breadboard Friendly.
2P single row pin input and output for easy connection
Dual-panel design, the layout is nice
Application:
Powering Microcontrollers: Suitable for ESP8266, ESP32, STM32, and other microcontrollers.
IoT and Embedded Systems: Ideal for powering Wi-Fi and Bluetooth modules.
Supplying 3.3V Sensors: Supports devices like DHT11, BMP280, MPU6050, and similar sensors.
Powering SD Card Modules: Reliable supply for SD card operations.
Driving LEDs: Works with low-power LEDs and 3.3V LED modules.
Breadboard and Prototyping: Acts as a convenient power supply for experimental setups.
Voltage Level Shifting: Compatible with 3.3V logic components.
Battery-Powered Systems: Converts Li-ion battery voltage to 3.3V efficiently.
Communication Modules: Powers modules like GPS, LoRa, and Zigbee.
Consumer Electronics: Fits portable devices and MP3 players.
