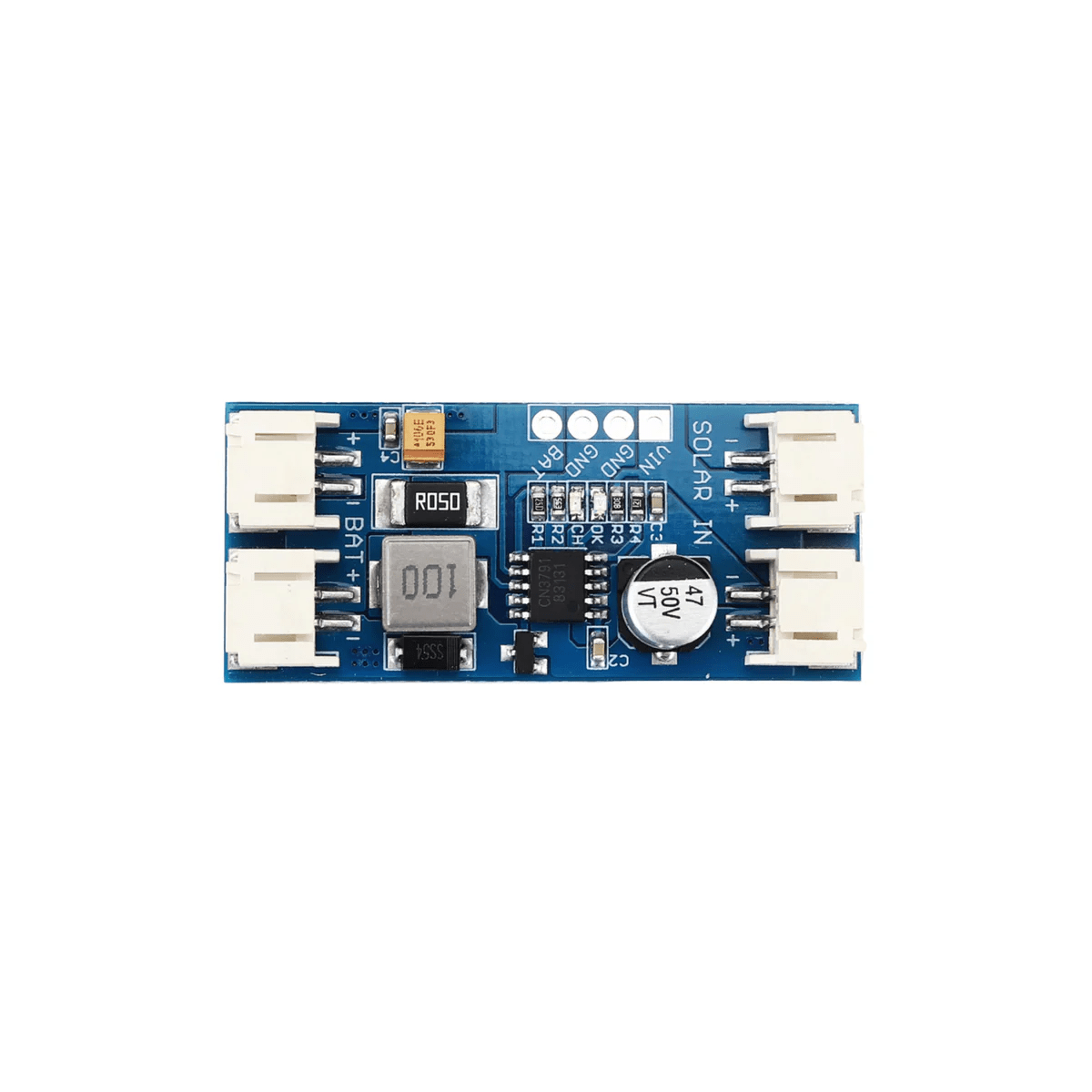

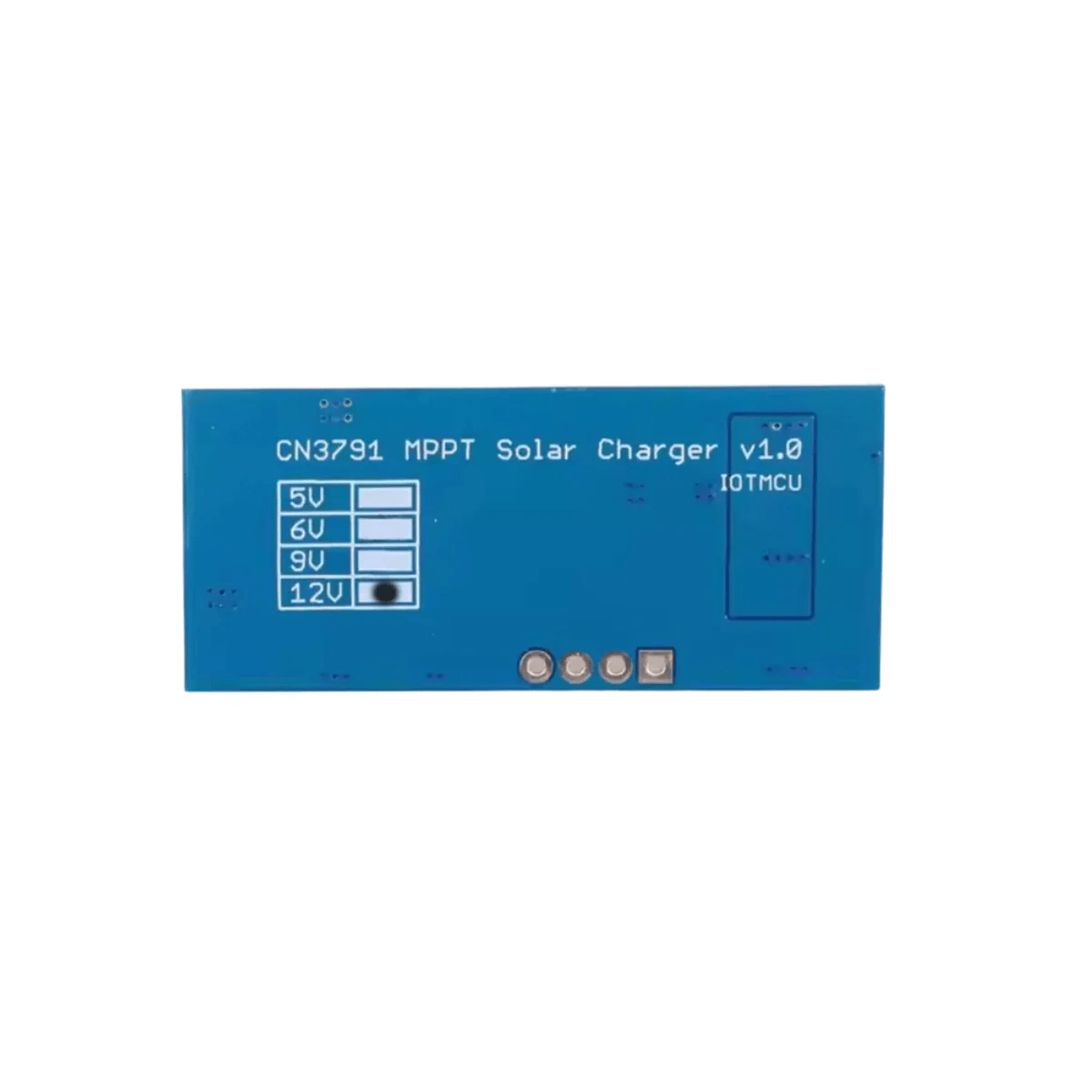

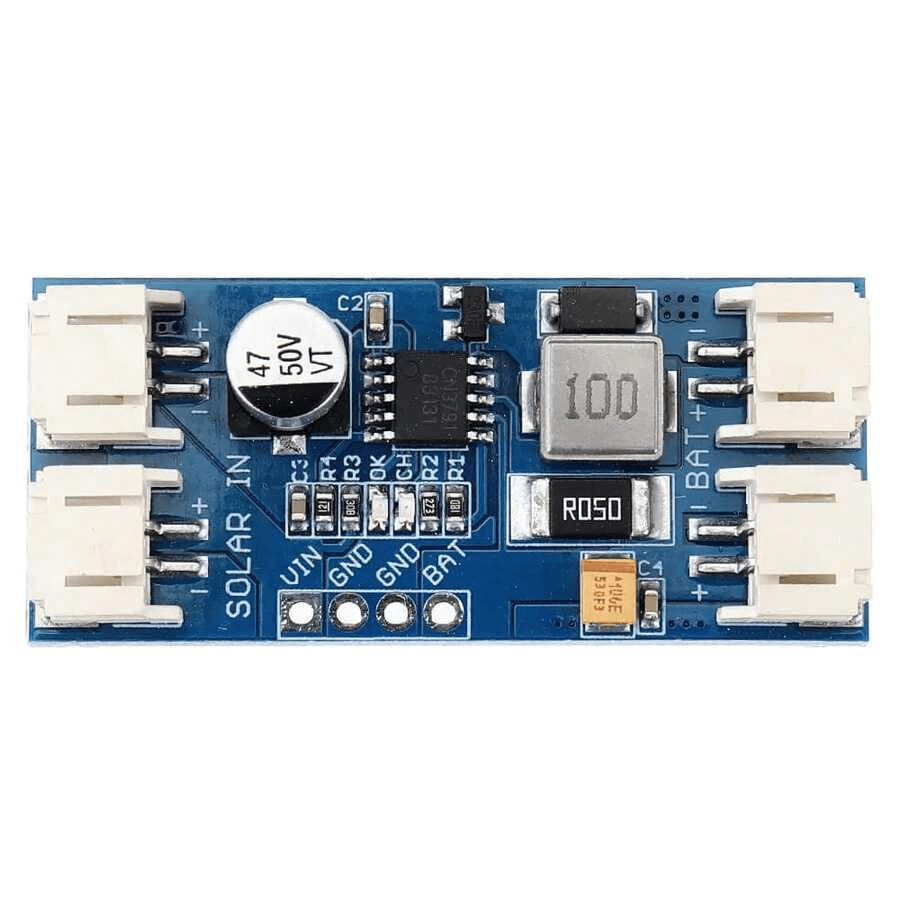

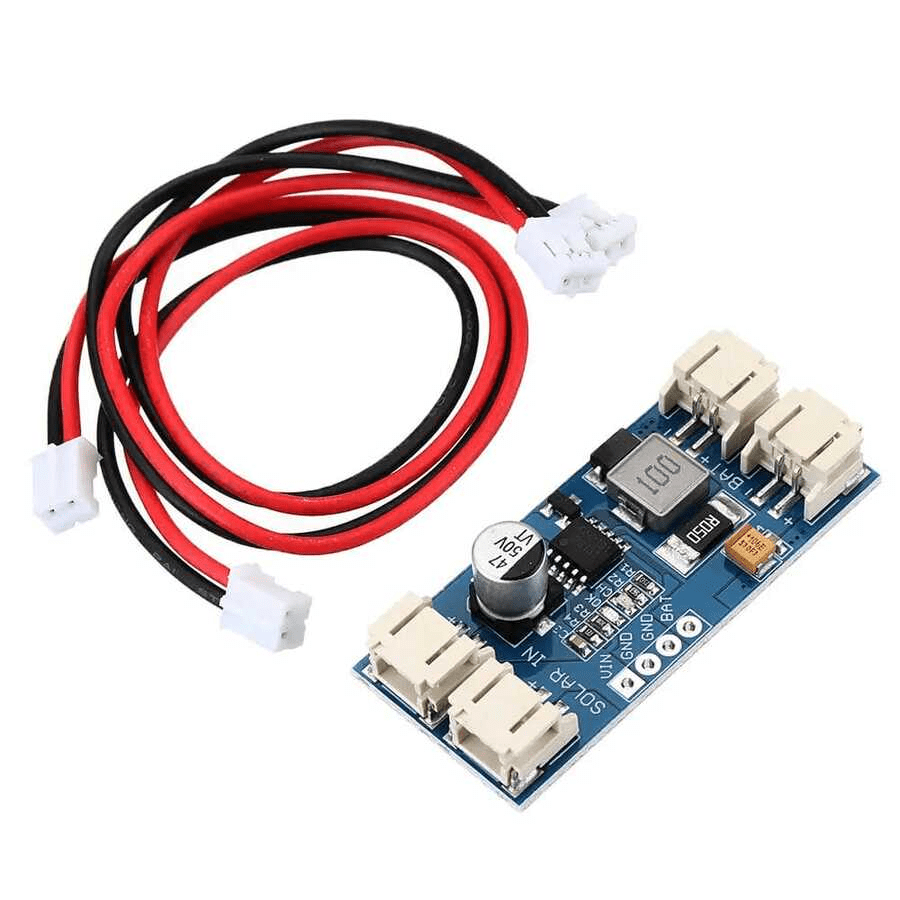

CN3791 MPPT Solar Charger Module

Description

The CN3791 6V MPPT Solar Charger Module is an excellent choice for anyone looking to harness solar energy efficiently to charge lithium-ion batteries. Its high efficiency, adjustable charging current, and built-in protection features make it a reliable and versatile component for a wide range of solar-powered projects.

MPPT Technology: Ensures maximum power extraction from solar panels, improving charging efficiency.
High Efficiency: Up to 98% MPPT efficiency for faster and more efficient charging.
Adjustable Charging Current: Allows customization of charging current up to 3A to suit different battery capacities.

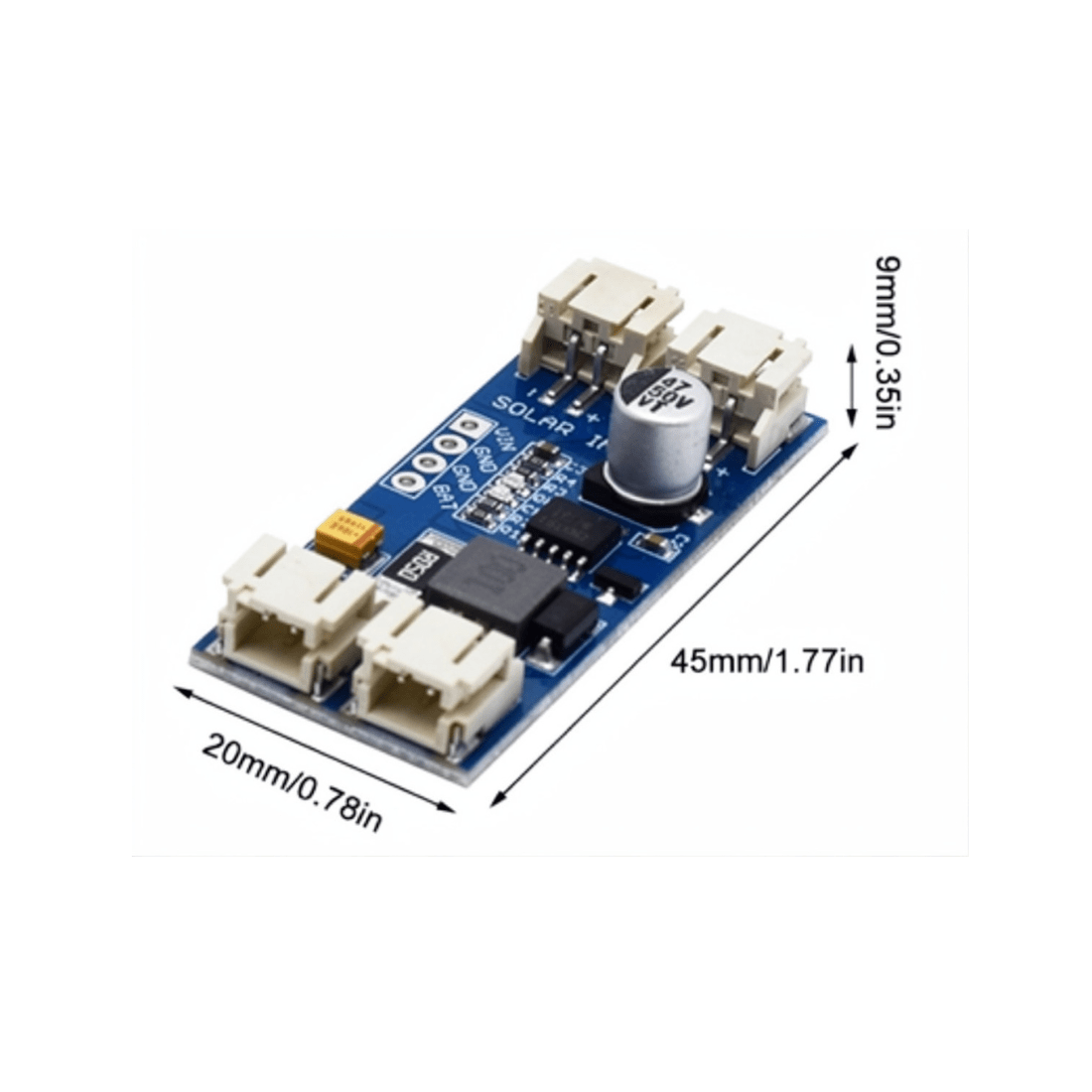

Compact Design: Small form factor for easy integration into various projects.
Protection Features: Built-in overcurrent, overvoltage, and thermal protection to safeguard the module and connected batteries.
Wide Input Voltage Range: Supports a wide range of solar panel voltages from 6V to 30V.

Usage Tips:

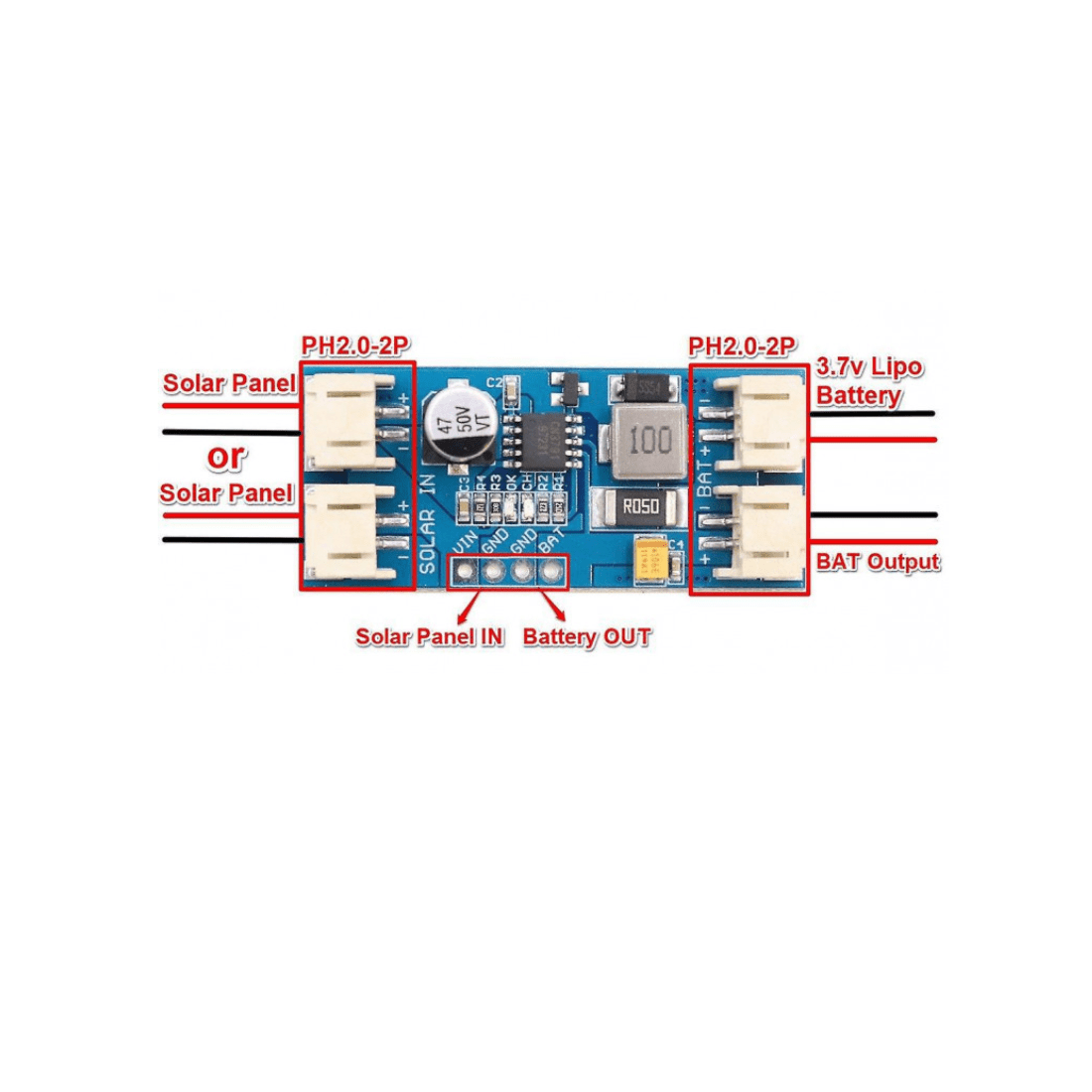

Connect the Solar Panel:
Connect the positive and negative terminals of the solar panel to the input terminals of the CN3791 module.
Connect the Battery:
Connect the positive and negative terminals of the lithium-ion battery to the output terminals of the module.
Adjust the Charging Current:
Use a suitable resistor to set the desired charging current (refer to the module’s datasheet for resistor values and corresponding currents).
Monitor the Charging Process:
Ensure the module and battery are properly connected and monitor the charging process. The module will automatically optimize the charging efficiency using MPPT technology.
Protection Features:
The module includes built-in protection features. Ensure the operating conditions are within the specified ranges to avoid triggering protection mechanisms.

Applications:
Solar-powered battery charging
Renewable energy systems
Portable solar chargers
Off-grid solar systems
DIY solar projects
Remote sensing equipment
