Description

Double Sided FR4 Perfboard for Professional Electronics Prototyping

The Double Sided FR4 Perfboard is a reliable solution for electronics engineers, makers, students, and product developers who require a durable platform for soldered circuit construction. Manufactured from high-quality FR4 fiberglass material, this board provides excellent mechanical strength, heat resistance, and electrical insulation for a wide range of electronic applications.

Unlike temporary solderless breadboards, a perfboard allows components to be permanently mounted and soldered, creating stronger and more reliable circuits suitable for long-term use. The double-sided copper layout offers greater flexibility for routing connections and simplifies complex circuit assembly.

Available in multiple sizes, this perfboard series supports everything from compact sensor modules to large electronics projects.

---

Why Choose an FR4 Perfboard Instead of Standard Phenolic Boards?

Many low-cost prototype boards use phenolic paper substrates that can warp, crack, or delaminate under heat. FR4 fiberglass boards offer significantly better durability and performance.

Key Advantages

• High-quality FR4 fiberglass construction
• Double-sided solderable design
• Excellent heat resistance
• Strong mechanical durability
• Stable electrical insulation
• Long service life
• Suitable for professional applications

These characteristics make FR4 boards the preferred choice for electronics engineers and serious makers.

---

 Double-Sided Design Improves Circuit Routing

This Double Sided FR4 Perfboard come with double-sided construction provides solderable pads on both sides of the board, giving users greater flexibility when creating custom circuits.

Benefits include:

• Easier signal routing
• Cleaner layouts
• Reduced jumper wire usage
• Improved project appearance
• Better support for complex designs

Whether building a custom controller, sensor interface, robotics system, or repair solution, the additional routing options simplify development.

---

Standard 2.54mm Pitch for Maximum Compatibility

This double Sided FR4 Perfboard uses the industry-standard 2.54mm (0.1 inch) hole spacing found on most electronic components.

Compatible devices include:

• Arduino boards
• ESP32 modules
• ESP8266 modules
• Raspberry Pi accessories
• DIP ICs
• Pin headers
• Terminal blocks
• Sensors
• Relays
• LEDs

This universal spacing allows seamless integration with commonly used electronic components and development platforms.

---



This Double Sided FR4 Perfboard Ideal for Prototyping, Repairs, and Permanent Projects

A Prototype PCB Board is one of the most versatile tools in electronics development.

Common applications include:

• Arduino projects
• Robotics systems
• Home automation devices
• Sensor modules
• STEM education
• Electronic repairs
• Product validation
• Custom PCB alternatives
• DIY electronics projects

Many developers use perfboards as a cost-effective bridge between breadboard prototypes and custom-manufactured PCBs.

---

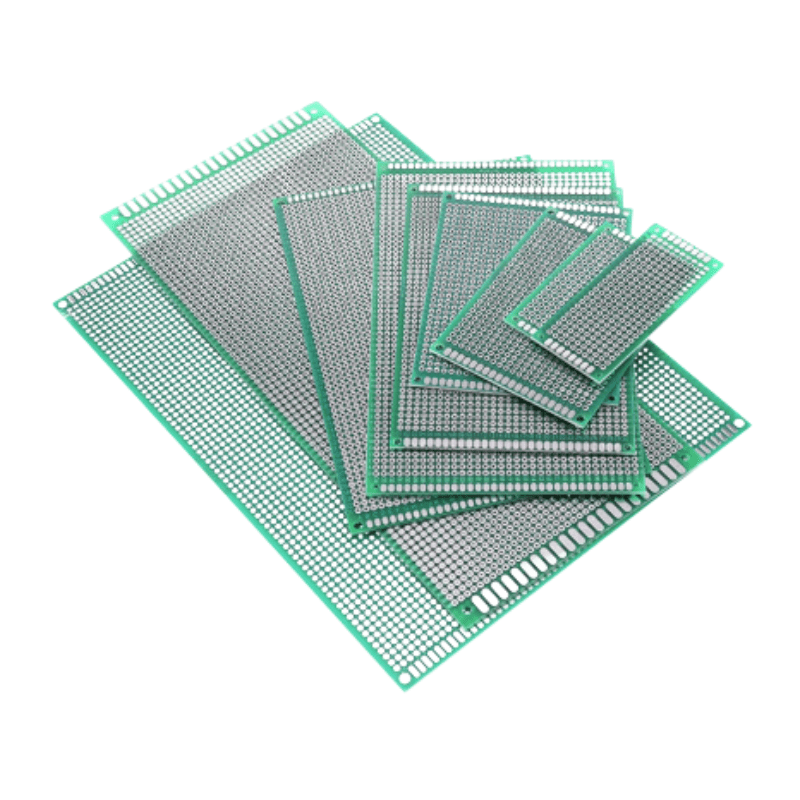

Multiple Sizes Available for Every Project

To support different development requirements, this product is available in multiple dimensions:

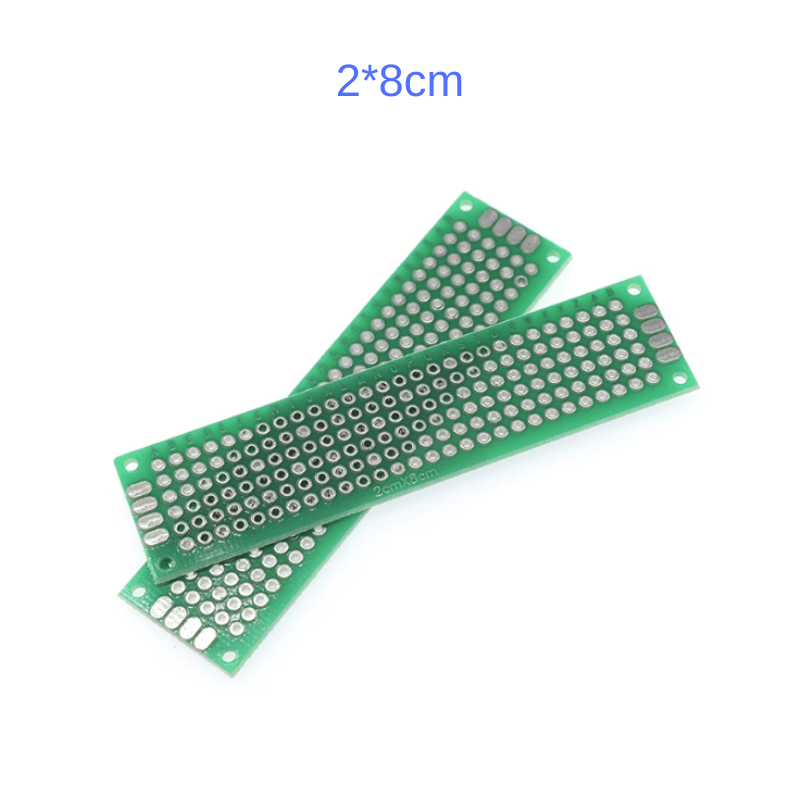

• 2 × 8 cm

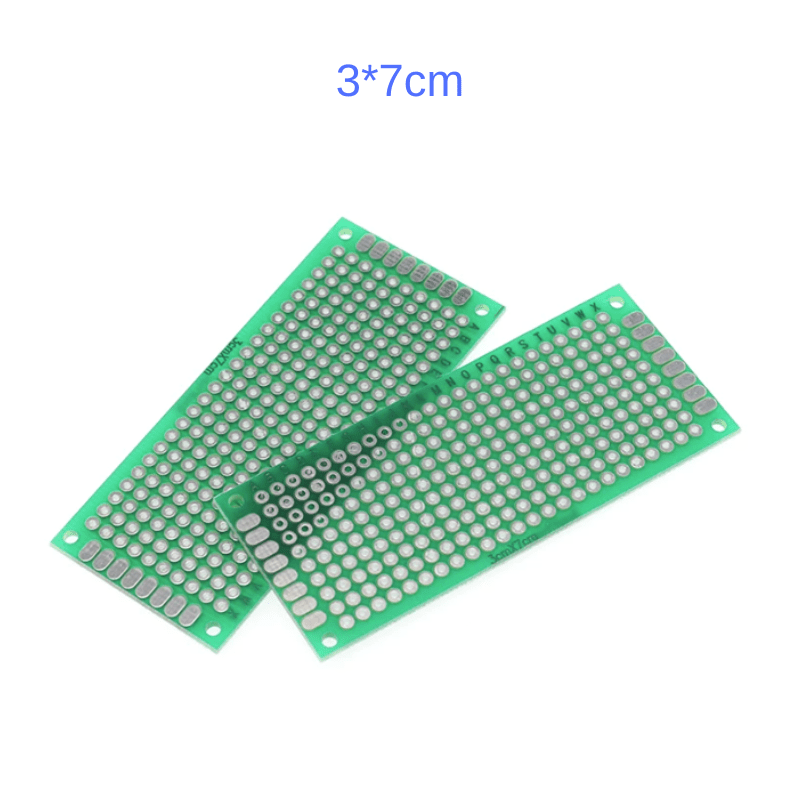

• 3 × 7 cm

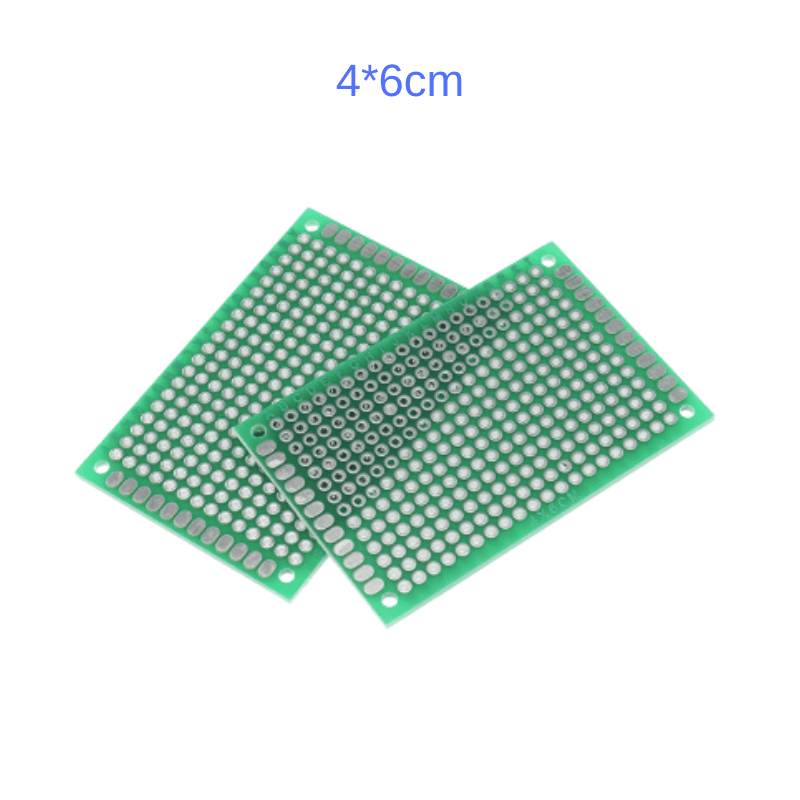

• 4 × 6 cm

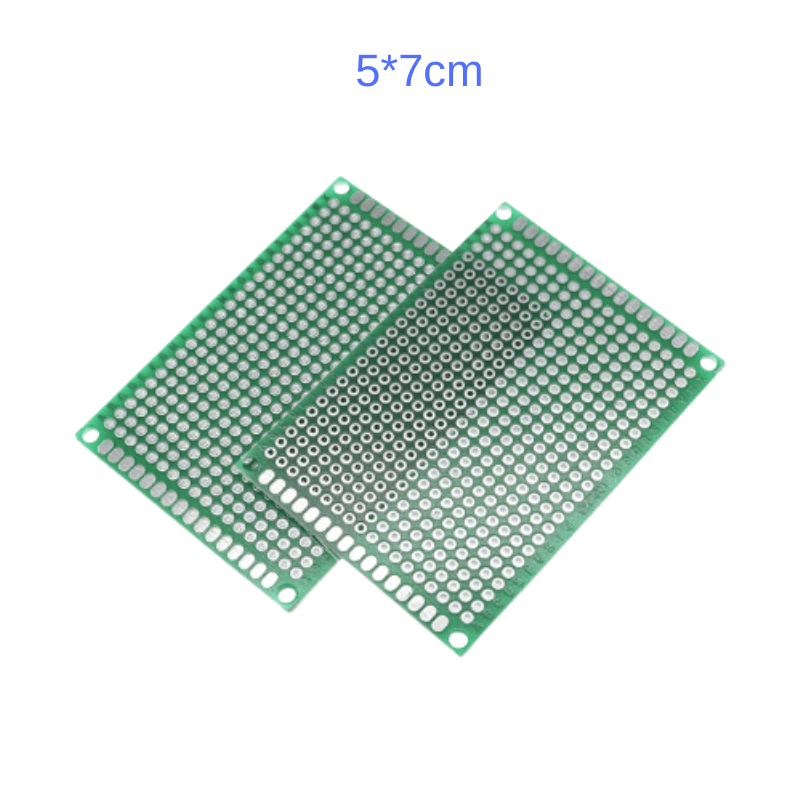

• 5 × 7 cm

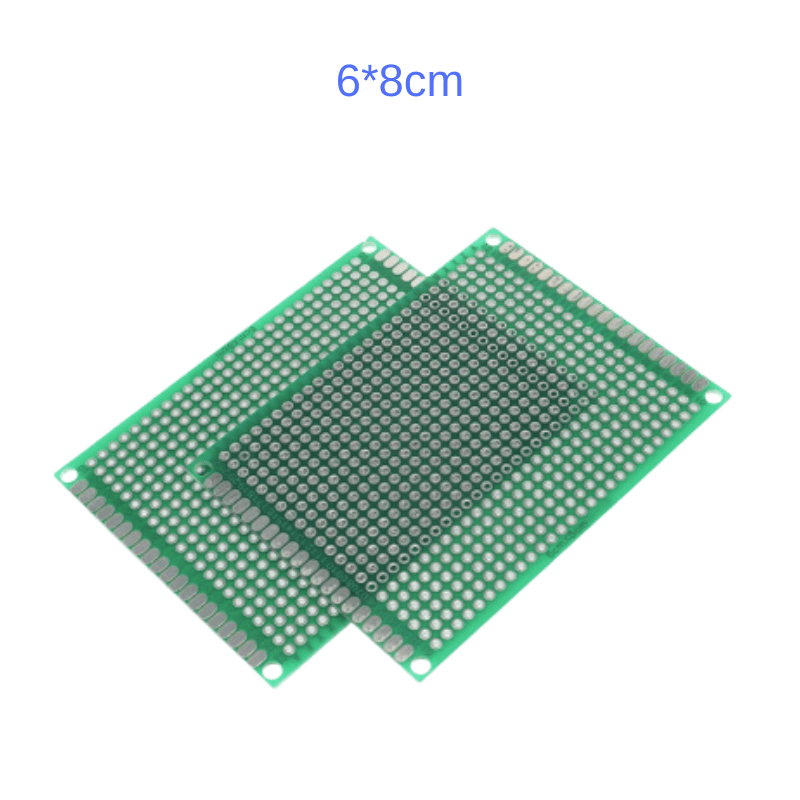

• 6 × 8 cm

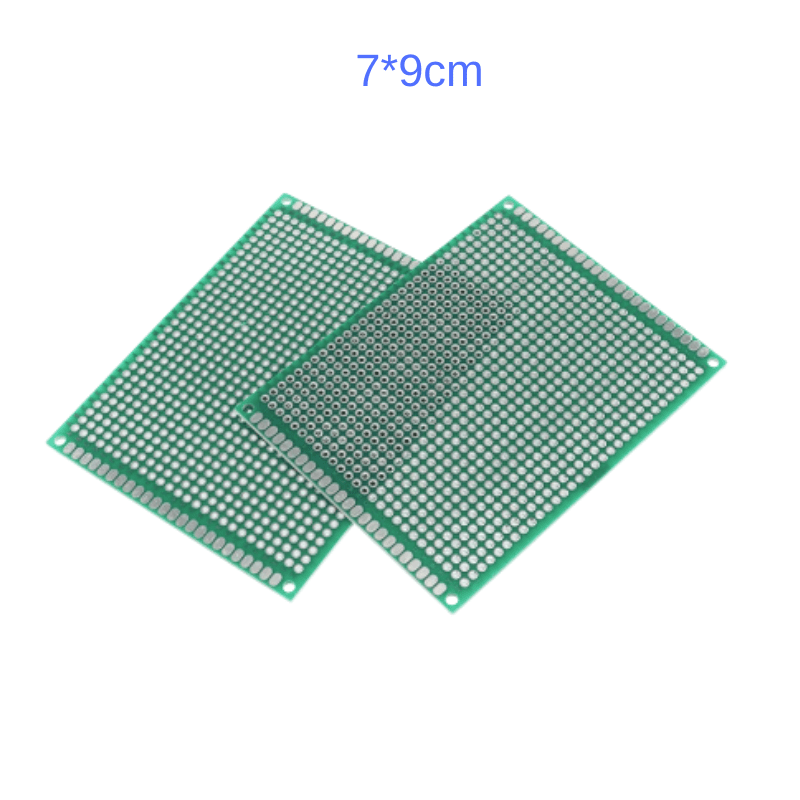

• 7 × 9 cm

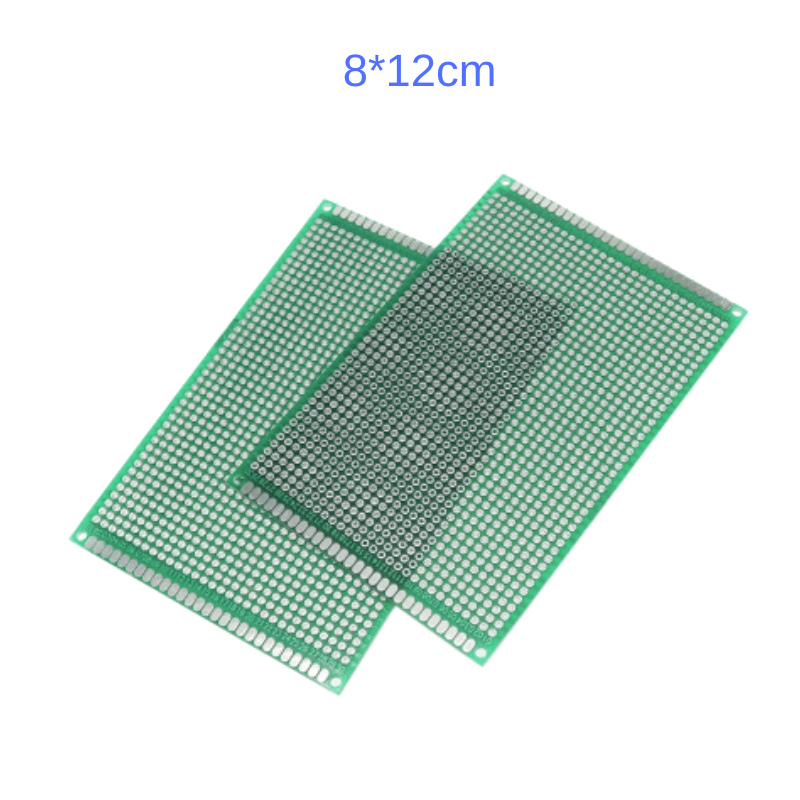

• 8 × 12 cm

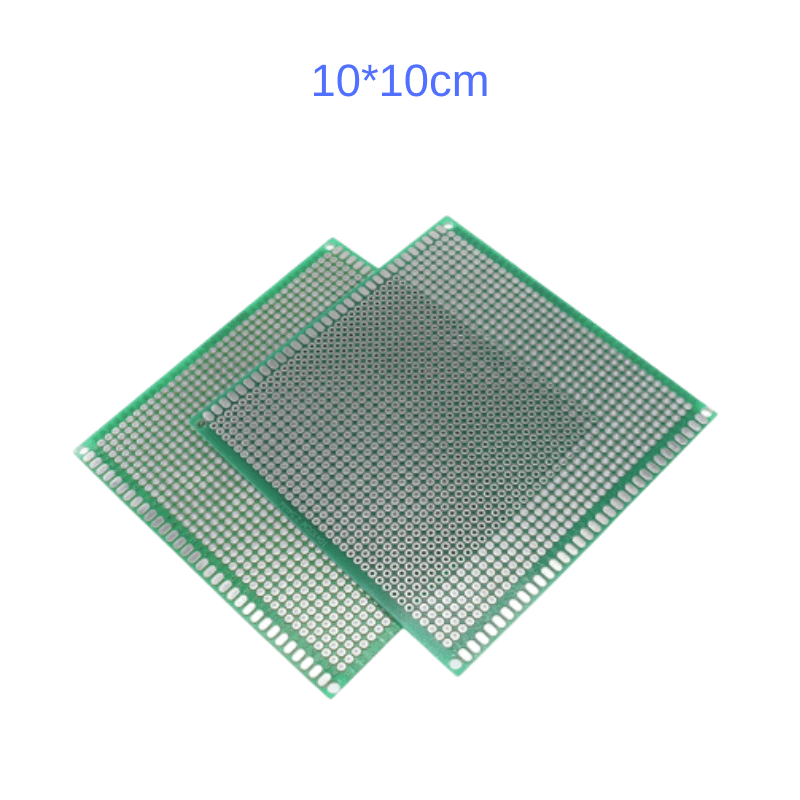

• 10 × 10 cm

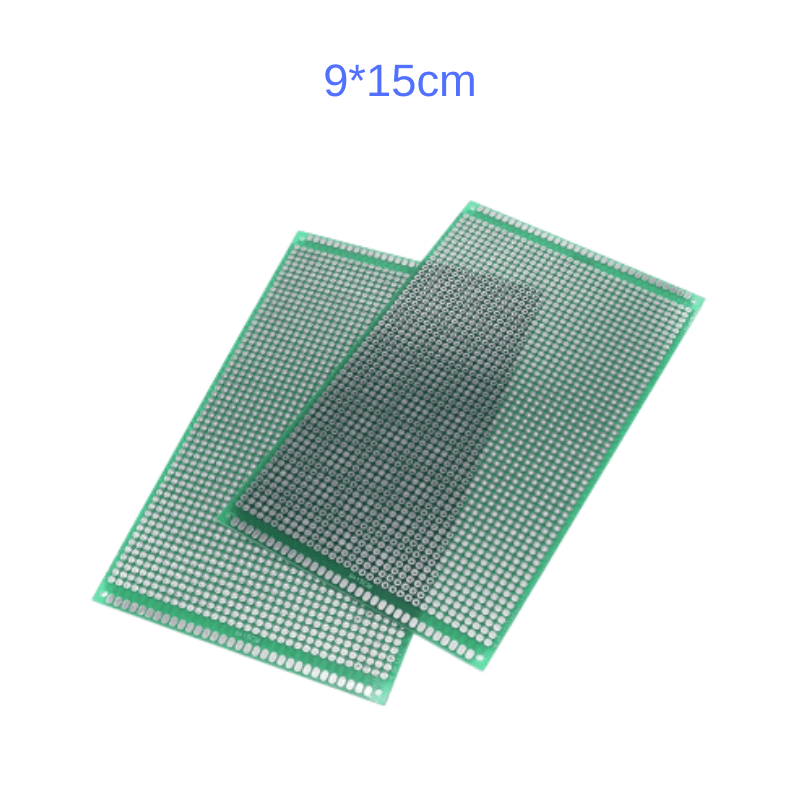

• 9 × 15 cm

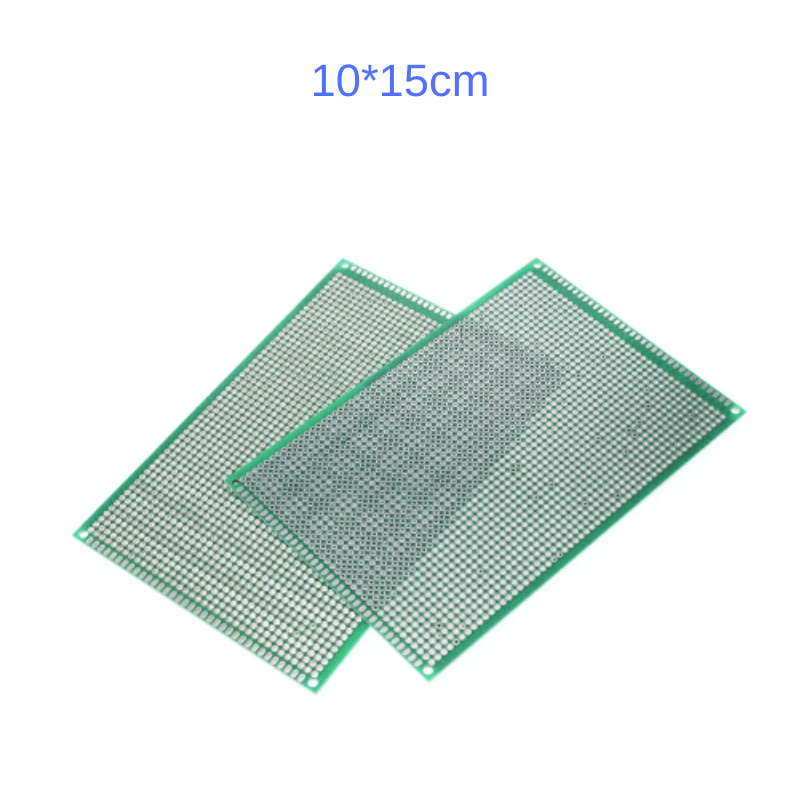

• 10 × 15 cm

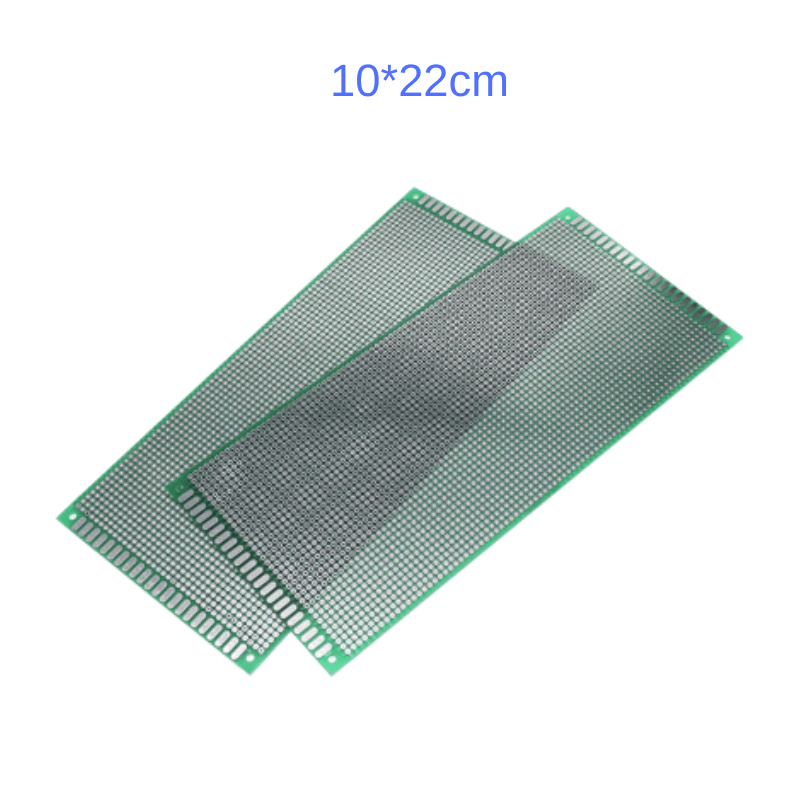

• 10 × 22 cm
• 12 × 18 cm
• 13 × 25cm

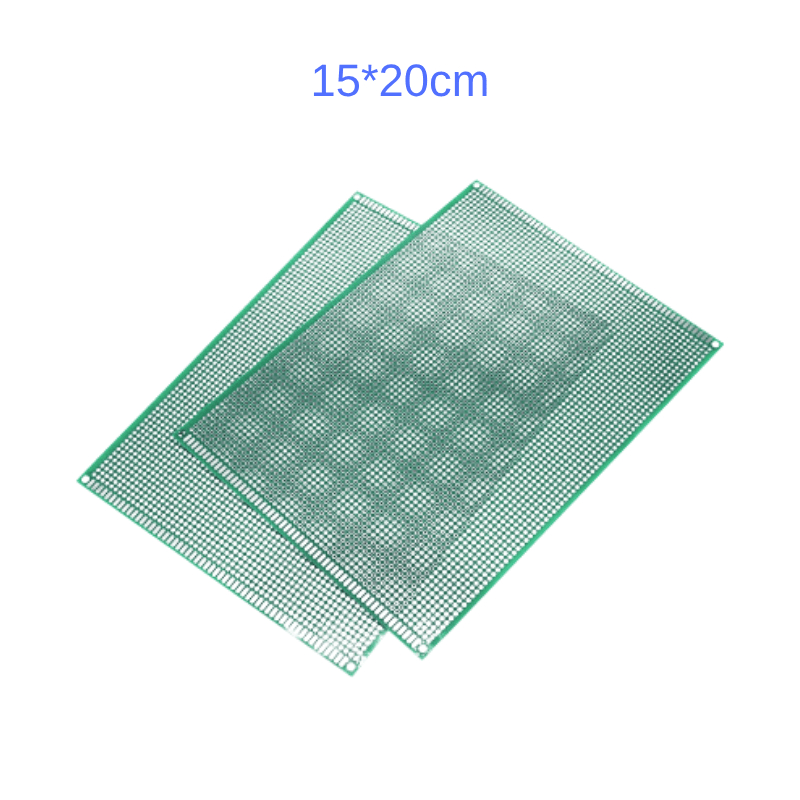

• 15 × 20 cm

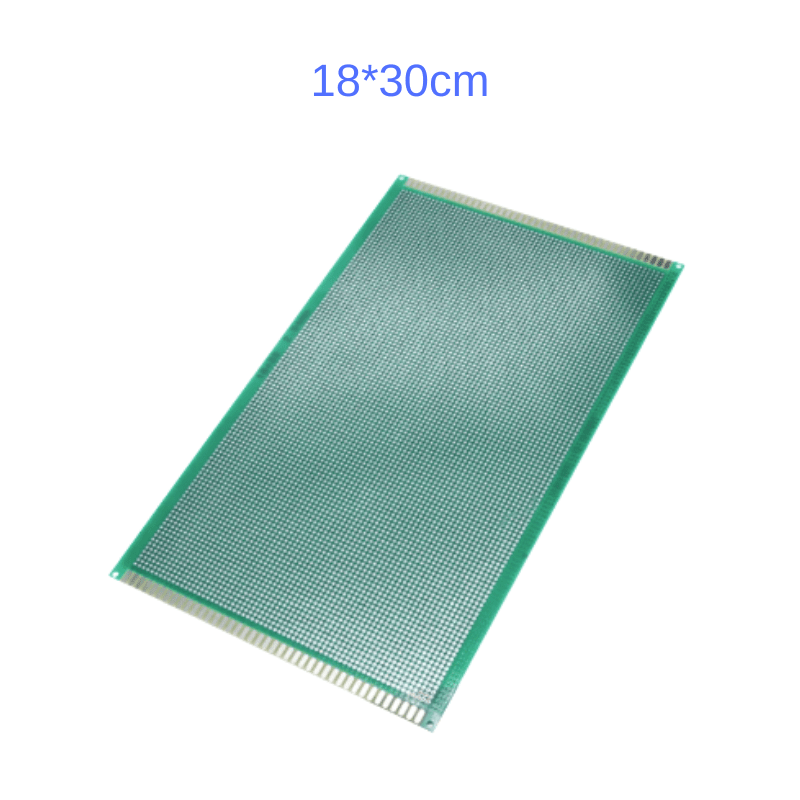

• 18 × 30 cm

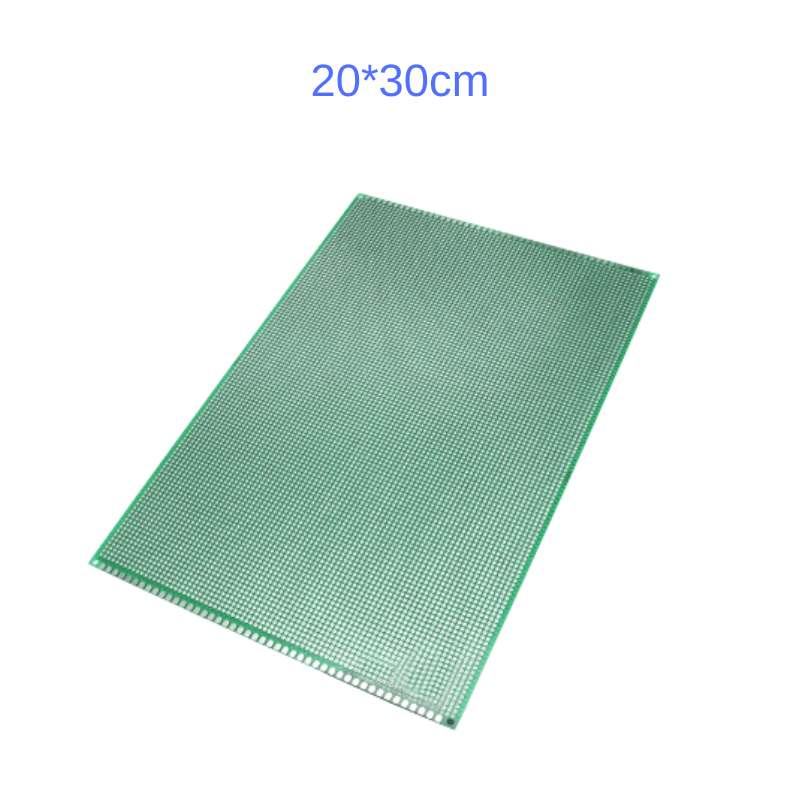

• 20 × 30 cm
• 30 × 40 cm

This range allows users to select the most suitable board size without unnecessary material waste.

---

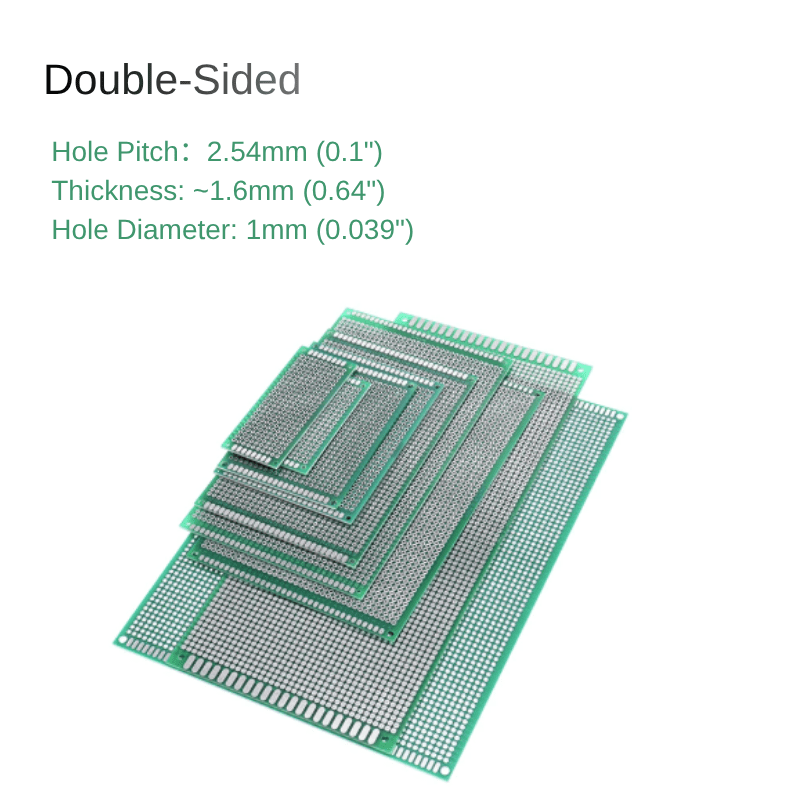

Prototype PCB Board Technical Specifications

Board Type: Double Sided Perfboard

Material: FR4 Fiberglass

Hole Pitch: 2.54mm (0.1″)

Hole Diameter: 1.0mm (0.040″)

Board Thickness: 1.6mm (0.64″) tolerance ±0.05~0.1mm (Mind tolerance before buying)

Surface Finish: Tin Coated

Construction: Double Sided

Application: Electronics Prototyping

Mounting Style: Through Hole

Reusable: No (Soldered Assembly)

---

Learn More About Perfboard Prototyping

https://www.youtube.com/watch?v=QXriSN5u980

This video shows you how to make a tiny Arduino-based project with perfboard.

---

Related Products

GL-12 Breadboard 800P for Effective Circuit Prototyping – Fondyes

You may also be interested in breadboards, jumper wires, pin headers, Arduino boards, sensors, and soldering accessories.

---

FAQ

Q1: What is the difference between a perfboard and a breadboard?

A breadboard is designed for temporary testing, while a perfboard allows components to be soldered for permanent circuit construction.

Q2: Is this board compatible with Arduino projects?

Yes. The standard 2.54mm hole spacing supports Arduino modules, sensors, headers, and most through-hole components.

Q3: Why choose FR4 material?

FR4 offers better heat resistance, strength, and durability compared with low-cost phenolic boards.
