Description

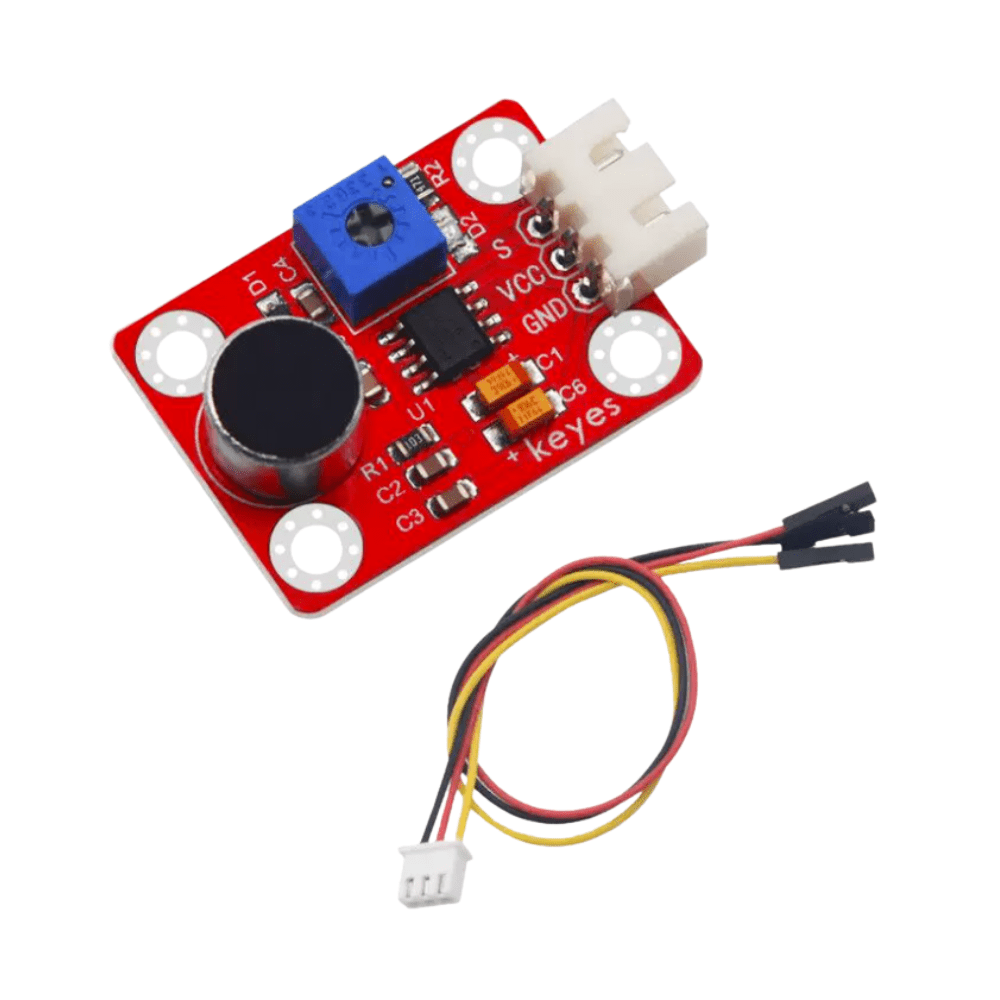

LM358 Sound Detection Module – High Sensitivity Microphone Sensor for Arduino Projects

The LM358 Sound Detection Module is a compact and highly sensitive microphone-based sensor designed for detecting ambient sound intensity in real-time. It is widely used in Arduino, ESP32, ESP8266, robotics, automation systems, and smart control applications.

This module converts sound vibrations into electrical signals and provides both digital output (DO) and analog output (AO), making it flexible for different project requirements. Whether you are building a voice-activated switch, sound-controlled robot, or smart home system, this module offers stable and reliable performance.

---

Key Features of LM358 Sound Detection Module

The LM358 Sound Detection Module uses a high-sensitivity electret microphone combined with an LM358 operational amplifier circuit. It is designed for precise sound signal amplification and threshold detection.

Key advantages include:

• Adjustable sensitivity via onboard potentiometer
• Stable LM358 amplifier circuit
• Dual output mode: analog + digital signal
• Fast response to sound changes
• Compatible with 3.3V / 5V systems

---

Technical Specifications

This microphone sensor module is engineered for reliable embedded applications:

• Operating Voltage: DC 5V
• Chipset: LM358 operational amplifier
• Output Type: Digital / Analog signal
• Sensitivity Adjustment: Potentiometer tuning
• PCB Size: Compact and breadboard-friendly
• Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi (via ADC)

---

How It Works

The microphone detects sound waves from the environment and converts them into electrical signals. The LM358 amplifier enhances weak signals and compares them with a preset threshold.

• Below threshold → no signal output
• Above threshold → digital output triggered

This makes it ideal for “sound-triggered automation” projects.

---

Application Scenarios

The LM358 Sound Detection Module is widely used in:

• Sound-activated lighting systems
• Voice-triggered alarms
• Smart home automation
• Arduino robotics projects
• Noise monitoring systems
• Interactive DIY electronics kits

---

Arduino Compatibility

This module is fully compatible with Arduino platforms and can be easily integrated using simple digital or analog pins.

Example usage includes:

• Clap switch projects
• Sound-controlled relay systems
• Smart fan or light activation

---

Learn More

Want to learn more about this item? Click to view the video demonstration of a similar product.

You can also explore related modules

---

Why Choose This Sound Sensor Module?

Compared with basic sound sensors, the LM358 version offers:

• More stable signal processing
• Better sensitivity tuning
• Lower false trigger rate
• Strong compatibility with DIY electronics

It is an ideal choice for both beginners and advanced developers.

---

 FAQ

Q1: What is the LM358 Sound Detection Module used for?

A1: It is used to detect ambient sound levels and trigger electronic actions such as alarms, lights, or automation systems.

Q2: Can it work with Arduino and ESP32?

A2: Yes, the module is fully compatible with Arduino, ESP8266, and ESP32 platforms.

Q3: How do I adjust the sensitivity?

A3: You can adjust the onboard potentiometer to set the sound detection threshold according to your project requirements.
