9g Micro Servo Motor Analog & Digital TS90M / TS90MD 90° 180° 270° 360°

Price range: $3.51 through $4.04

The 9g Micro Servo Motor TS90M analog servo and TS90MD digital servo offer precise control, metal gears, and multiple rotation options including 90°, 180°, 270°, and continuous 360° for RC models, robots, Arduino, and DIY electronics.

Add to Wishlist
Add to Wishlist

Combine shipping available. Message us for shipping rates.

  • Check Mark Quality Assurance
  • Check Mark Fast Worldwide Shipping
  • Check Mark Buy with Confidence
SKU: N/A Categories: , Tags: , , , , ,

Description

9g Micro Servo Motor for RC, Arduino & Robotics

The 9g Micro Servo Motor is a compact and lightweight servo designed for RC airplanes, RC helicopters, RC cars, robots, Arduino projects, Raspberry Pi, ESP32, and STEM education.

This product page includes both the TS90M Analog Servo Motor and the TS90MD Digital Servo Motor, allowing customers to choose the right Servo Motor for different applications. The analog version is ideal for general RC models requiring smooth movement, while the digital version offers faster response, greater positioning accuracy, and higher holding torque for robotics and automation.

Available in 90°, 180°, 270°, and continuous 360° rotation options, these Servo Motors provide excellent flexibility for makers, engineers, educators, and hobbyists.

Both models feature durable metal gears, stable PWM control, compact dimensions, and reliable performance for long-term operation.

Features

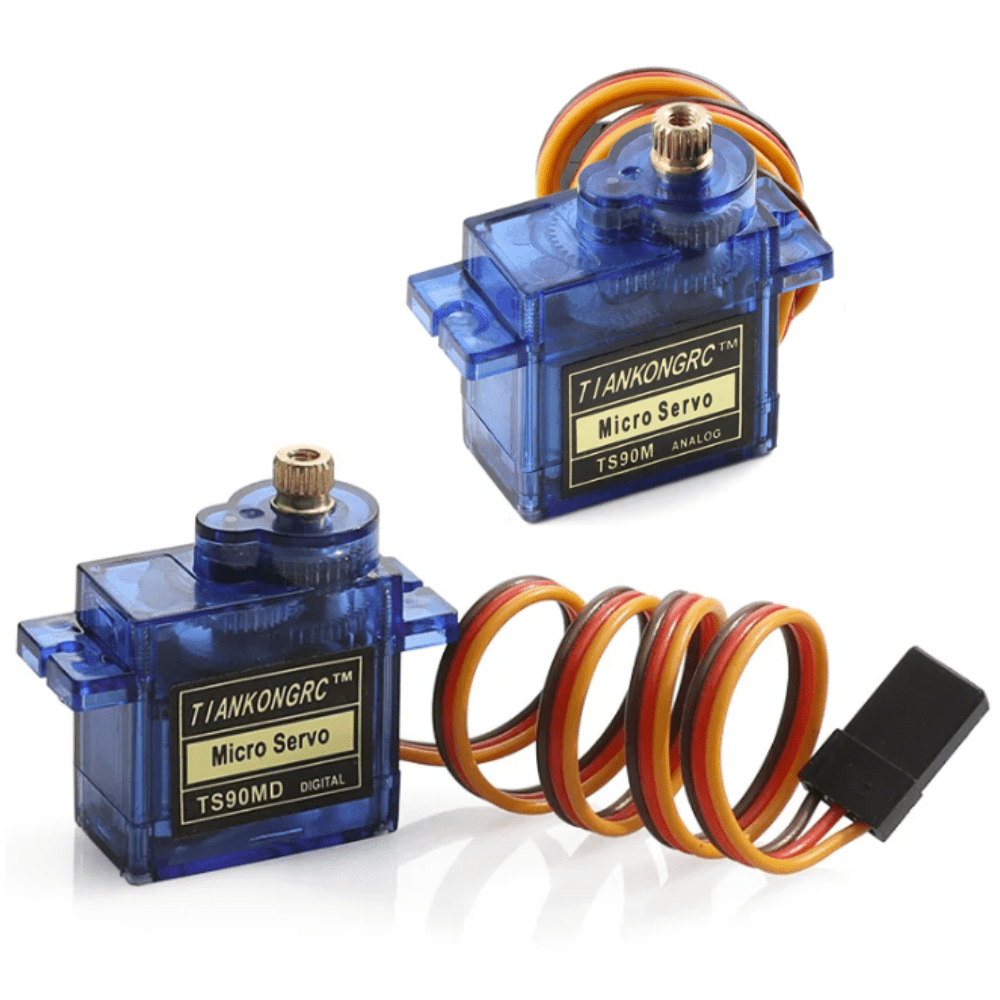

  • Available in Analog (TS90M) and Digital (TS90MD) versions
  • Lightweight 9g micro servo design

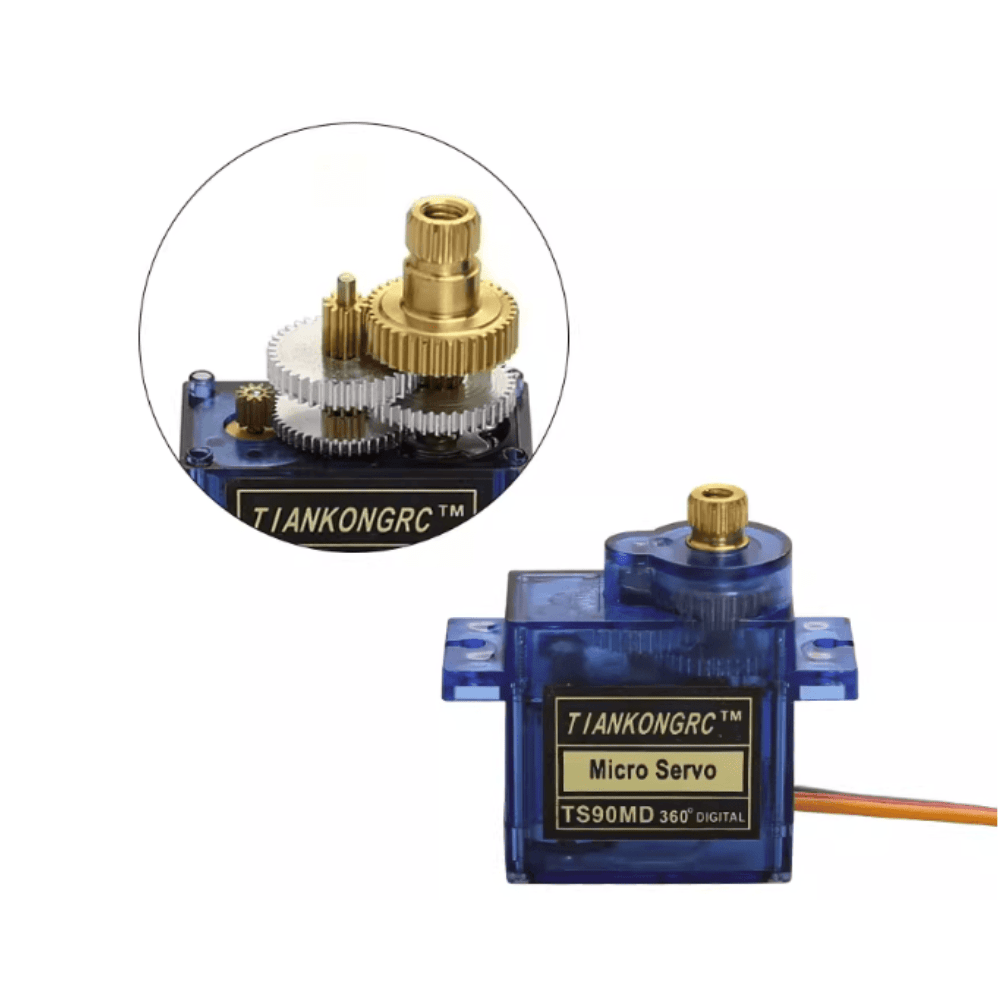

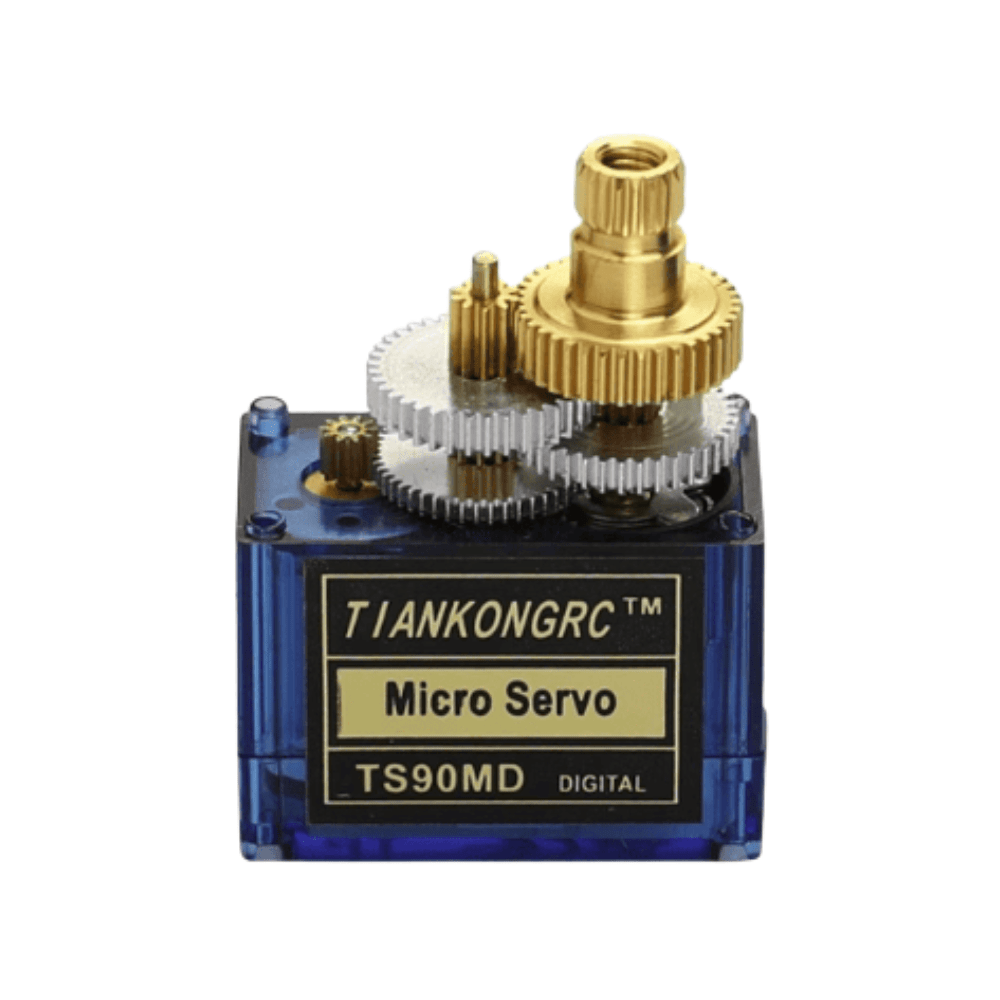

  • High-quality metal gear transmission

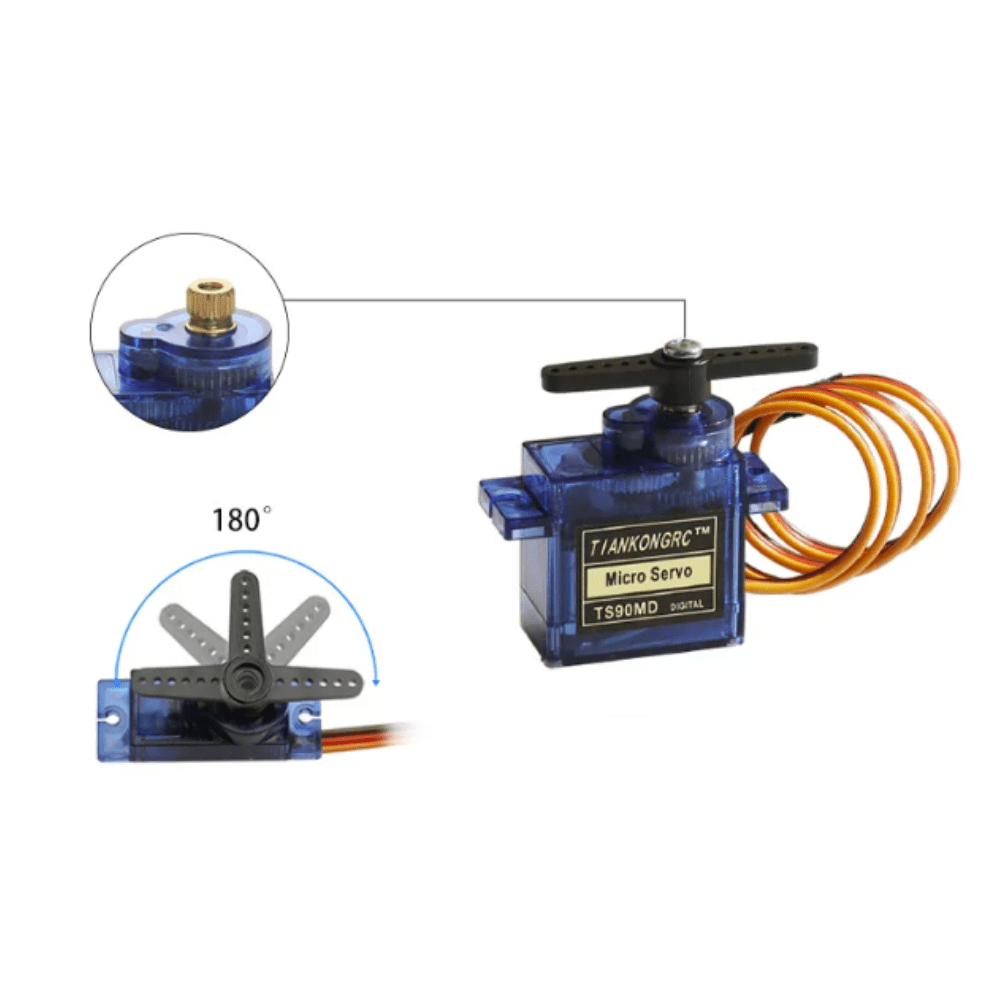

  • Multiple rotation options: 90°, 180°, 270°, and continuous 360°
  • Fast response with stable and accurate positioning
  • Standard PWM control signal
  • Compatible with Arduino, Raspberry Pi, STM32, ESP32 and most RC receivers
  • Suitable for RC airplanes, RC cars, robots, robotic arms, STEM kits and DIY electronics
  • Compact size for space-limited installations

Specifications

Item TS90M (Analog) TS90MD (Digital)
Servo Type Analog Servo Digital Servo
Gear Material Metal Gear Metal Gear
Operating Voltage 4.8V / 6V DC 4.8V / 6V DC
Speed @4.8V 0.12 sec/60° 0.12 sec/60°
Speed @6V 0.09 sec/60° 0.09 sec/60°
Stall Torque @4.8V 1.8 kg·cm 1.8 kg·cm
Stall Torque @6V 2.2 kg·cm 2.2 kg·cm
No-load Current 220mA 220mA
Stall Current 750mA ±10% (4.8V)
860mA ±10% (6V)		 750mA ±10% (4.8V)
860mA ±10% (6V)
Control Signal PWM PWM
Pulse Width 500–2500 μs 500–2500 μs
Neutral Position 1500 μs ±1° 1500 μs ±1°
Dead Band Width — 8 μs
Available Rotation 90°, 180° 90°, 180°, 270°, 360°
Dimensions 22.4 × 12.2 × 22.3 mm 22.4 × 12.5 × 22.8 mm
Weight 13.5g ±5% 13.5g ±5%

Applications

  • RC Airplanes
  • RC Helicopters
  • RC Cars
  • RC Boats
  • Robot Arms
  • Mobile Robots
  • Arduino Projects
  • Raspberry Pi Projects
  • ESP32 Projects
  • STEM Education
  • Smart Vehicles
  • Pan-Tilt Camera Systems
  • DIY Electronics
  • Automation Projects

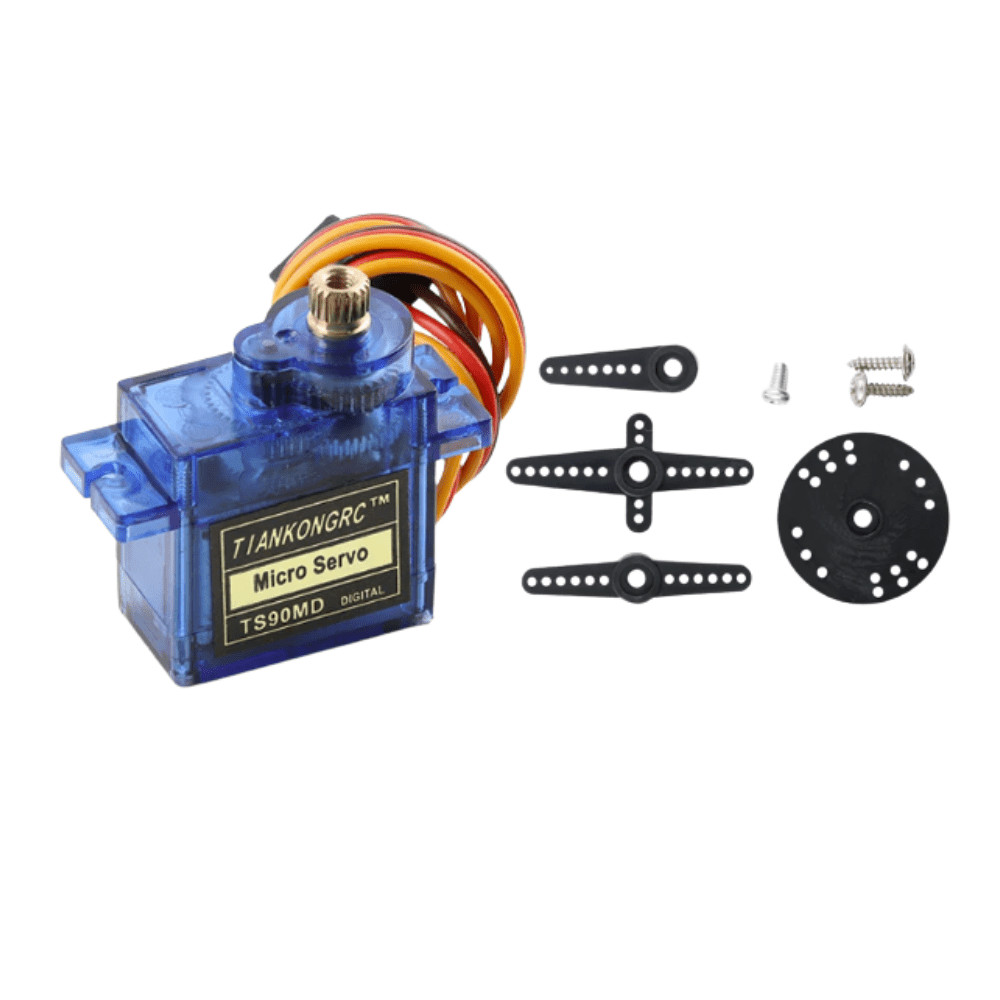

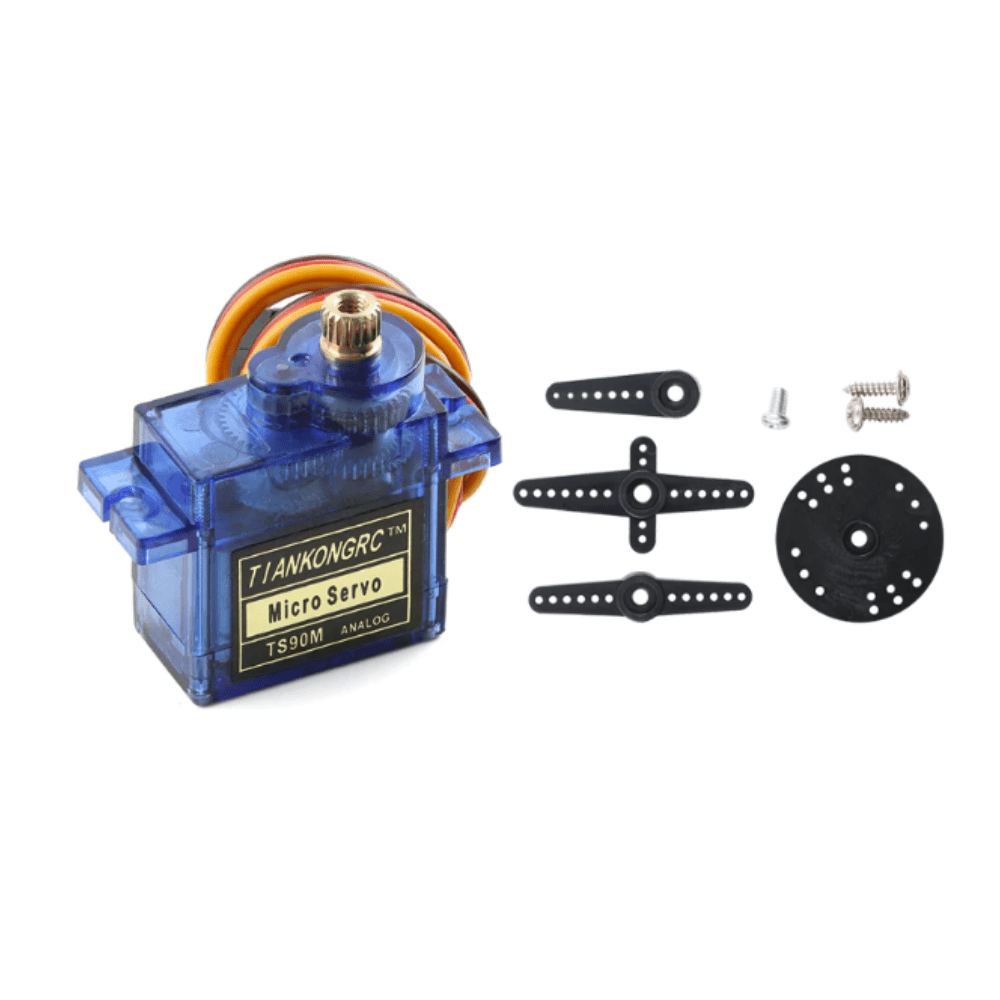

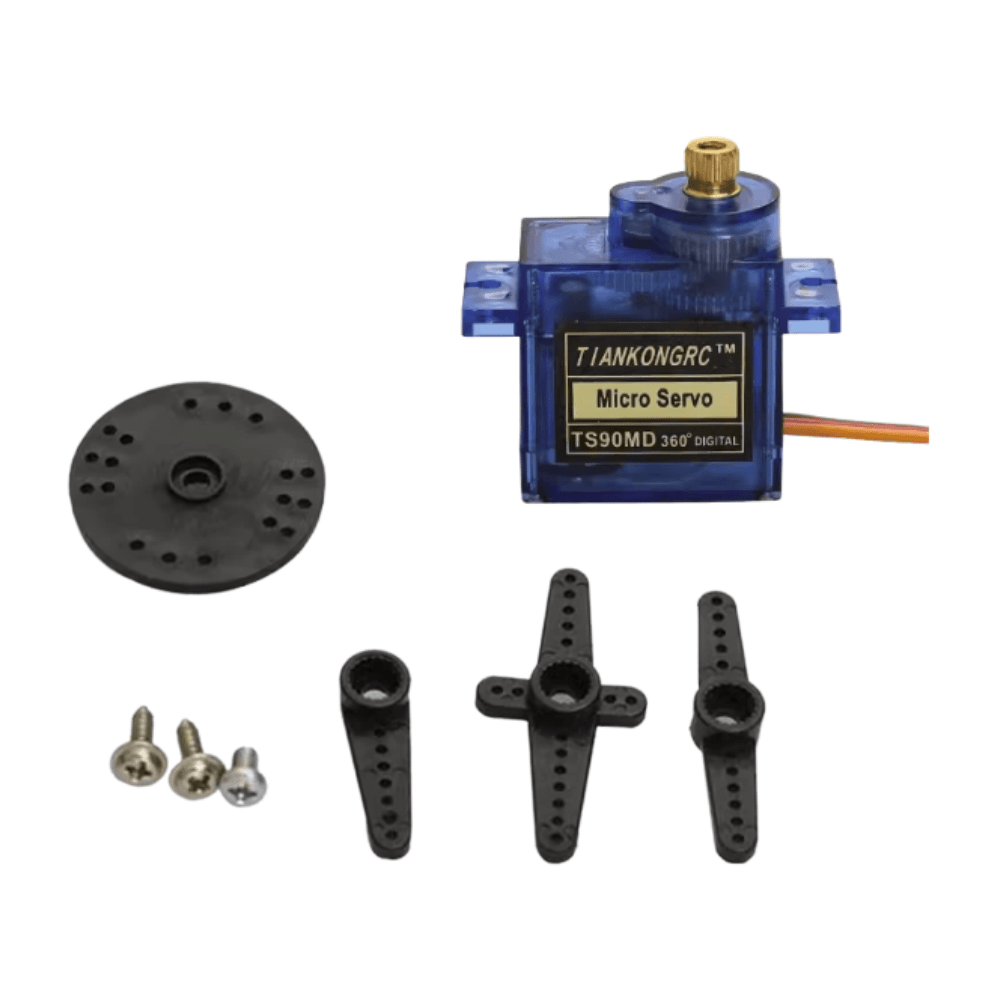

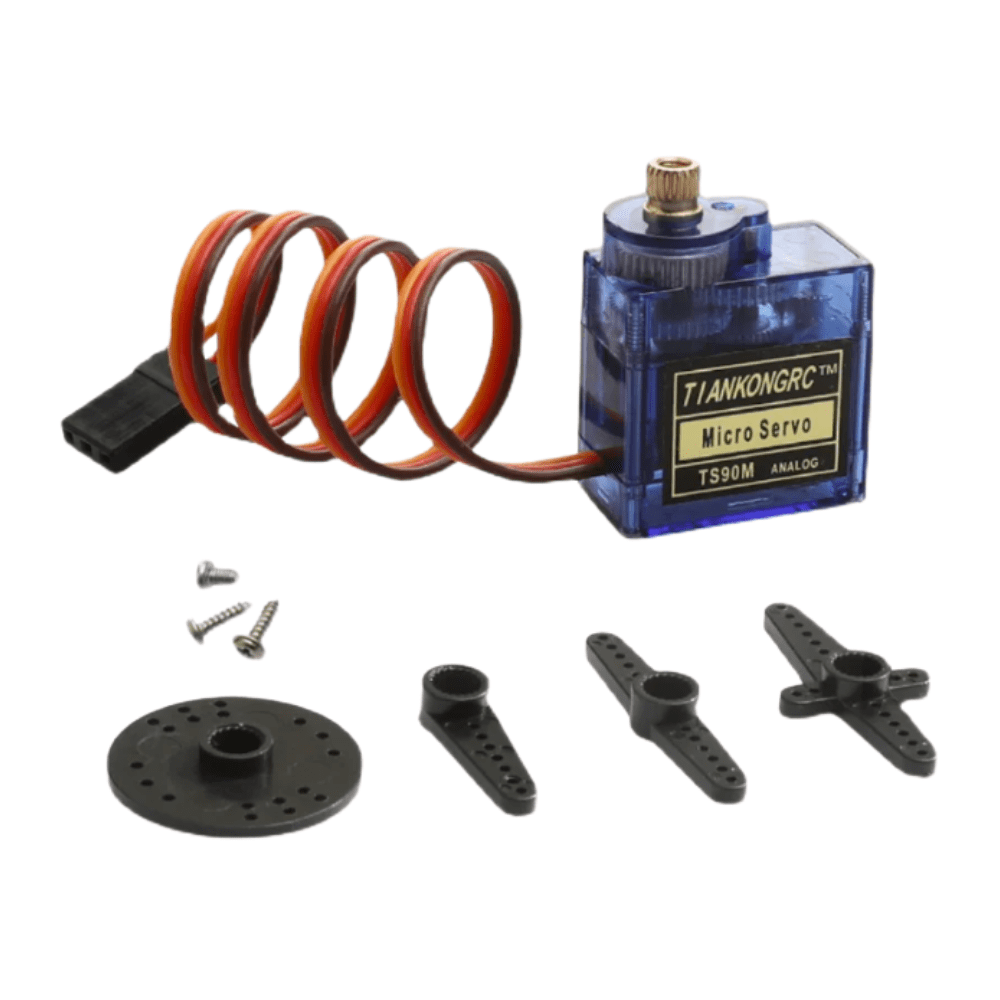

Package Includes

  • 1 × TS90M or TS90MD Micro Servo Motor (according to selected variant)
  • Servo Horn Set
  • Mounting Screws
  • Accessories Kit

FAQ

Q1: What is the difference between the TS90M and TS90MD servo?

The TS90M is an analog servo motor designed for standard RC applications. The TS90MD is a digital servo motor offering faster response, higher positioning accuracy, and stronger holding torque, making it suitable for robotics and automation.

Q2: What operating voltage does this 9g Micro Servo Motor support?

Both TS90M and TS90MD support an operating voltage of 4.8V to 6V DC.

Q3: Which rotation angles are available?

Depending on the selected model, available options include:

  • 90°
  • 180°
  • 270°
  • Continuous 360°

Q4: Is this servo compatible with Arduino?

Yes. This Servo Motor uses a standard PWM control signal and is fully compatible with Arduino, Raspberry Pi, ESP32, STM32, and most RC receivers.

Q5: What applications is this servo suitable for?

It is suitable for:

  • RC airplanes
  • RC helicopters
  • RC cars
  • RC boats
  • Robot arms
  • Smart robots
  • DIY electronics
  • STEM education
  • Arduino projects
  • Raspberry Pi projects

Q6: Does this servo include accessories?

Yes. Each servo includes a servo horn set, mounting screws, and installation accessories.

Why Choose Our  Micro Servo 9g Motor?

Whether you need an analog servo for RC models or a digital servo for robotics and automation, the TS90M and TS90MD deliver dependable performance, precise control, and excellent durability. Contact us today for OEM, ODM, wholesale pricing, or bulk orders.

You may also be interested in our other RC servo motors

Additional information

Model

TS90M (Analog), TS90MD (Digital)
Rotation Angle

270°, 360° Continuous, 90-180°
