Sturdy MG90S Servo 9g Semi Metal Gear 180° & 360° RC Arduino Servo
Price range: $1.20 through $1.43
MG90S Servo is a 9g micro servo motor with semi-metal gears, available in 180° positioning and 360° continuous rotation versions. Ideal for Arduino, RC models, robotics and DIY projects.
Combine shipping available. Message us for shipping rates.
- Quality Assurance
- Fast Worldwide Shipping
- Buy with Confidence
Description

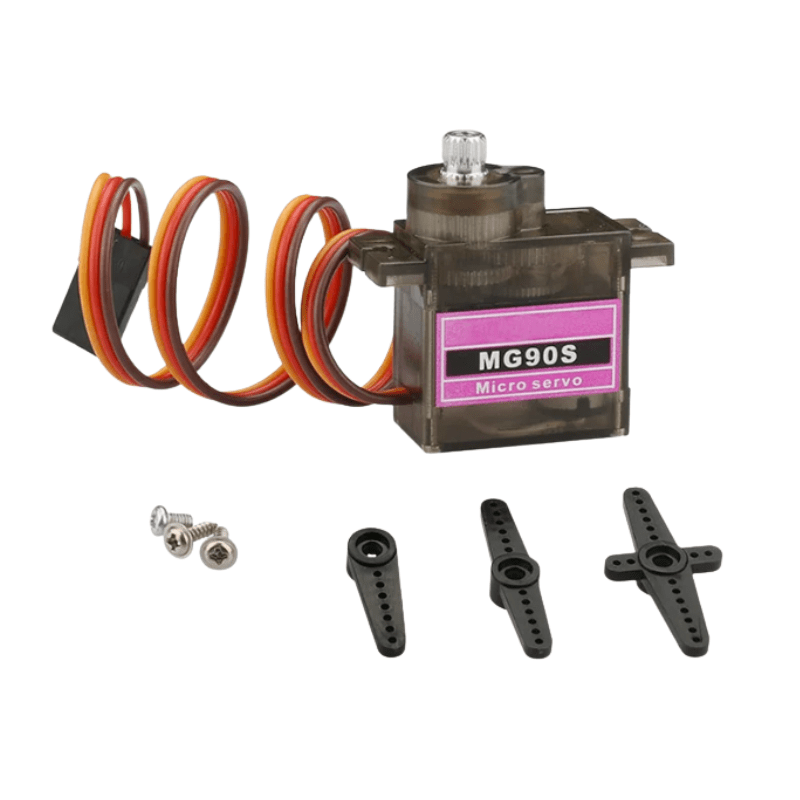

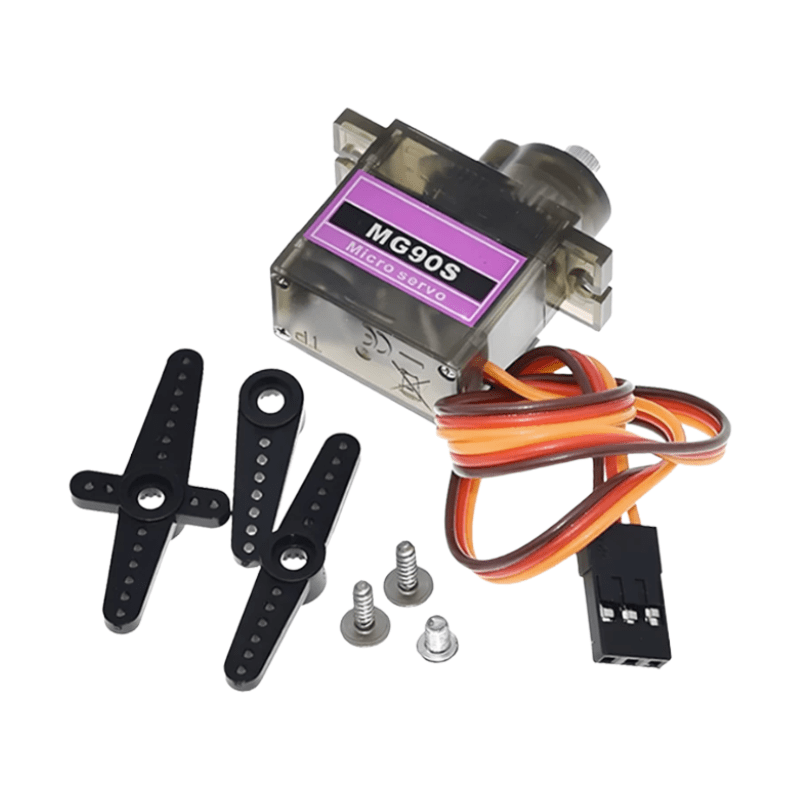

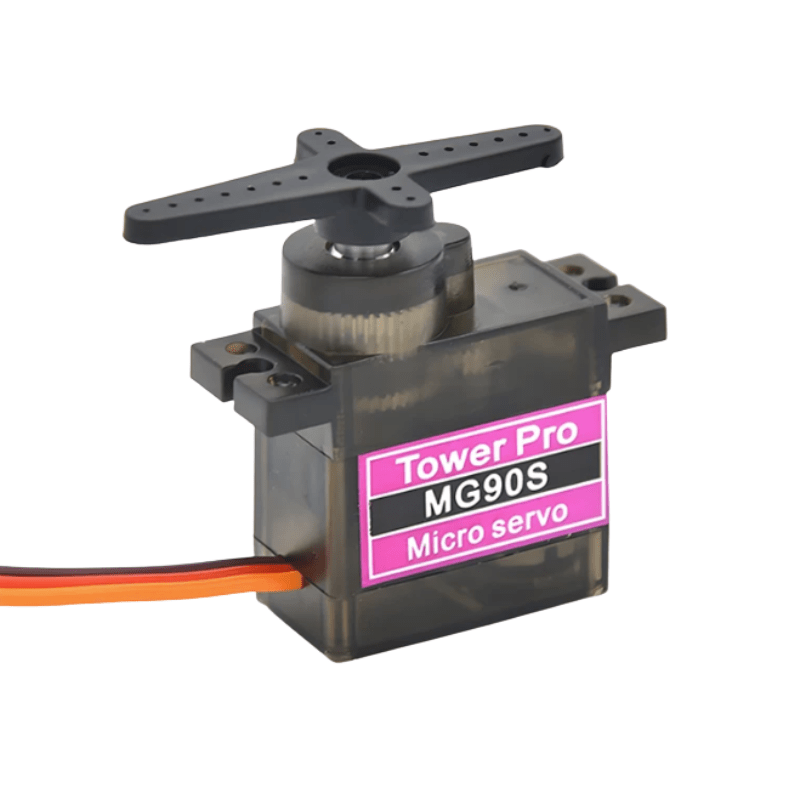

MG90S Servo – 9g Micro Metal Gear Servo
The MG90S Servo is a compact 9g micro servo motor designed for precision motion control in robotics, RC models, and Arduino-based projects. Compared with standard plastic gear servos, the MG90S uses semi-metal reinforced gears, offering improved durability and torque stability under load.
This MG90S micro servo is available in multiple configurations:
- 180° Positioning Version – Accurate angle control for robotic joints, steering systems, pan-tilt cameras, and educational robotics.
- 360° Continuous Rotation Version – Full rotation speed control via PWM, suitable for mobile robots, wheels, and automation systems.
- Semi-Metal Gear Version – Balanced durability and cost performance, ideal for general-purpose engineering projects.
Key Features
- 9g lightweight compact design
- Semi-metal reinforced gear structure
- Available in 180° and 360° versions
- Stable PWM signal control
- High torque performance for its size
- Compatible with Arduino, ESP32, Raspberry Pi
- JR/Futaba standard connector
- Easy plug-and-play integration
Applications
- Arduino robot projects
- RC airplanes and helicopters
- Robotic arms and joints
- Smart car steering systems
- DIY STEM education kits
- Camera pan-tilt systems
- Automation prototypes
Technical Specifications
| Item | Specification |
|---|---|
| Model | MG90S |
| Weight | 13.6g |
| Operating Voltage | 4.8V – 6.0V |
| Torque | 2.0 kg/cm @ 4.8V |
| Speed | 0.11 sec/60° @ 4.8V |
| Rotation | 180° / 360° |
| Gear Type | Semi-metal gear |
| Connector | JR Standard |
| Cable Length | ~25cm |
| Working Temp | 0°C – 55°C |
What’s the Difference: 180° vs 360°

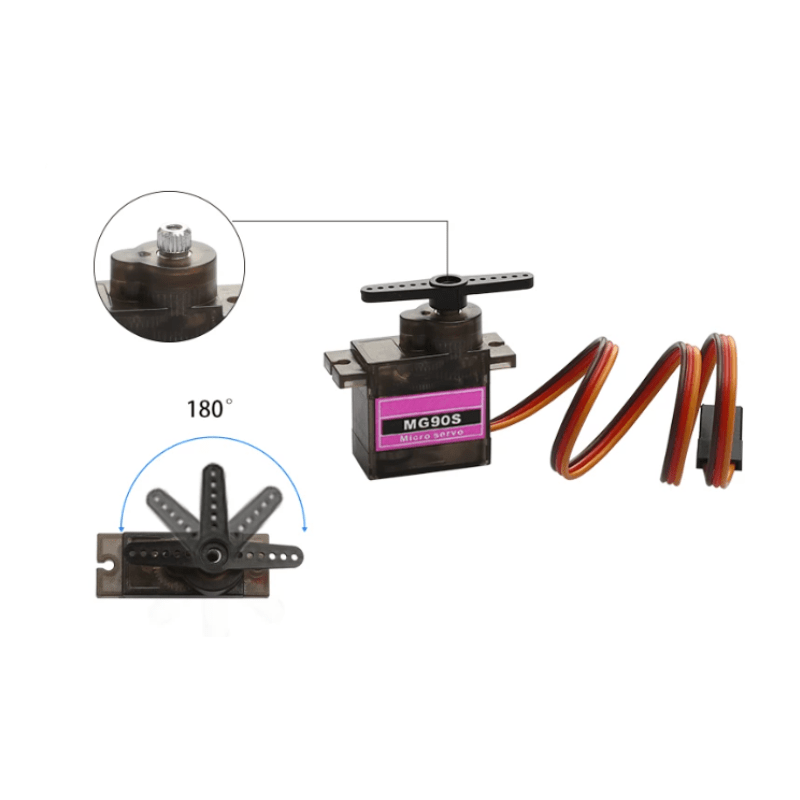

- 180° version → Position control (precise angle movement)
- 360° version → Continuous rotation (speed + direction control)
Learn More about MG90S Servo
For programming demonstrations and real application videos, please click here
If you’re building a complete motion control project, you may also be interested in our other compatible products, including SG90 servos, Arduino development boards, making system integration faster and easier.
FAQ
Q1: Is MG90S better than SG90?
Yes. MG90S uses reinforced metal gears, making it more durable under load.
Q2: Can it be used with Arduino?
Yes. It works directly with Arduino PWM control libraries.
Q3: Is 360° version position controllable?
No. 360° version is designed for continuous rotation only.
Additional information
| SG92S Micro Servo | SG92S Semi-metal 180°, SG92S Semi-metal 360° |
|---|
