DC Voltmeter Module Two Wire 0.36 Inch 4-30V
Price range: $0.41 through $0.52
♦ Specifications
Display Type: 0.36″ 3-digit LED
Accuracy: 0.1 V

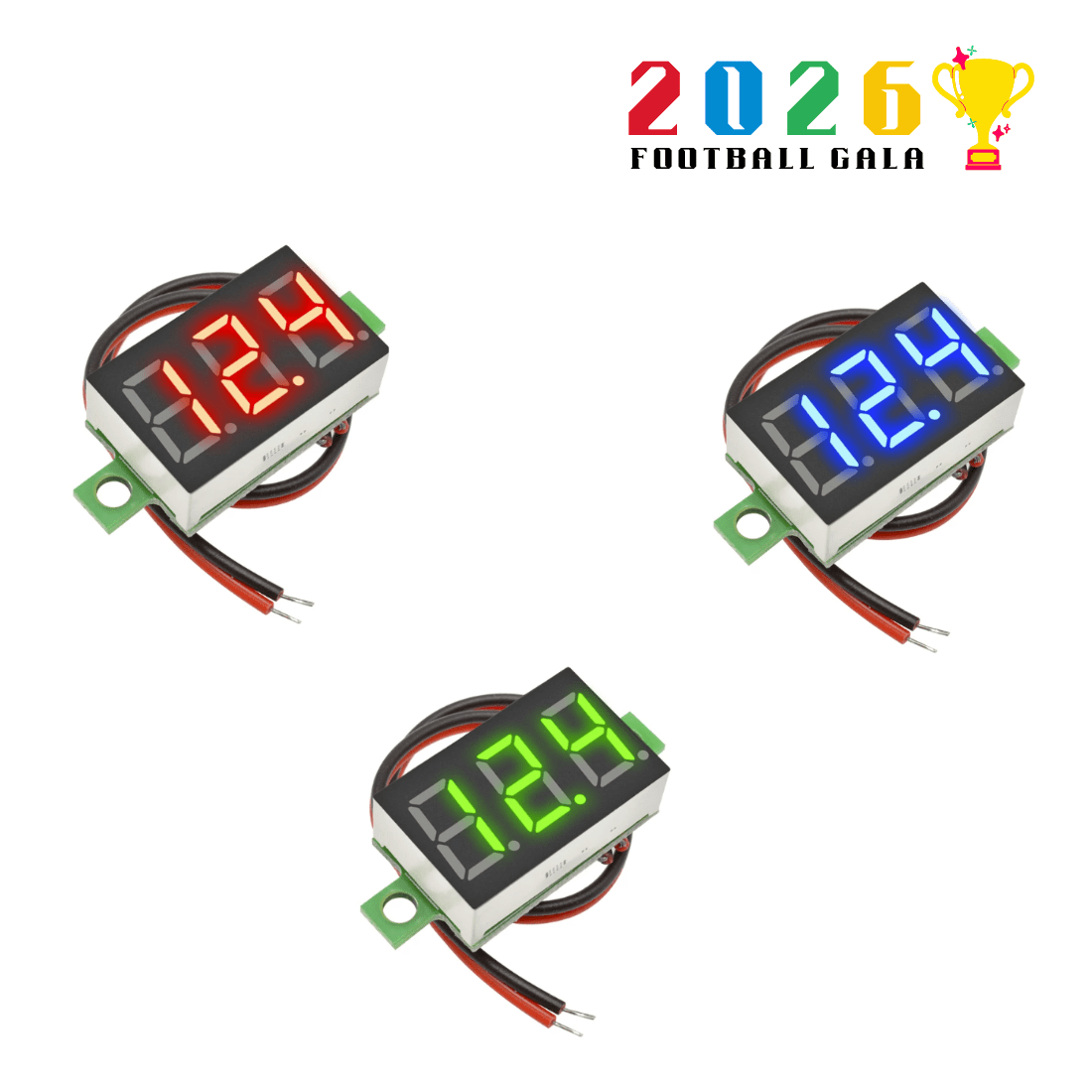

Color: Green, Red, Blue
Wires: 2
Lead Length: 15 cm
Operating Voltage (VDC): 4.0V ~ 30V
Current Consumption (mA): 15
Refresh Speed (ms): 300 (one time)
Minimum Input: 4.0V
Highest Input: 30V
Operating Temperature: -10°C to 60°C
Mounting cutout: 3mm
Dimensions: 23*15*10 mm
Weight: 3g
Combine shipping available. Message us for shipping rates.
- Quality Assurance
- Fast Worldwide Shipping
- Buy with Confidence
Description

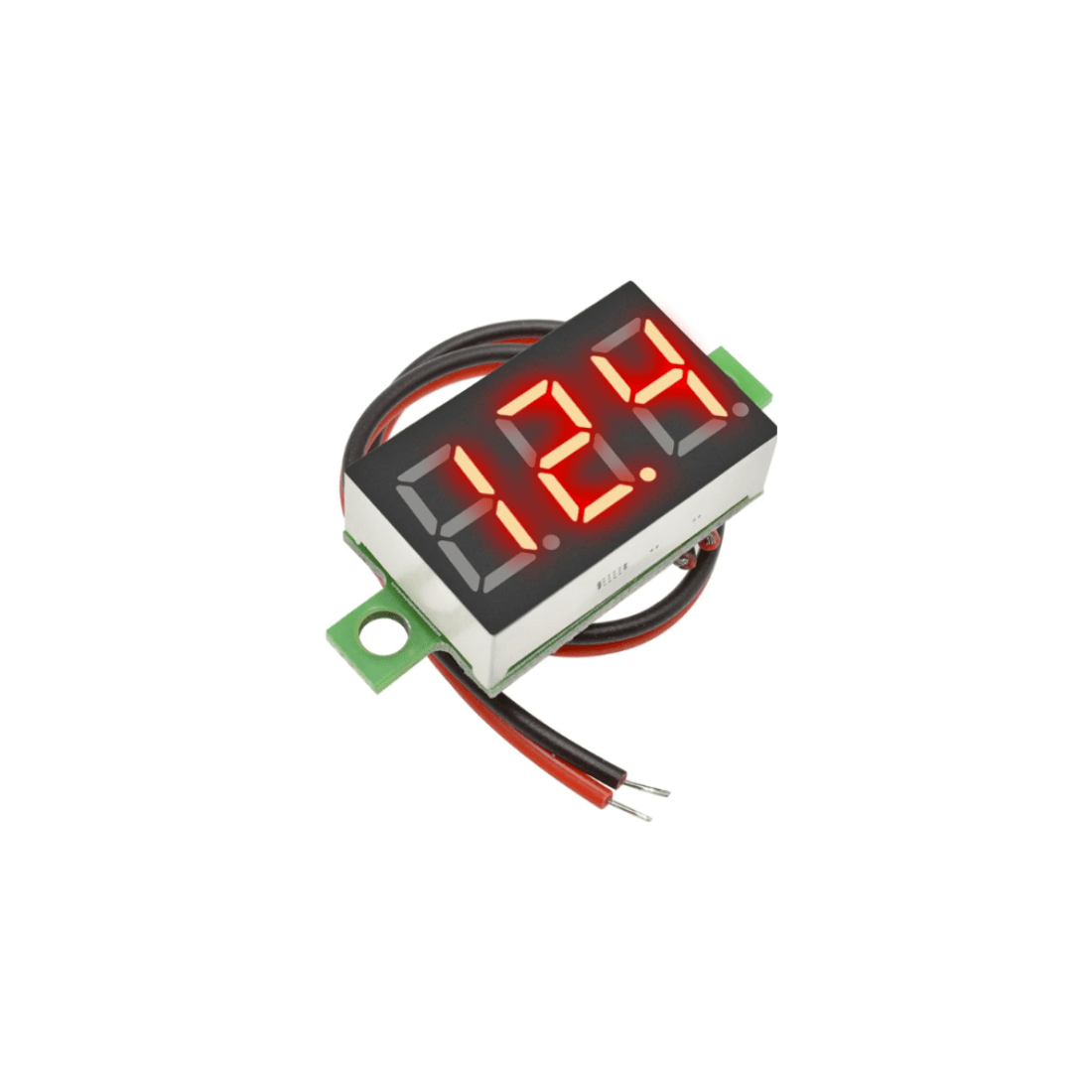

This is tiny and compact digital voltmeter with a red LED Display. The 0.36 inch 4-30V Two-Wire DC Voltmeter Red Panel requires only a few minutes of configuration and is as simple as directly connecting wires to the source you want to measure and seeing the LED blink.
Connections:
Red Wire: source +ve terminal.
Black Wire: Source -ve terminal.
Note: The display weight and Dimensions may have ±2% error.
Features:
Very small and lightweight voltmeter module.
Very handy and easy to use.
Best operates in the working voltage range of 5V to 24V.
0.36 inch Digital Mini Voltmeter is a 2-wire display.
Additional information
| 0.36" Two-Wire | Blue, Green, Red |
|---|
