$0.86
♦ Specifications
Display: 0.28″ LED digital
Display Colors: Red (Voltage) + Blue (Current)
Operating voltage: DC 4.0 ~ 30V
Measure voltage: DC 0 ~ 100V
Measure current: 10A
Minimum Voltage Resolution: 0.1V
Minimum Current Resolution: 0.01A
Measurement Accuracy: 1% (±1 digit)
Refresh Rate: ≥100ms per reading
Working Current: ≤20mA
Dimensions: 48mm x 29mm x 22mm
Mounting cutout:: 46 x 27 mm
Weight: 50 grams
Working temperature: –10°C to +65°C
-
$0.41 – $0.52Price range: $0.41 through $0.52

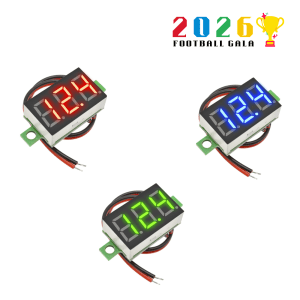

♦ Specifications
Display Type: 0.36″ 3-digit LED
Accuracy: 0.1 V
Color: Green, Red, Blue
Wires: 2
Lead Length: 15 cm
Operating Voltage (VDC): 4.0V ~ 30V
Current Consumption (mA): 15
Refresh Speed (ms): 300 (one time)
Minimum Input: 4.0V
Highest Input: 30V
Operating Temperature: -10°C to 60°C
Mounting cutout: 3mm
Dimensions: 23*15*10 mm
Weight: 3g
-

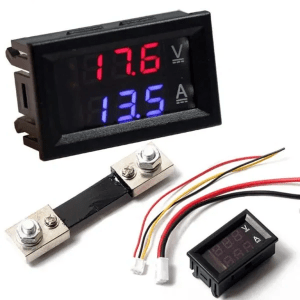

$3.17
♦ Specifications
Voltage Measurement Range: 0~100Vdc.
Current Range: 0~100A.
Power supply Input: 4~30.0Vdc.
Voltage Measurement Accuracy: ±0.1%.
Current Measurement Accuracy: ±1.0%.
Current Shunt: 100A/75mV.
Operating Current: <20mA.
Refresh Rate: ~300mS.
Display: Double 3-Digit 0.28″ LED.
Display Color: Red (Voltage) + Blue (Current).
Dimensions: 48 x 29 x 22 mm (L x W x H).
Mounting Hole Cut-out: 46 x 27 mm.
Weight: 70gram (include Current Shunt)
Operating Temperature: –10°C to +65°C
Package Include:
1x Dual Display VA Meter Module.
1x 100A~75mV Current Shunt
2x Connecting Cable.
-

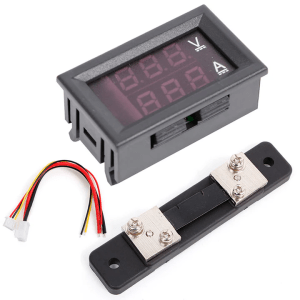

$2.27
♦ Specifications
Voltage Measurement Range: 0~100Vdc.
Current Range: 0~50A.
Power supply Input: 4~30.0Vdc.
Voltage Measurement Accuracy: ±0.1%.
Current Measurement Accuracy: ±1.0%.
Current Shunt: 50A/75mV.
Operating Current: <20mA.
Refresh Rate: ~300mS.
Display: Double 3-Digit 0.28″ LED.
Display Color: Red (Voltage) + Blue (Current).
Dimensions: 48 x 29 x 22 mm (L x W x H).
Mounting Hole Cut-out: 46 x 27 mm.
Weight: 70gram (include Current Shunt)
Operating Temperature: –10°C to +65°C
Package Include:
1x Dual Display VA Meter Module.
1x 50A~75mV Current Shunt
2x Connecting Cable.
