Mini Toggle Switch

Our Mini Toggle Switch series is designed to provide reliable switching performance for industrial equipment, automotive electrical systems, marine applications, DIY electronics, and automation projects. This product family combines multiple circuit configurations, switching functions, housing materials, and contact options into one complete solution, making it easy to select the right switch for almost any application.

Each Mini Toggle Switch is manufactured with precision components to ensure stable electrical performance, smooth mechanical operation, and long service life. Whether you need a simple ON-OFF switch, a multi-position selector, or a momentary control switch, this series provides dependable performance for both commercial and industrial use.

---

Mini Toggle Switch Features

Our Mini Toggle Switch family has been developed to meet the requirements of professional engineers, equipment manufacturers, and electronics enthusiasts. Every switch is designed for reliable operation, simple installation, and excellent durability.

Key Features

• Heavy-duty metal lever actuator
• Panel mount design for secure installation
• Available in SPST, SPDT, DPST and DPDT circuit configurations
• Supports ON-OFF, ON-ON, ON-OFF-ON, and momentary switching functions
• Available in Maintained (Self-Locking) and Momentary (Spring Return) versions
• Rated up to 15A at 250VAC
• Smooth switching action with excellent tactile feedback
• Long mechanical and electrical service life
• Easy screw terminal wiring
• Suitable for AC and DC control circuits

---

Housing Options

To meet different environmental and industrial requirements, this Mini Toggle Switch series is available with three housing options.

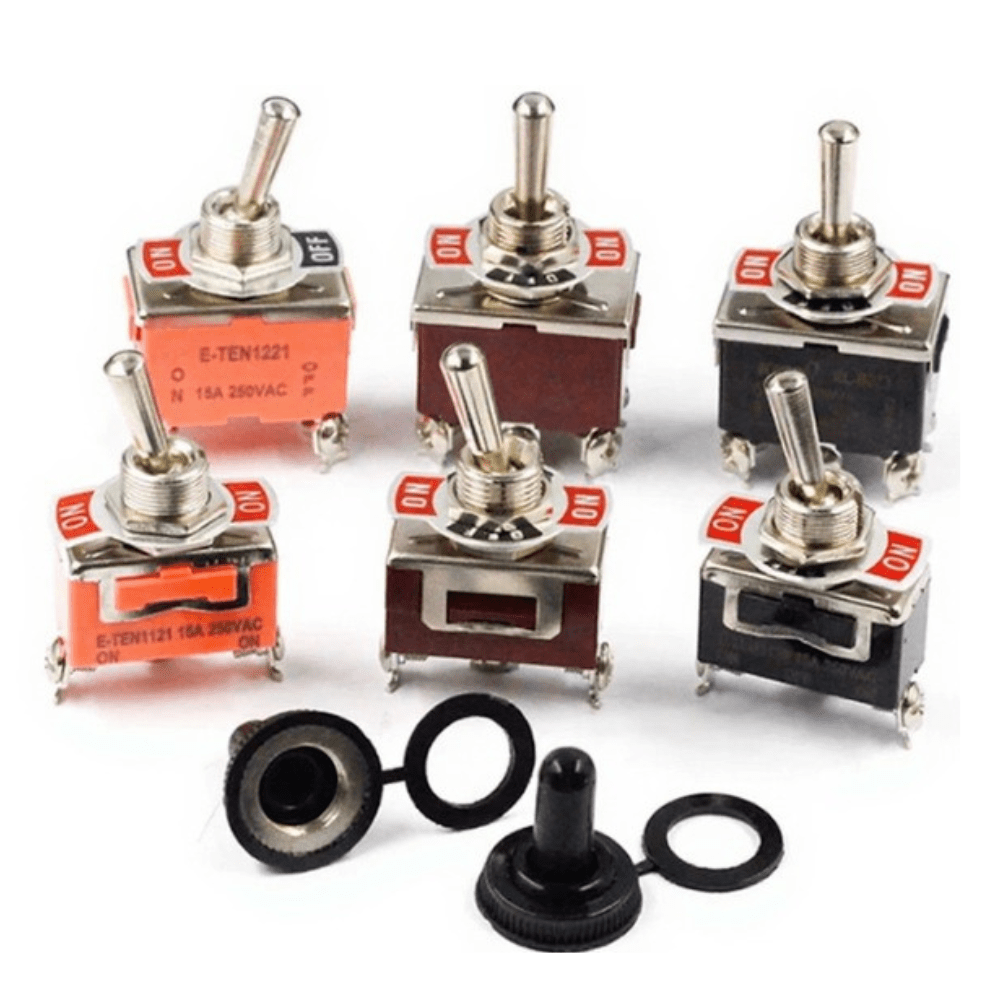

Orange Flame-Retardant Nylon Housing

A lightweight engineering nylon housing offering excellent insulation and impact resistance. Recommended for general electrical equipment, control boxes, and DIY electronics.

Red Flame-Retardant Nylon Housing

Designed for applications requiring improved visibility and easy identification. Frequently used in automotive wiring, machinery, and customized control panels.

Black Phenolic Housing (Bakelite)

The Black Phenolic Housing (Bakelite) version provides outstanding heat resistance, electrical insulation, and mechanical strength. It is the preferred choice for industrial equipment, power distribution systems, and demanding operating environments where long-term reliability is essential.

---

Contact Material Options

Different electrical applications require different contact materials. Our Mini Toggle Switch series is available with three contact options to meet a wide range of performance and budget requirements.

Silver Alloy Contacts (Red)

Silver alloy contacts provide excellent electrical conductivity, low contact resistance, and outstanding durability. They are recommended for high-frequency switching, industrial automation, and applications where long service life is important.

Copper Alloy Contacts (Black)

Copper alloy contacts offer reliable electrical performance and excellent value, making them suitable for most standard electrical switching applications.

Iron Contacts (Orange)

Iron contacts are an economical option for general-purpose switching where cost efficiency is the primary consideration.

---

Technical Specifications

Note: Mechanical life and operating temperature may vary slightly depending on the specific model and contact material.



---

How to Select the Right Mini Toggle Switch

Choosing the correct Mini Toggle Switch is straightforward once you identify your application requirements.

1. Select the circuit configuration
   • SPST (2 Pins)  – Controls one circuit with simple ON/OFF operation.

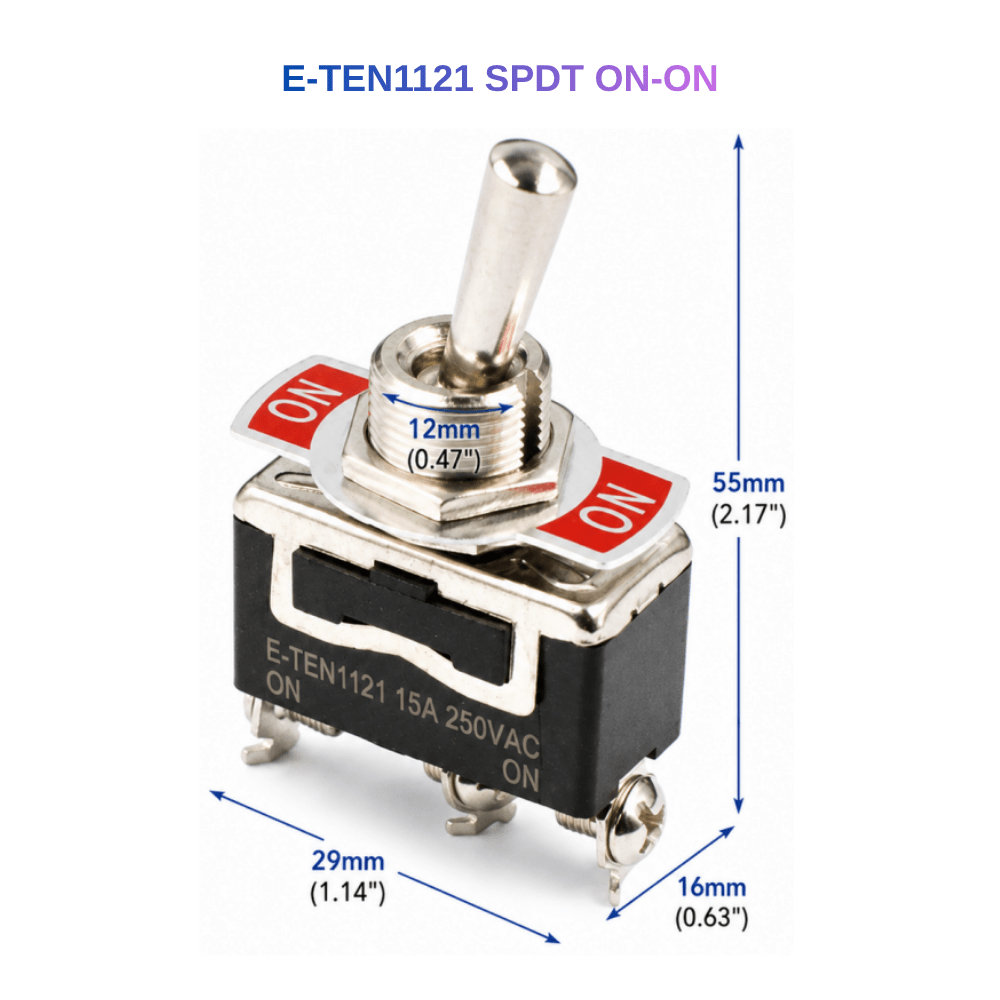

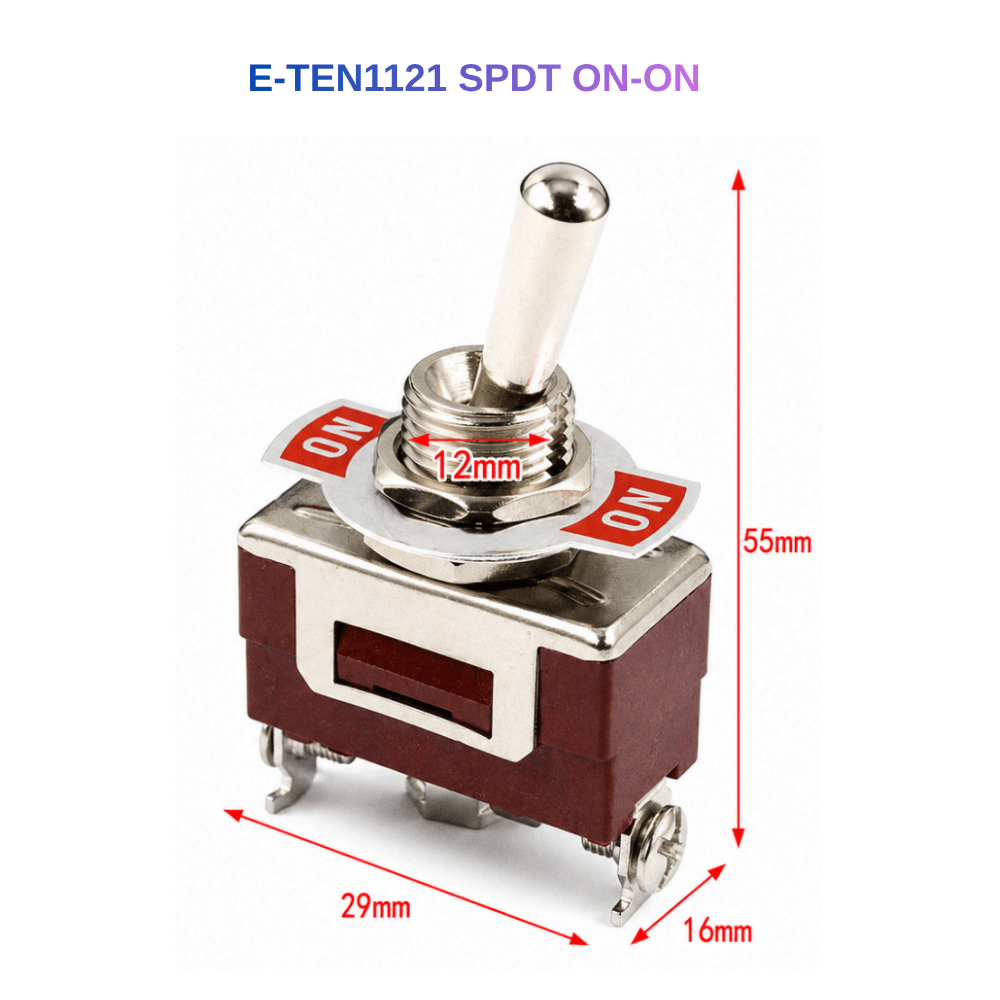

   • SPDT (3 Pins)  – Switches one circuit between two outputs.

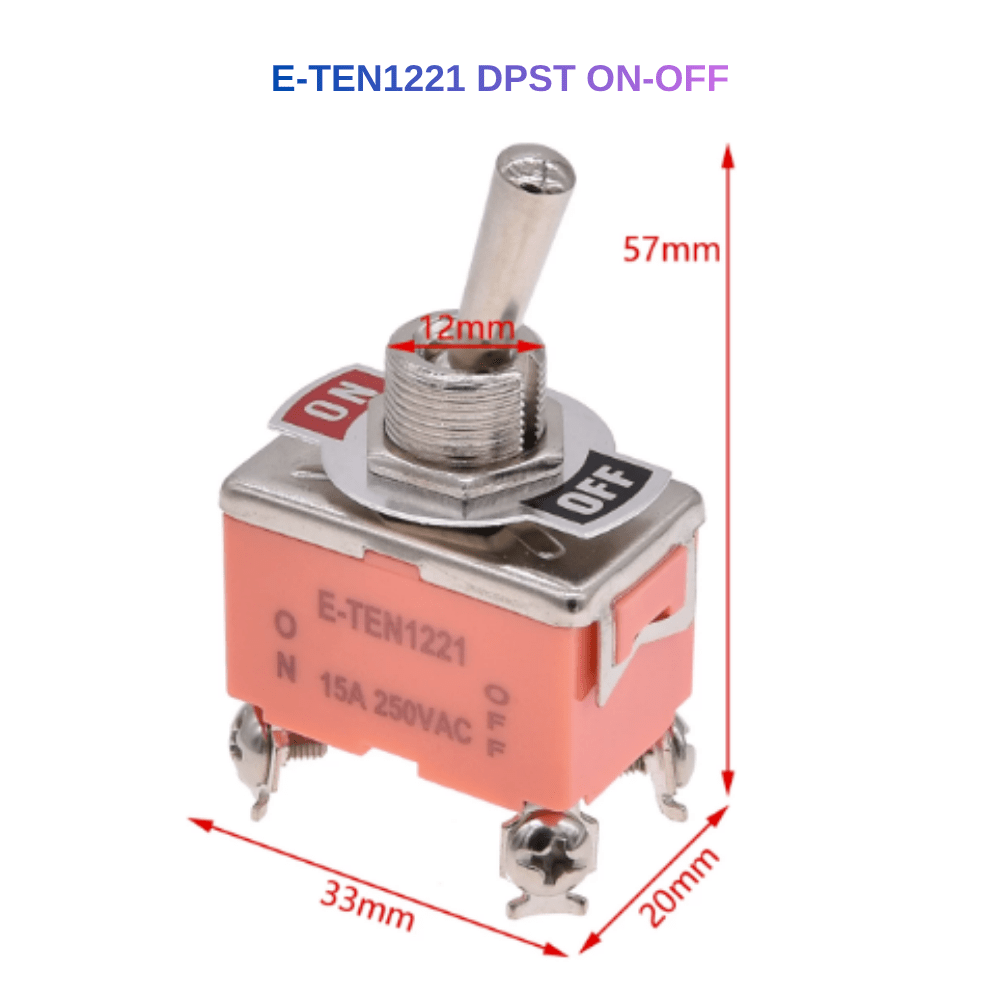

   • DPST (4 Pins)  – Controls two independent circuits with simultaneous ON/OFF switching.
   • DPDT (6 Pins) – Controls two independent circuits simultaneously.
2. Choose the switching function
   • ON-OFF
   • ON-ON

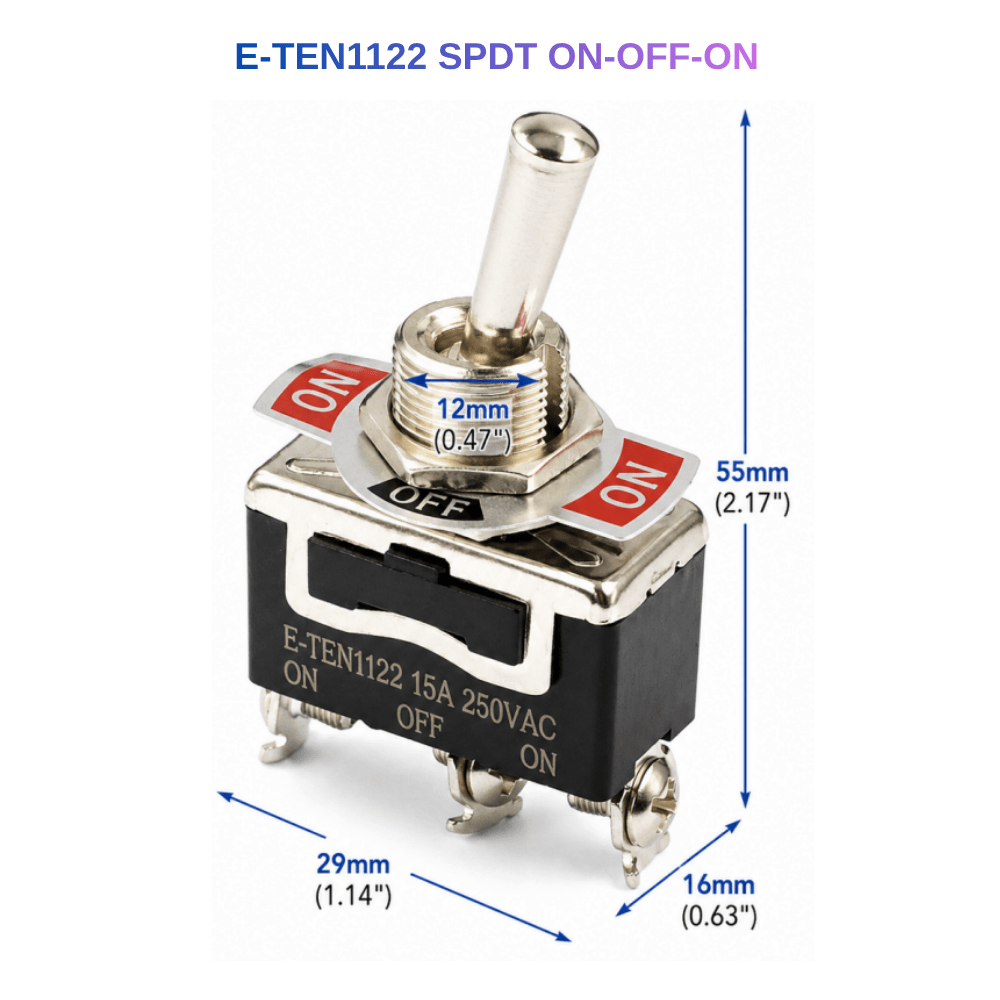

   • ON-OFF-ON

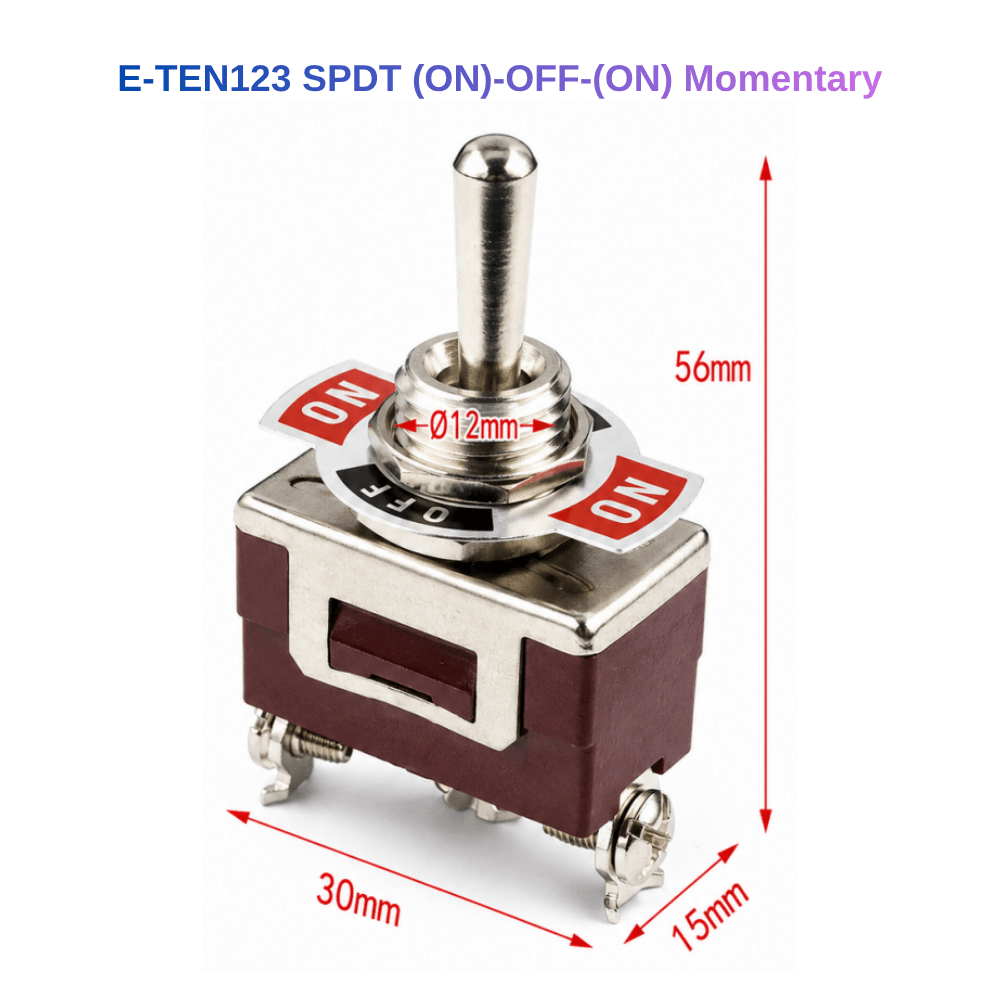

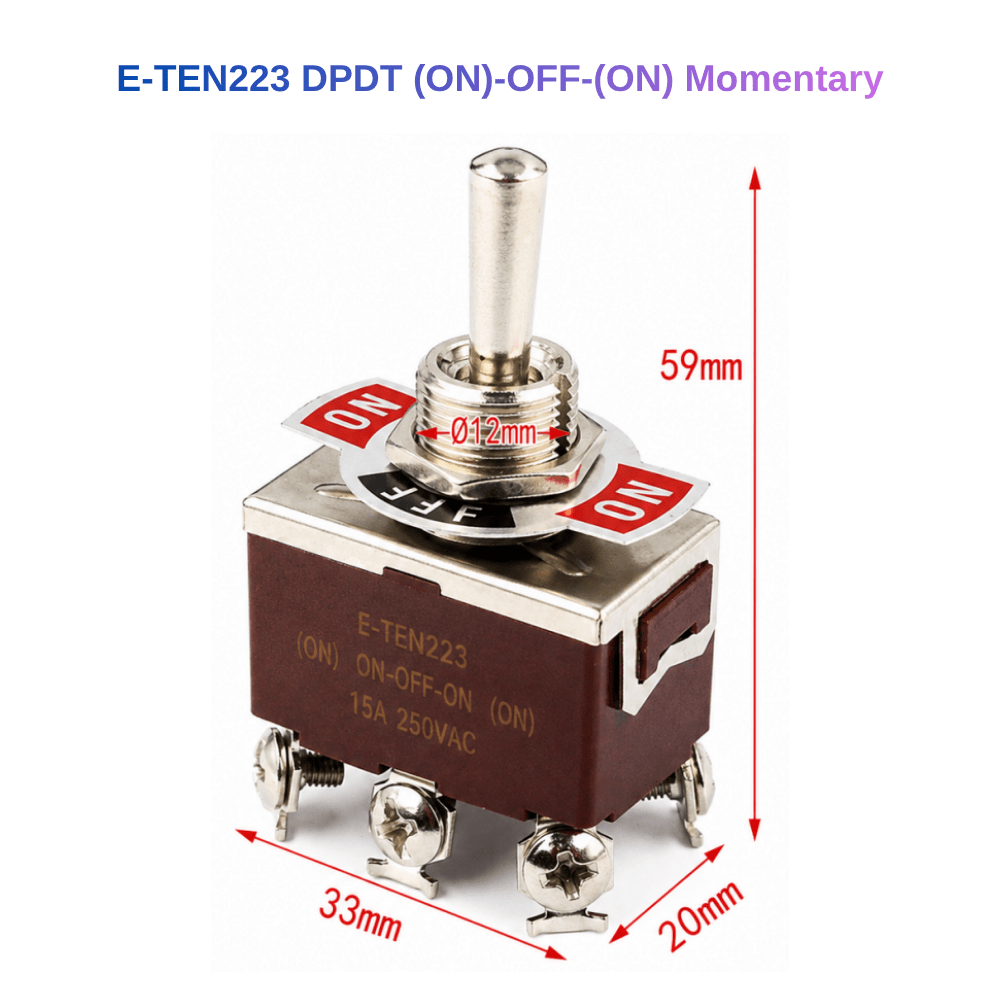

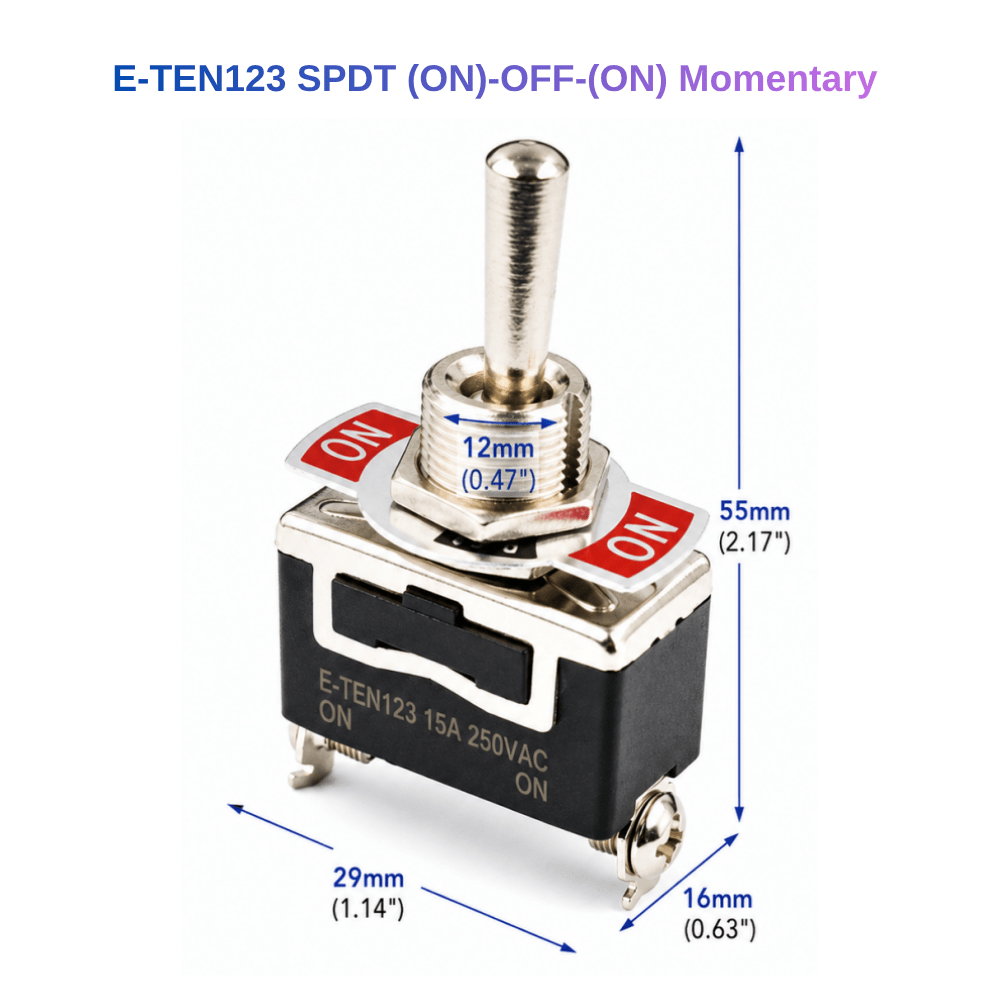

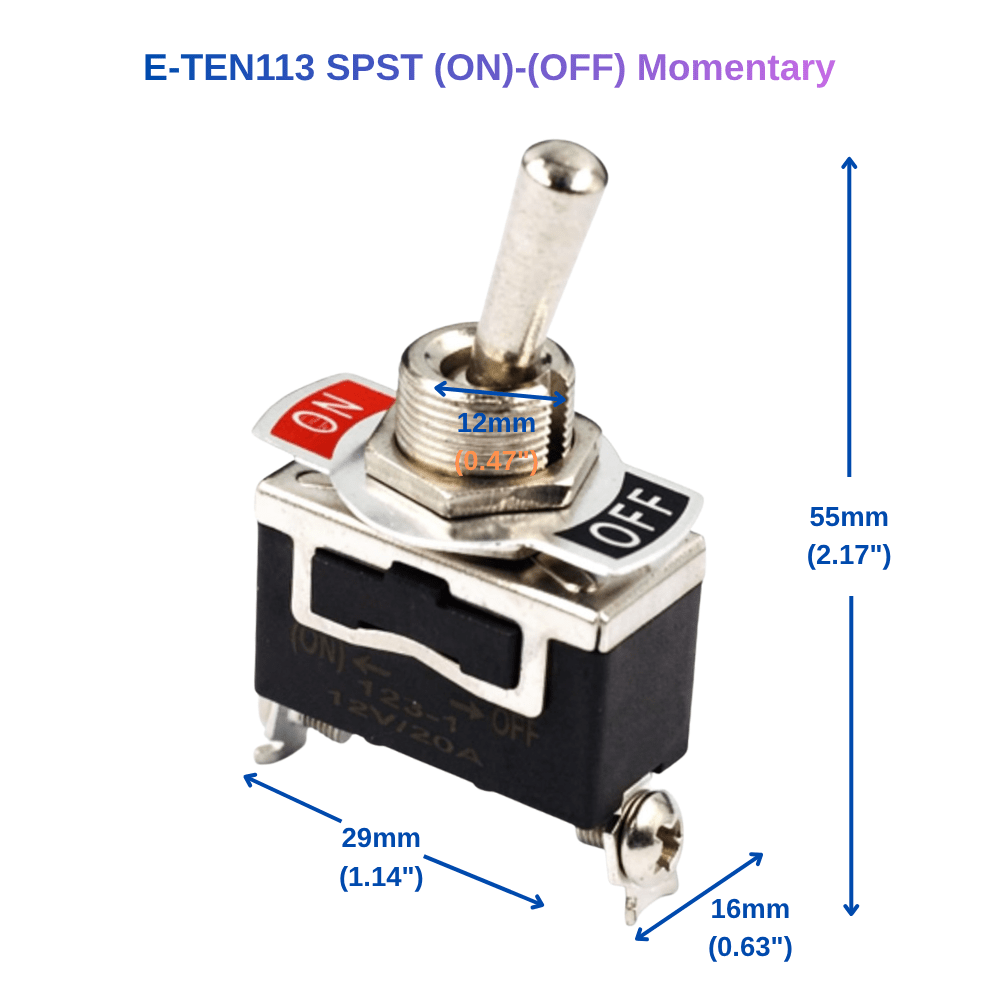

   • Momentary (Spring Return)
3. Select the operation type
   • Maintained (Self-Locking) – The lever stays in position after switching.
   • Momentary – The lever automatically returns when released.
4. Choose the contact material
   • Silver Alloy – Best conductivity and longest service life.
   • Copper Alloy – Excellent balance of performance and value.
   • Steel – Economical solution for general-purpose switching.
5. Select the housing
   • Orange Flame-Retardant Nylon
   • Red Flame-Retardant Nylon
   • Black Phenolic (Bakelite)

Model Selection Guide

Choosing the correct Mini Toggle Switch is simple once you understand the model numbering system.

All models are available in selected housing colors and contact material combinations depending on the specific product variant.

---

Waterproof Protection

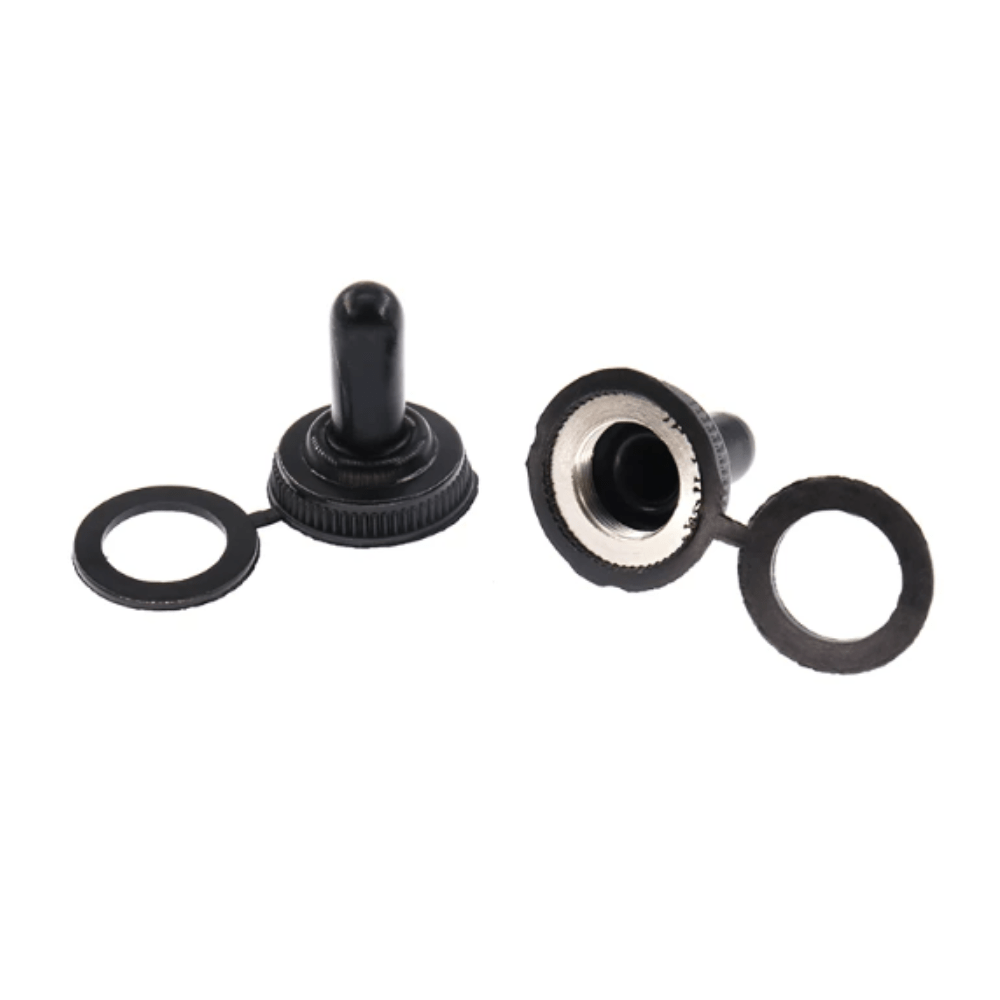

For outdoor or harsh environments, an optional Waterproof Rubber Boot is available.

When installed correctly, the waterproof boot helps protect the switch from:

• Water splashes
• Dust
• Dirt
• Oil mist
• Moisture

This accessory is highly recommended for automotive, marine, agricultural machinery, outdoor control panels, and industrial equipment.

---

Applications

Our Mini Toggle Switch series is widely used in both commercial and industrial applications, including:

• Industrial Control Panels
• Automotive Electrical Systems
• Marine Electronics
• Agricultural Machinery
• Power Supply Equipment
• Instrumentation
• Test Equipment
• Robotics
• Arduino Projects
• DIY Electronics
• LED Lighting Systems
• Audio Equipment
• Communication Devices
• Battery Management Systems
• Renewable Energy Equipment
• Automation Control Cabinets

---

Why Choose Our Mini Toggle Switch?

With more than twenty available models, our Mini Toggle Switch family provides engineers and manufacturers with greater flexibility than standard toggle switches.

Instead of purchasing different switch series from multiple suppliers, you can select the exact circuit configuration, switching function, housing material, and contact type from one product family.

Whether your project requires a Panel Mount Toggle Switch for industrial machinery, a Metal Toggle Switch for automotive wiring, or a DPDT Toggle Switch for complex control circuits, this series offers a reliable and cost-effective solution.

Each switch is carefully manufactured to provide consistent electrical performance, smooth mechanical operation, and dependable long-term reliability for professional and DIY applications alike.

Package Includes

• 1 × Mini Toggle Switch (Selected Model)

or

• 1 × Waterproof Rubber Boot (Selected Option)

---

FAQ

Q1: What is the difference between SPST, SPDT, and DPDT Mini Toggle Switches?

SPST controls a single circuit with basic ON/OFF functionality. SPDT allows one circuit to switch between two outputs, while DPDT controls two separate circuits simultaneously, making it ideal for more complex electrical systems.

---

Q2: What is the difference between Maintained and Momentary switches?

A Maintained (Self-Locking) switch remains in its selected position after being operated. A Momentary switch automatically returns to its original position once the lever is released, making it suitable for temporary control functions.

---

Q3: Which contact material should I choose?

For industrial equipment or frequent switching, Silver Alloy Contacts are recommended due to their superior conductivity and durability. Copper Alloy Contacts provide excellent value for general applications, while Iron Contacts are suitable for cost-sensitive projects.

---

Q4: Are these Mini Toggle Switches waterproof?

The switches themselves are not waterproof. However, when fitted with the optional Waterproof Rubber Boot, they gain improved protection against dust and water splashes, making them suitable for automotive, marine, agricultural, and outdoor equipment.

---

Q5: How can I identify the correct E-TEN model?

Each model number represents a specific combination of circuit configuration and switching function.

For example:

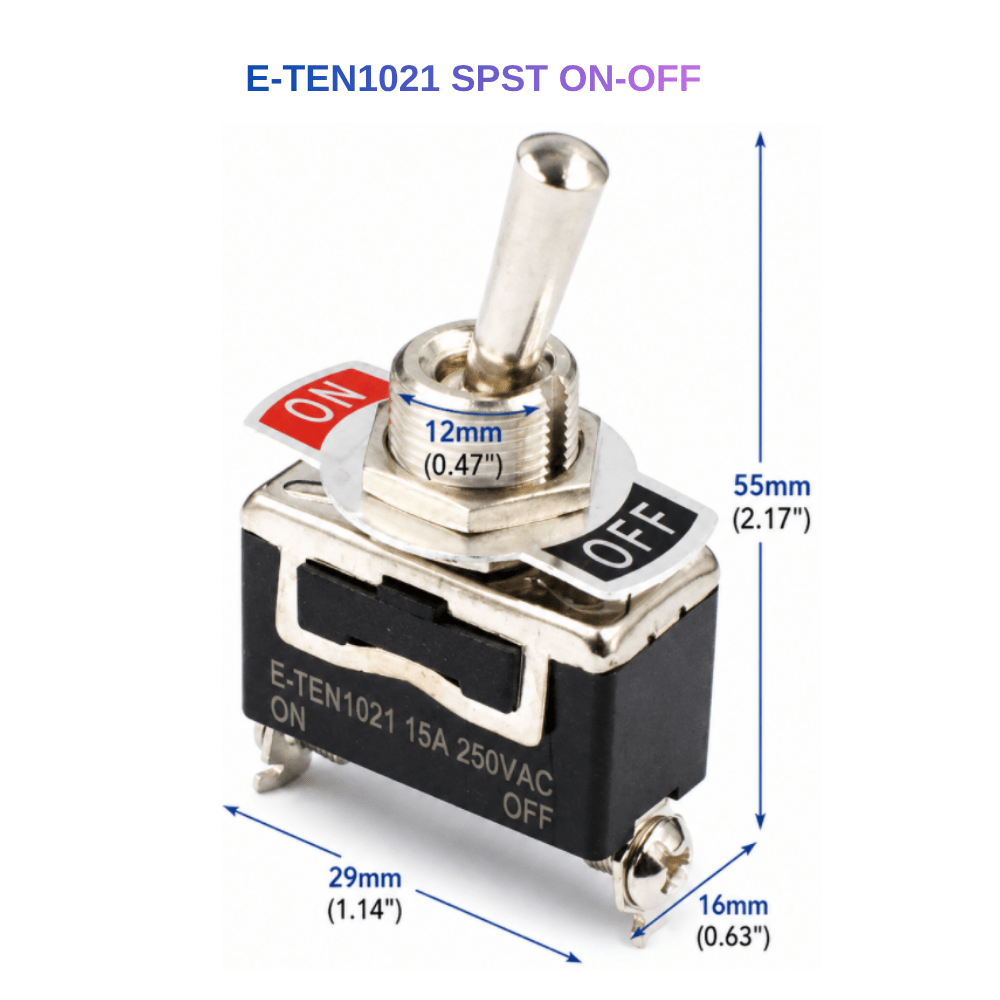

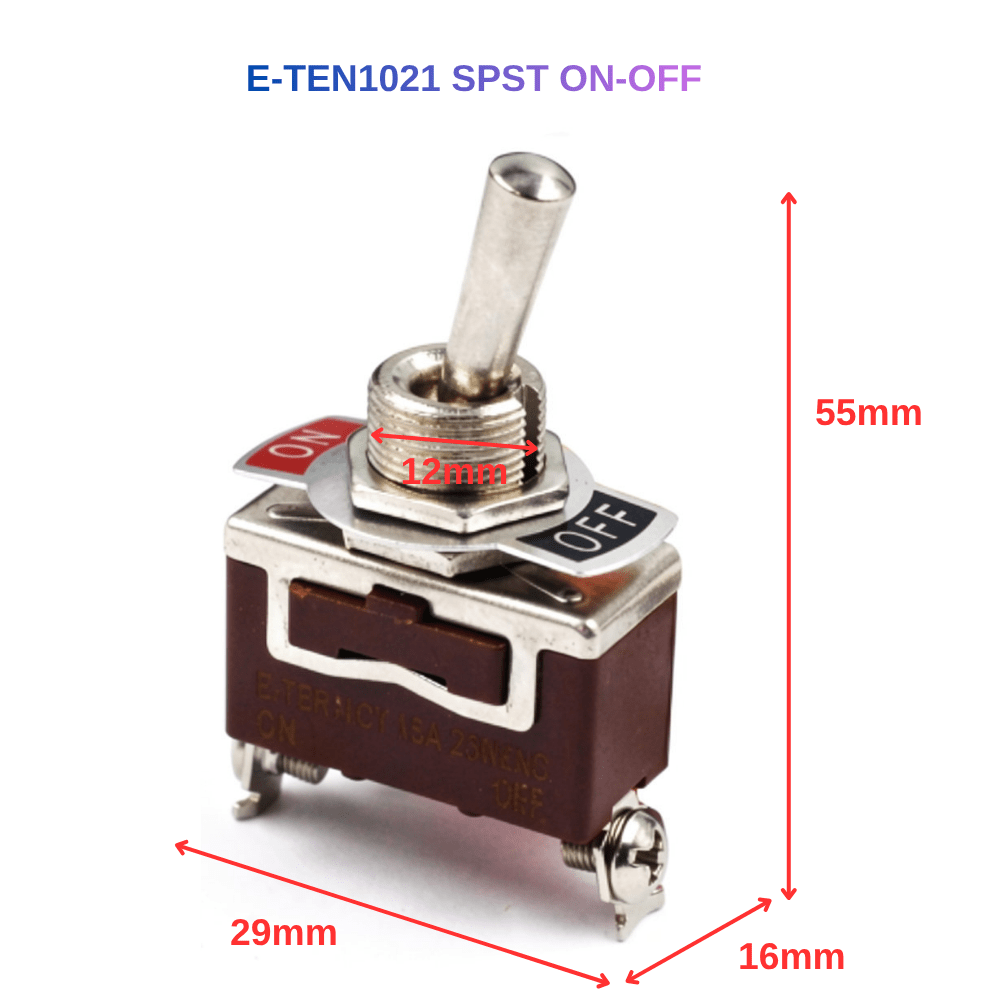

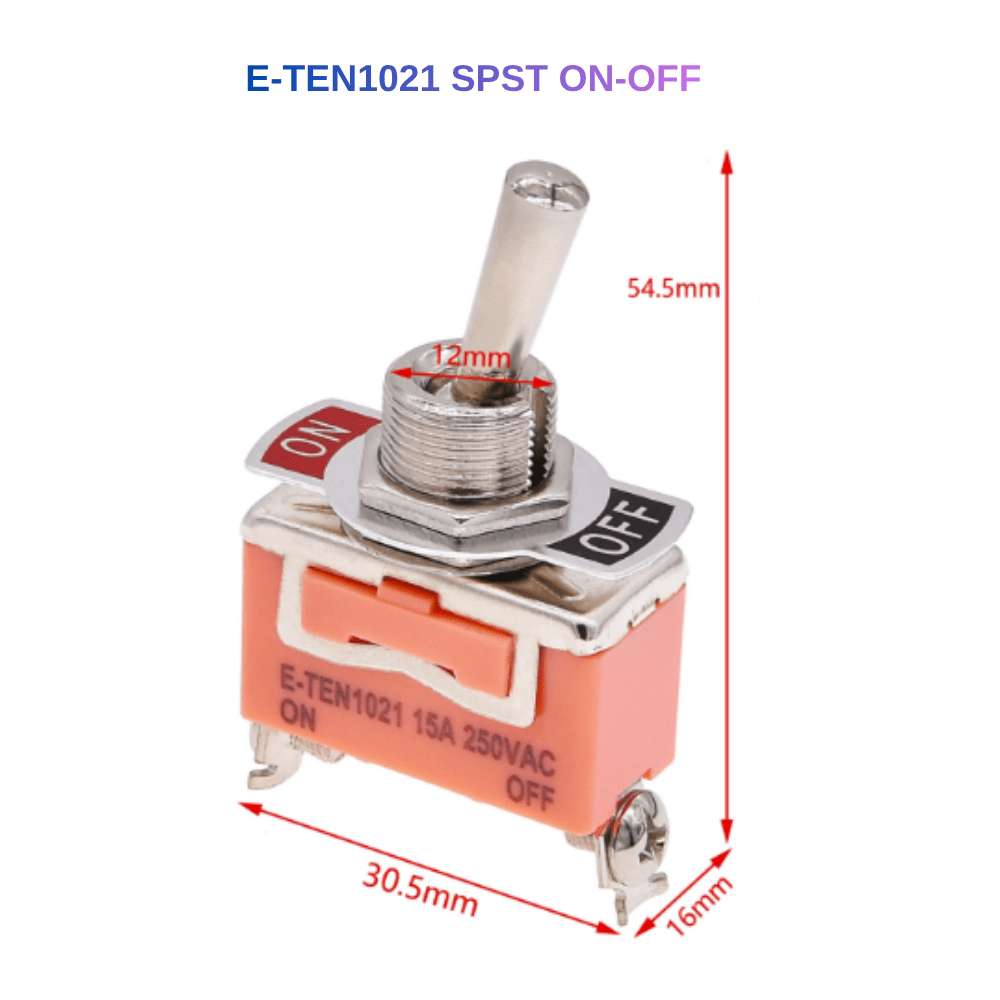

• E-TEN1021 – SPST ON-OFF

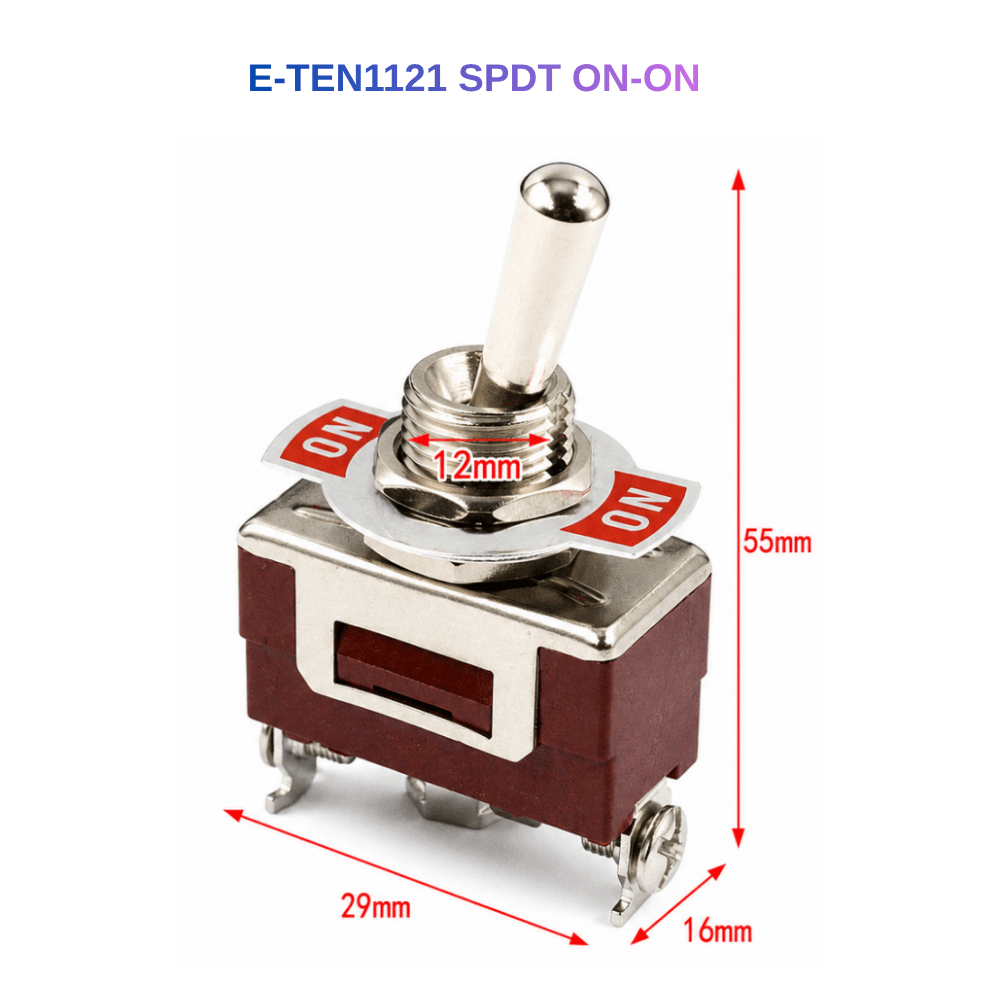

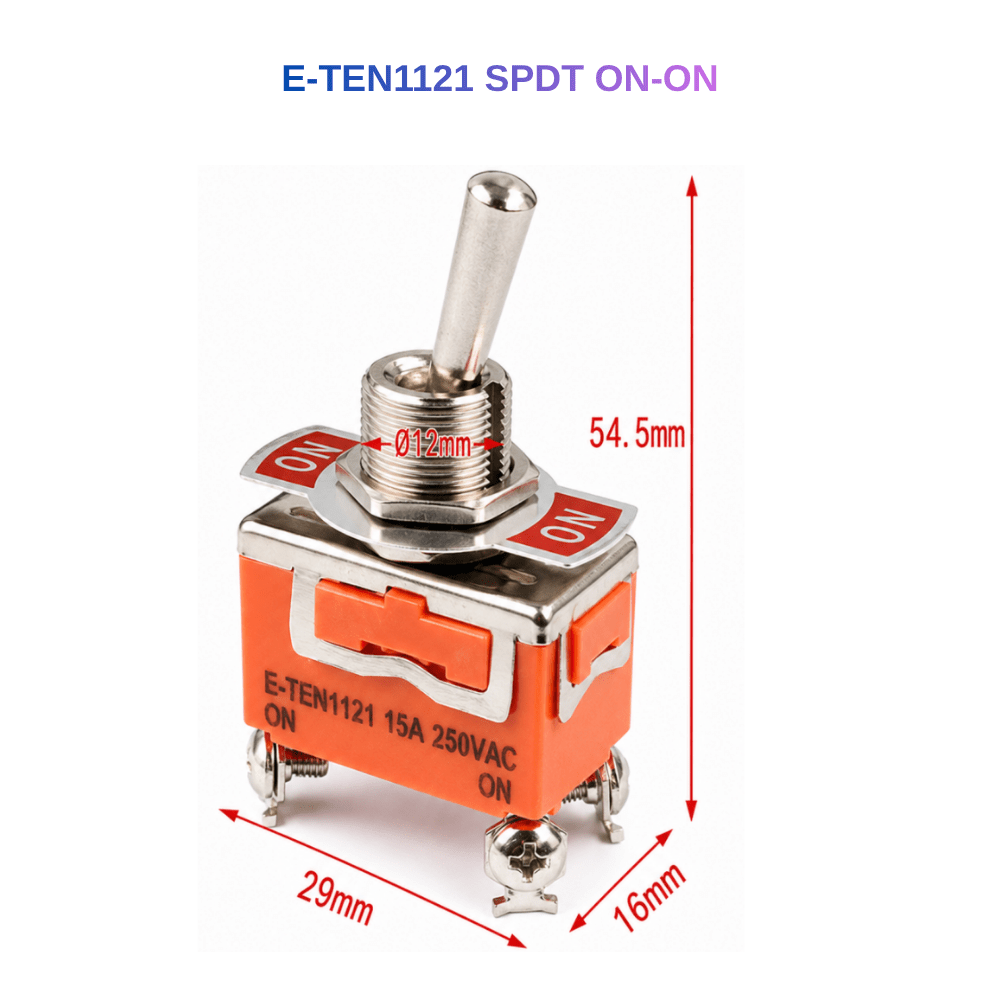

• E-TEN1121 – SPDT ON-ON

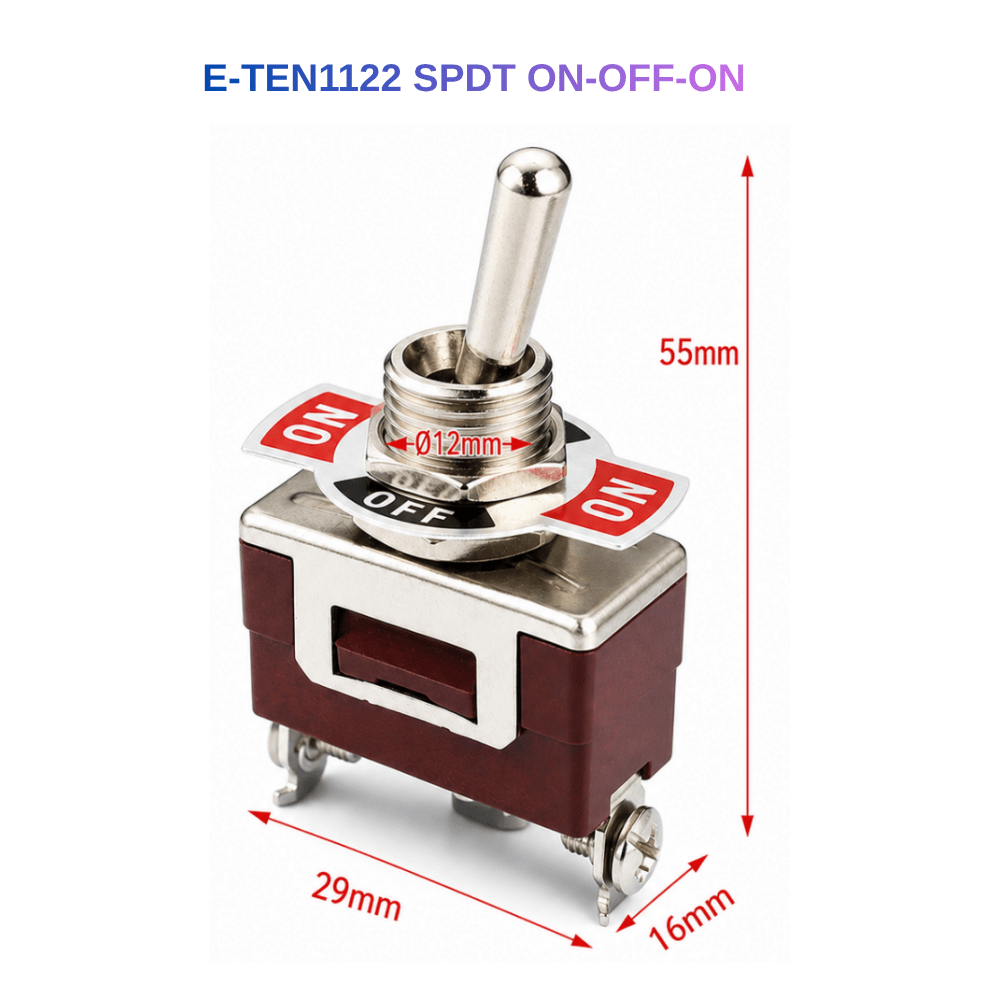

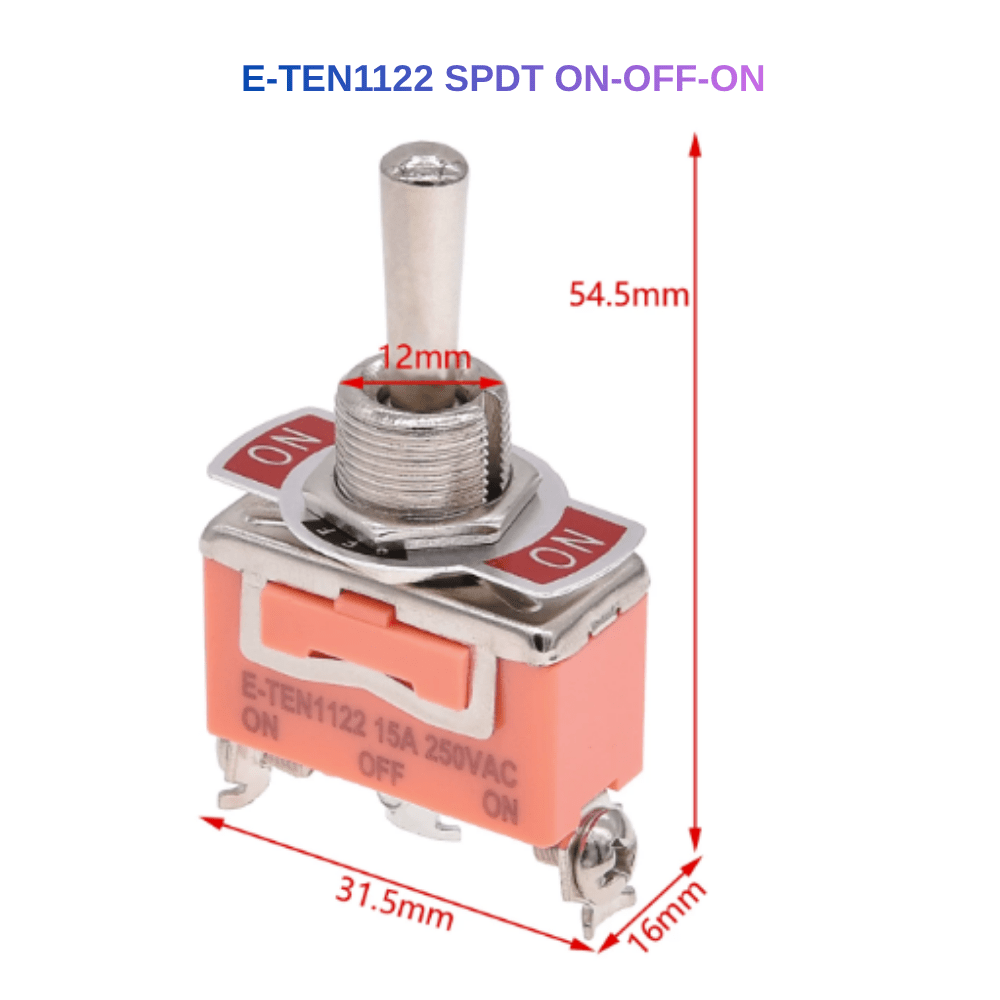

• E-TEN1122 – SPDT ON-OFF-ON

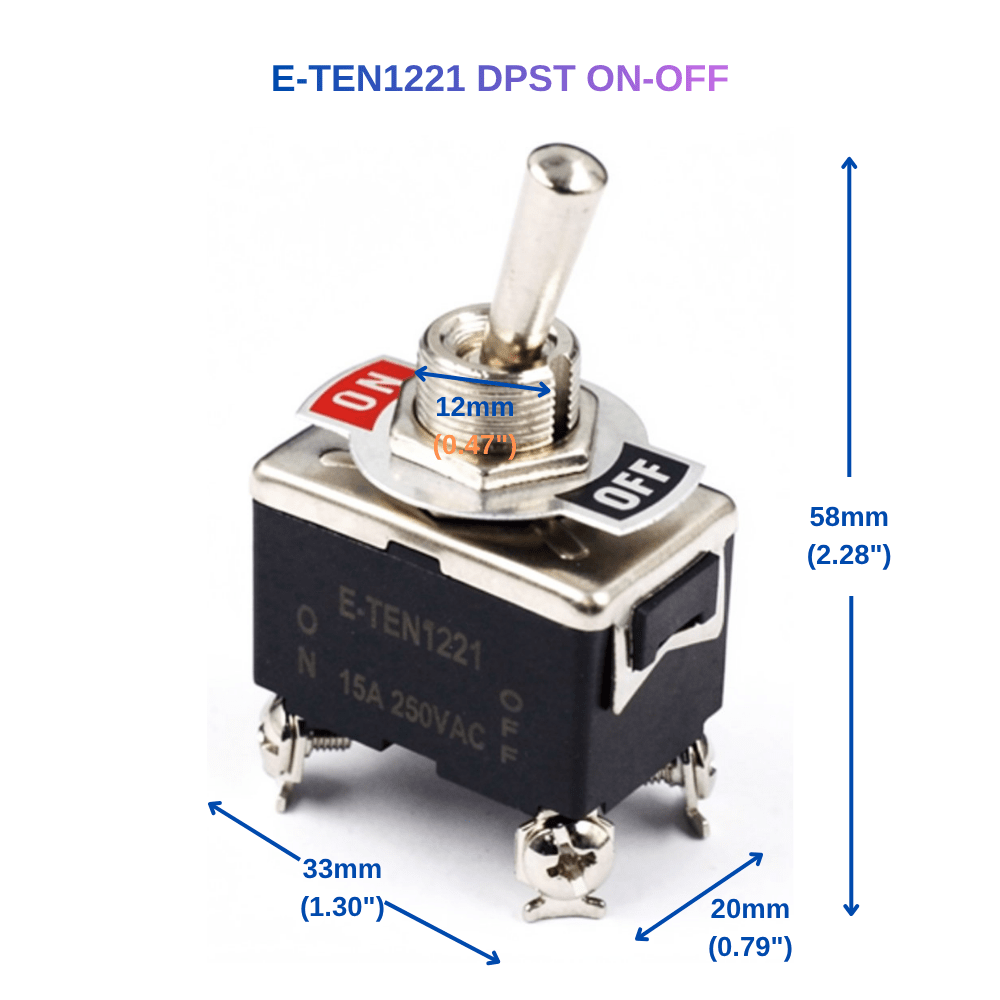

• E-TEN1221 – DPST ON-OFF

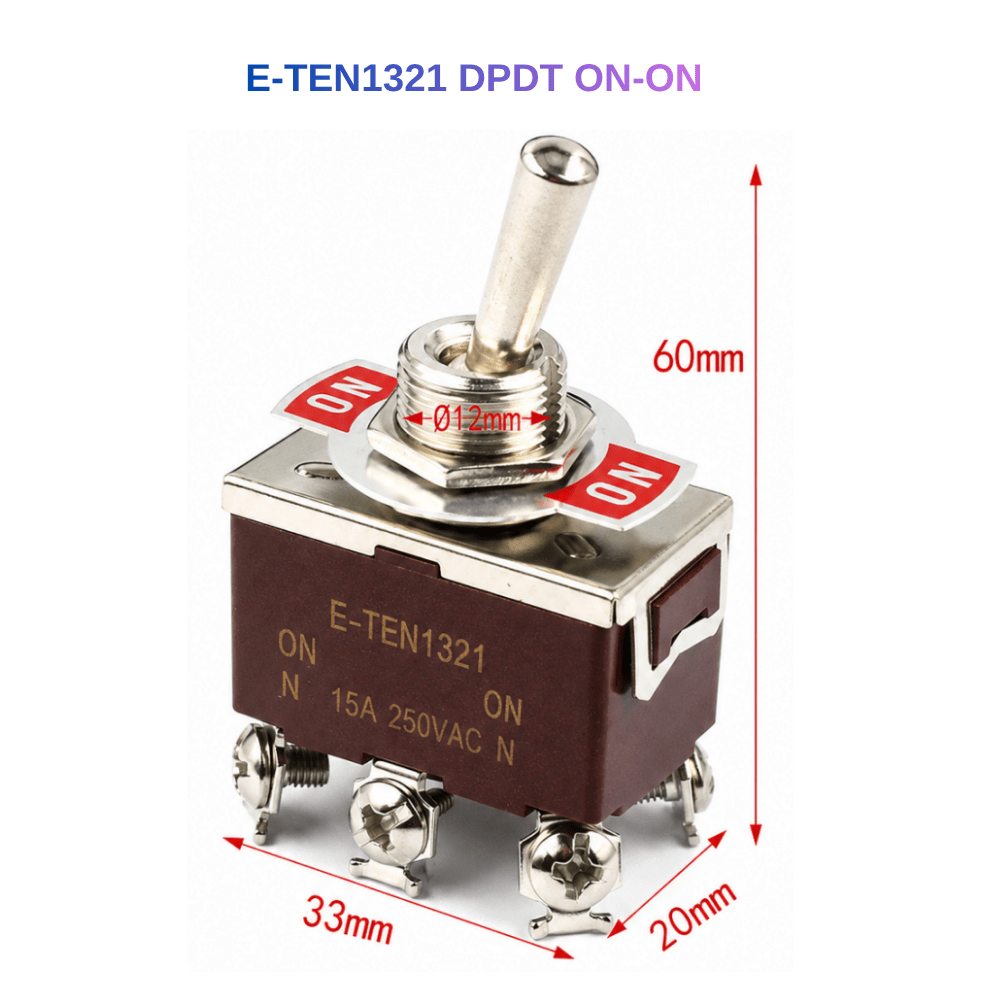

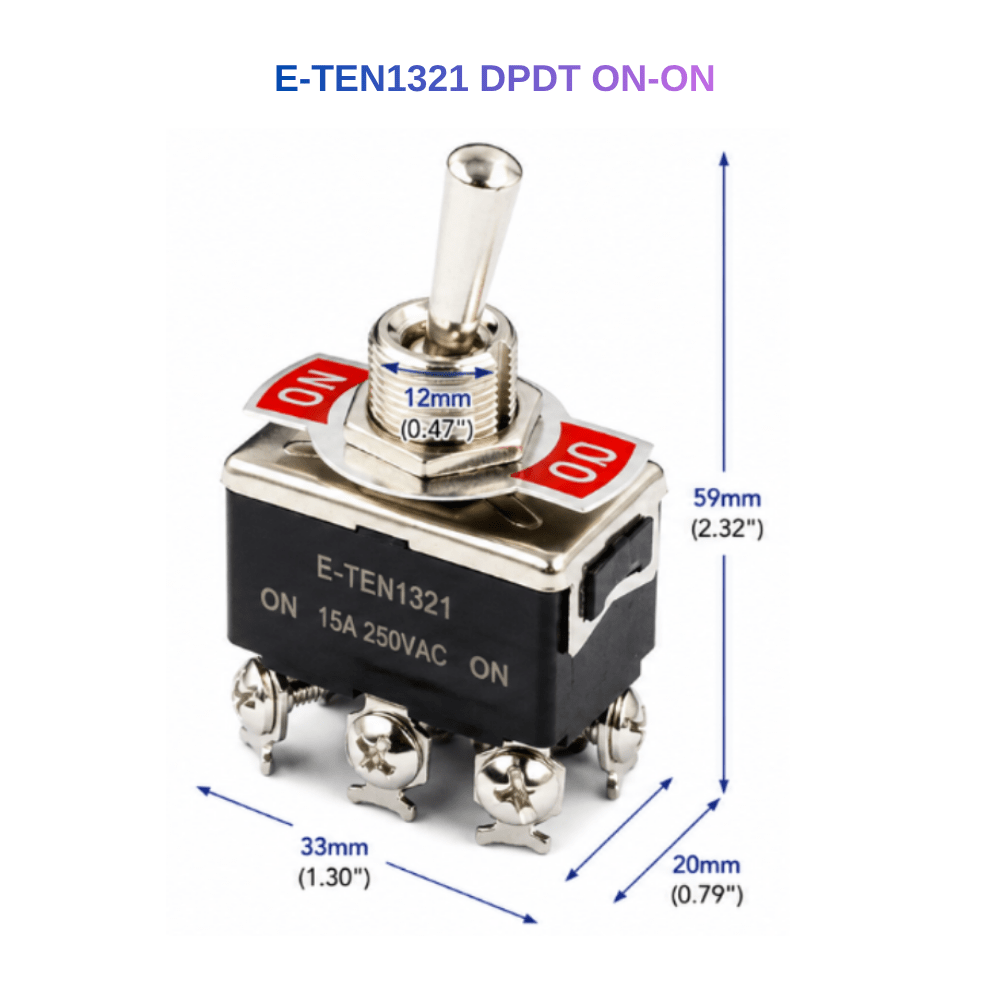

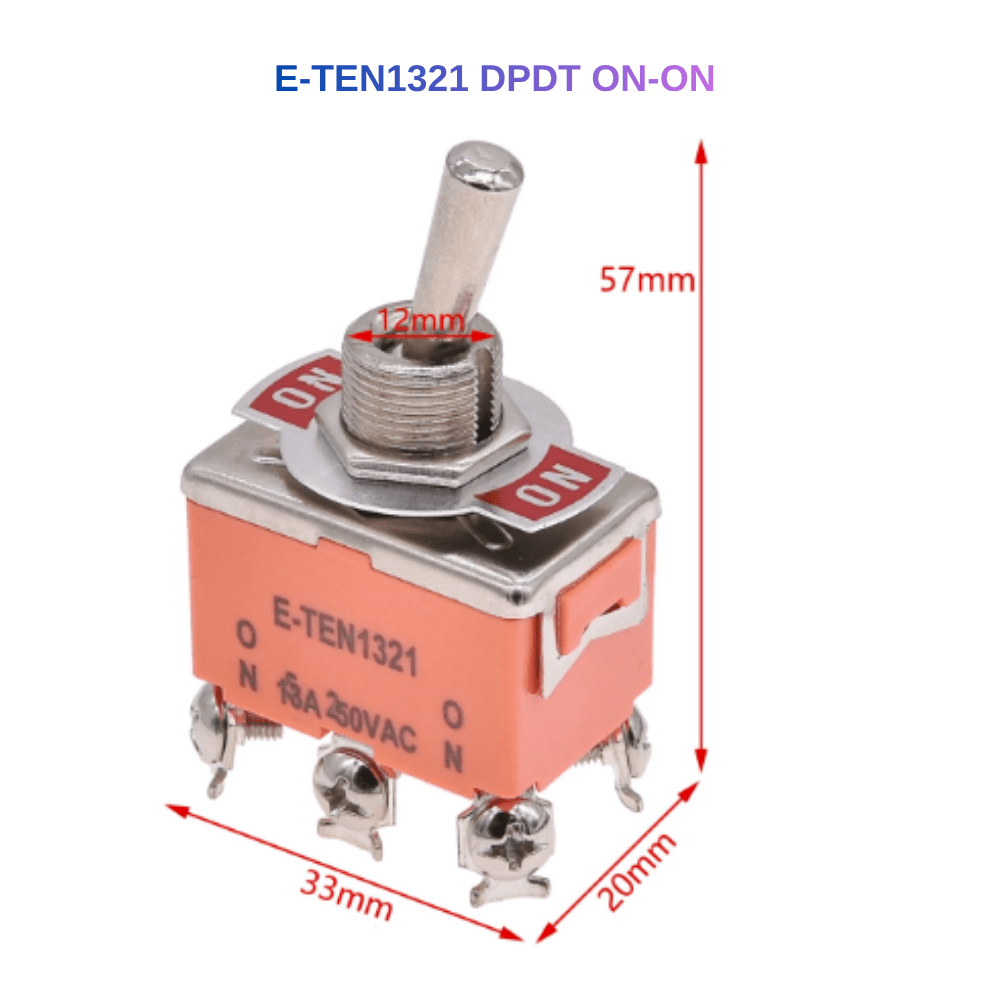

• E-TEN1321 – DPDT ON-ON

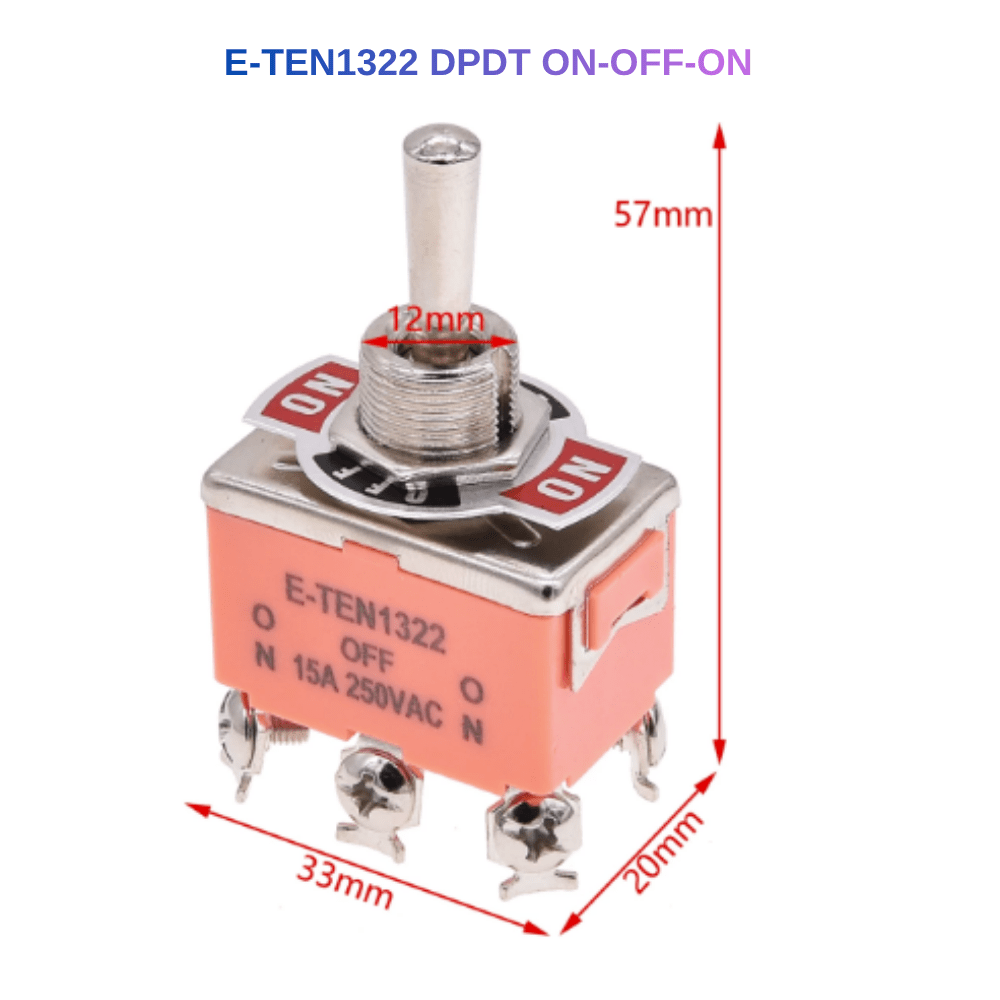

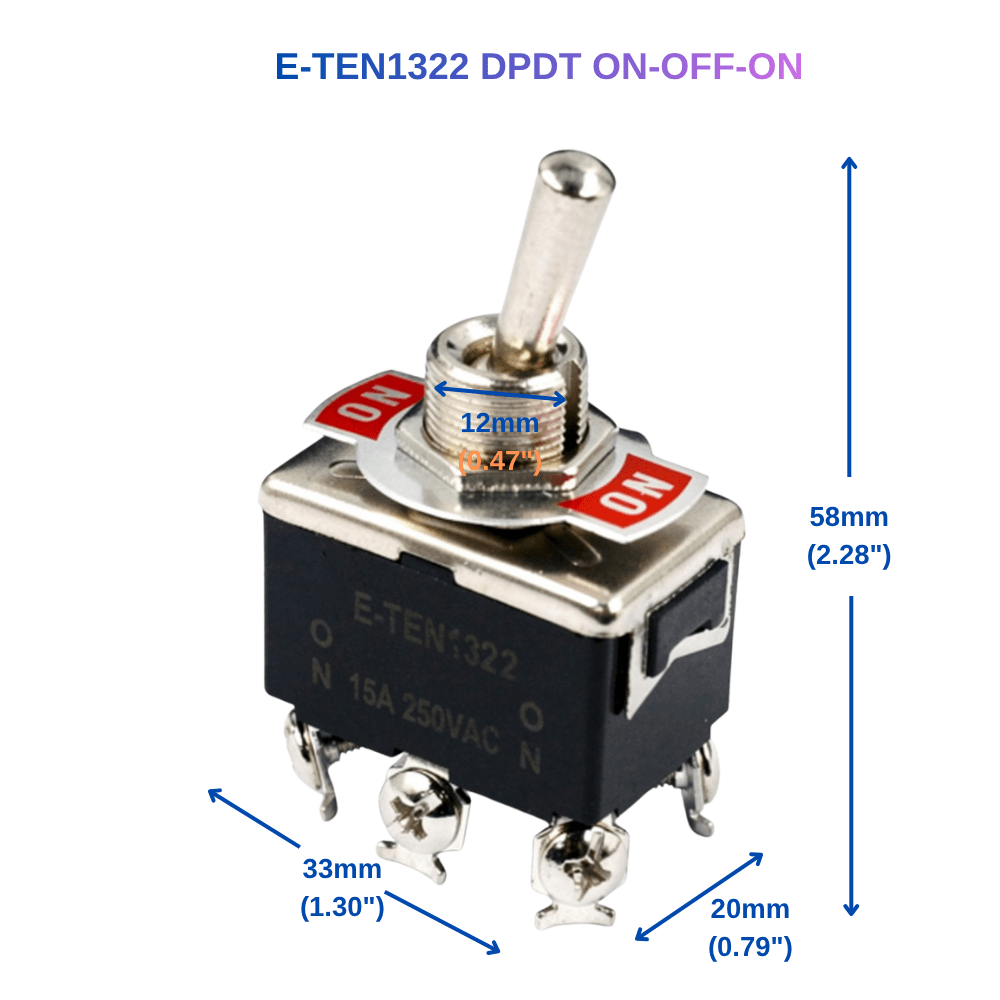

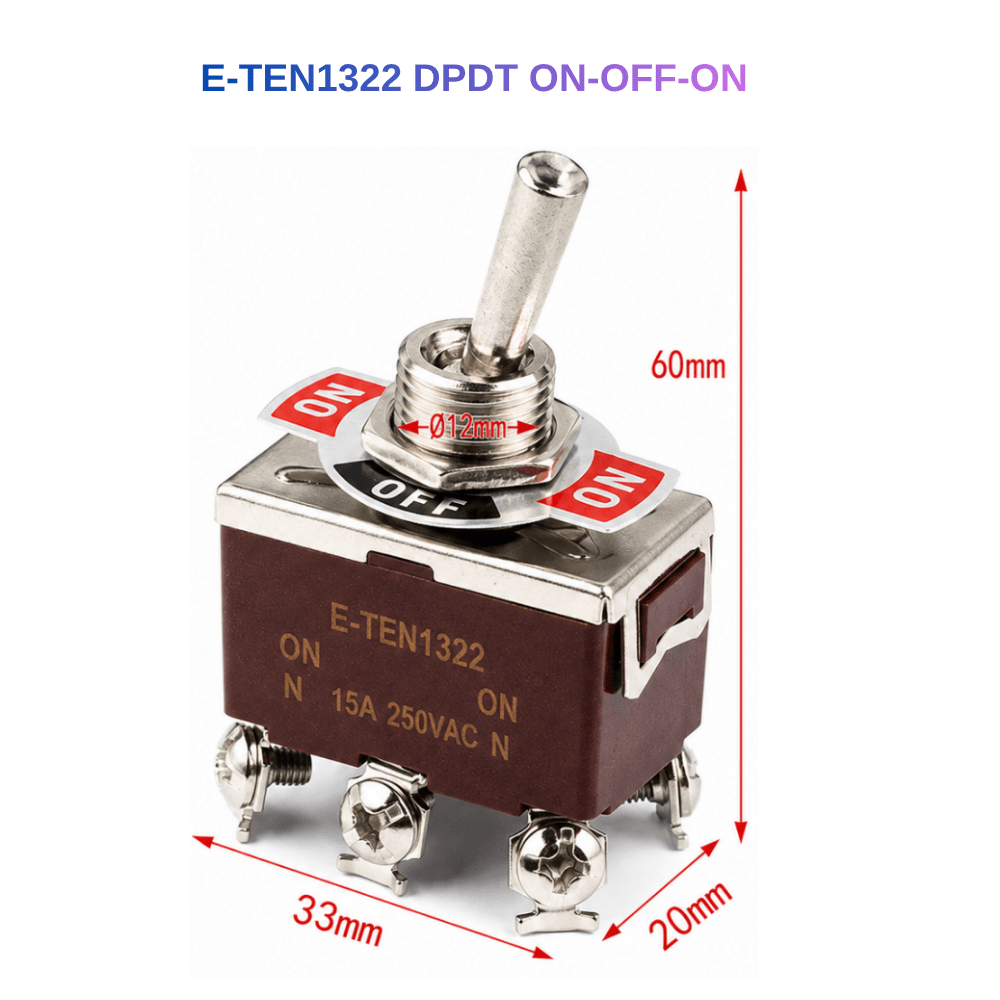

• E-TEN1322 – DPDT ON-OFF-ON

If you are unsure which model best fits your application, please contact our technical support team for assistance.

---

Related Products

To complete your control panel or electrical project, you may also be interested in our Rocker Switches, Push Button Switches, Micro Switches and Limit Switches. These products are designed to work alongside our Mini Toggle Switch series and help create reliable, professional electrical control systems.

---
