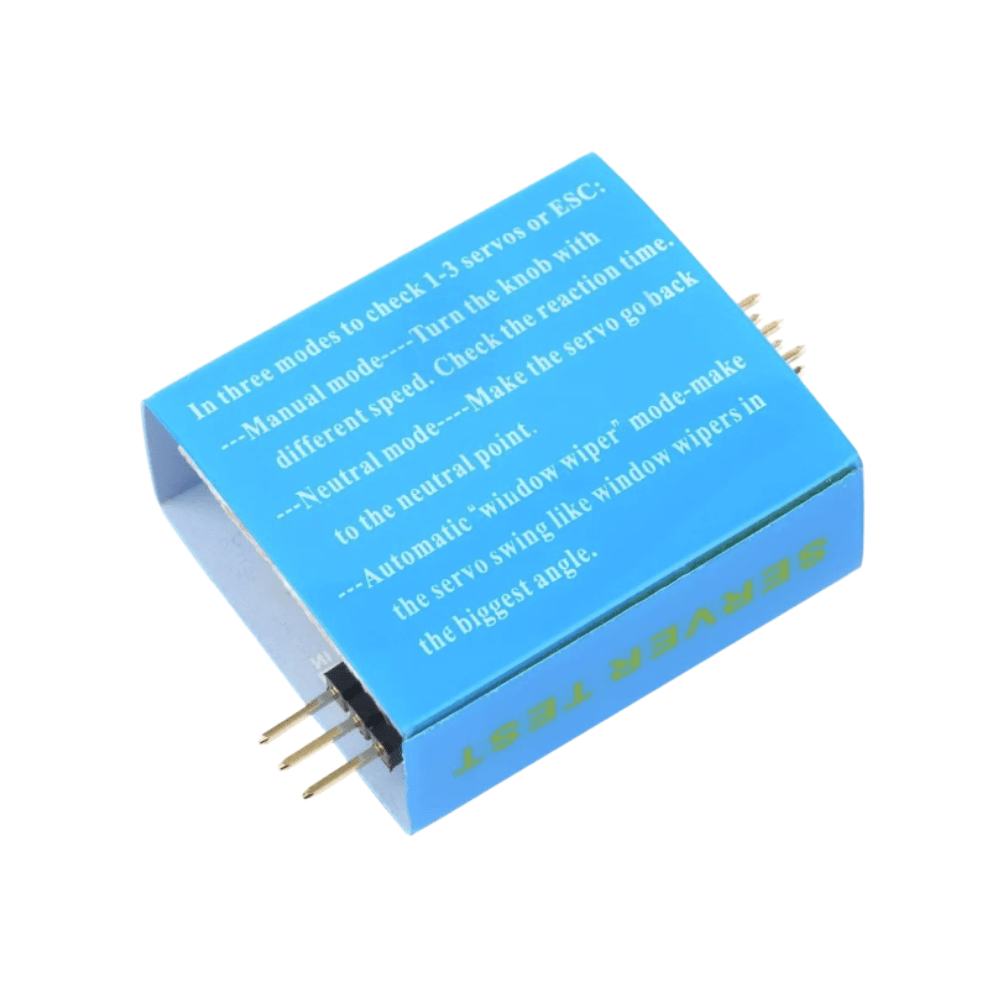

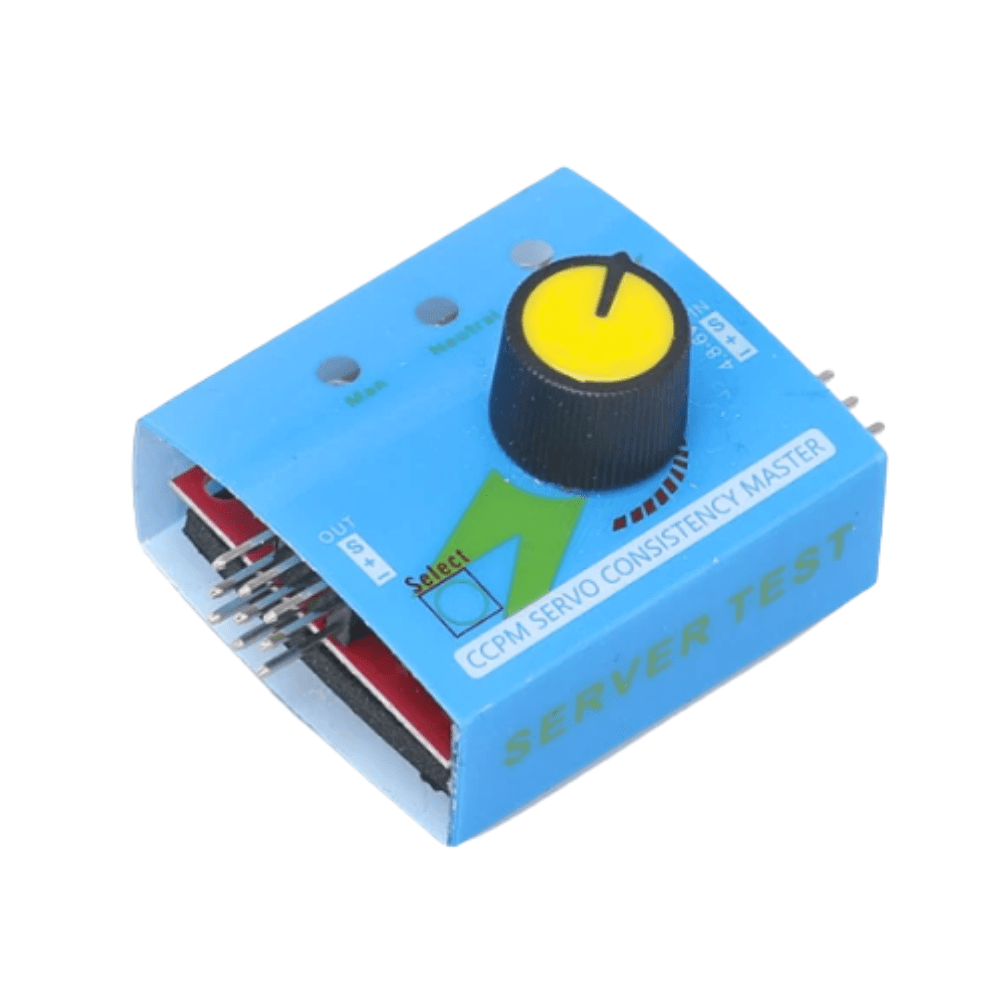

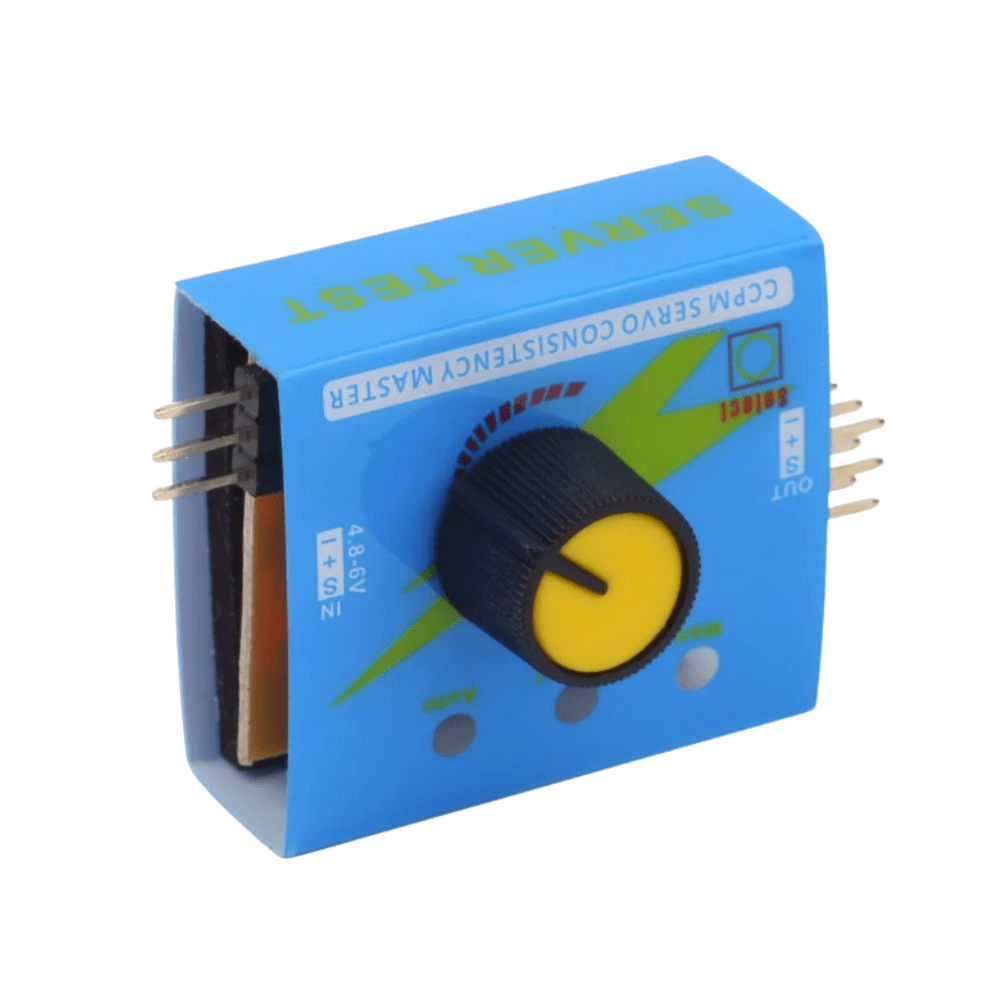

RC Servo Tester for Servos, ESC Calibration & Robotics 2 Output

$0.79

This compact Servo Tester is designed for quickly testing, calibrating, and controlling RC servos and electronic speed controllers (ESCs). Perfect for RC airplanes, helicopters, cars, boats, robots, Arduino projects, and servo motor development.

Add to Wishlist
Add to Wishlist

Combine shipping available. Message us for shipping rates.

  • Check Mark Quality Assurance
  • Check Mark Fast Worldwide Shipping
  • Check Mark Buy with Confidence
Categories: , Tags: , ,

Description

Servo Tester for RC Servo Motors & ESC Calibration

A reliable ESC Tester is an essential tool for RC hobbyists, robotics enthusiasts, and electronics developers. This compact RC Servo Tester generates accurate PWM signals for testing servo motors, centering servos, checking travel range, and calibrating ESCs.

Instead of connecting a radio transmitter and receiver, simply power the tester and rotate the control knob to precisely adjust servo position. The tester also supports automatic sweep mode for observing servo movement and identifying performance issues.

Compatible with both analog and digital servos, this tester is suitable for RC aircraft, helicopters, cars, boats, robotic arms, DIY electronics, and educational projects.

Servo Tester Features

  • High-precision PWM signal output
  • Manual servo position adjustment
  • Automatic sweep mode
  • Neutral position (1500μs) mode
  • Supports analog and digital servos
  • Compatible with most RC ESCs
  • Compact and lightweight design
  • Easy plug-and-play operation
  • Stable and reliable signal generation
  • Ideal for RC maintenance and troubleshooting

Specifications

Item Specification
Product Name Servo Motor Tester
Operating Voltage DC 4.2V–6.0V
Operating Current ≤15mA (5V)
PWM Output 1.5ms ± 0.5ms
Operating Modes Manual / Automatic / Neutral
Servo Compatibility Analog & Digital Servos
ESC Compatibility Yes
Signal Type PWM
Dimensions 48 × 42 × 17 mm
Weight Approx. 8g
Housing Color Blue PCB

Applications

The PWM Servo Tester is widely used for:

  • RC Airplanes
  • RC Helicopters
  • RC Cars
  • RC Boats
  • Fixed-wing Aircraft
  • Robotics
  • Robotic Arms
  • Arduino Servo Projects
  • STEM Education
  • DIY Electronics
  • Servo Maintenance
  • ESC Calibration

Package Includes

  • 1 × Servo Tester

Why Choose This Tester?

  • No transmitter or receiver required
  • Quickly identify faulty servos
  • Accurately center servos before installation
  • Test servo rotation smoothly
  • Supports ESC throttle signal simulation
  • Small size for field maintenance
  • Easy operation for beginners and professionals

FAQ

Q1: What can this Tester do?

It can test RC servos, center servos, simulate PWM control signals, and calibrate compatible ESCs.

Q2: Does it support both analog and digital servos?

Yes. The Tester works with most standard analog and digital RC servos.

Q3: Can I use it to test ESCs?

Yes. It can generate throttle signals for testing and calibrating most RC electronic speed controllers.

Q4: Does it require a radio transmitter?

No. The Tester operates independently and does not require a transmitter or receiver.

Q5: What operating modes are available?

The tester provides three modes:

  • Manual Mode
  • Automatic Sweep Mode
  • Neutral Position Mode (1500μs)
