Description

5-in-1 Wire Winding Tool for DIY Coil Building

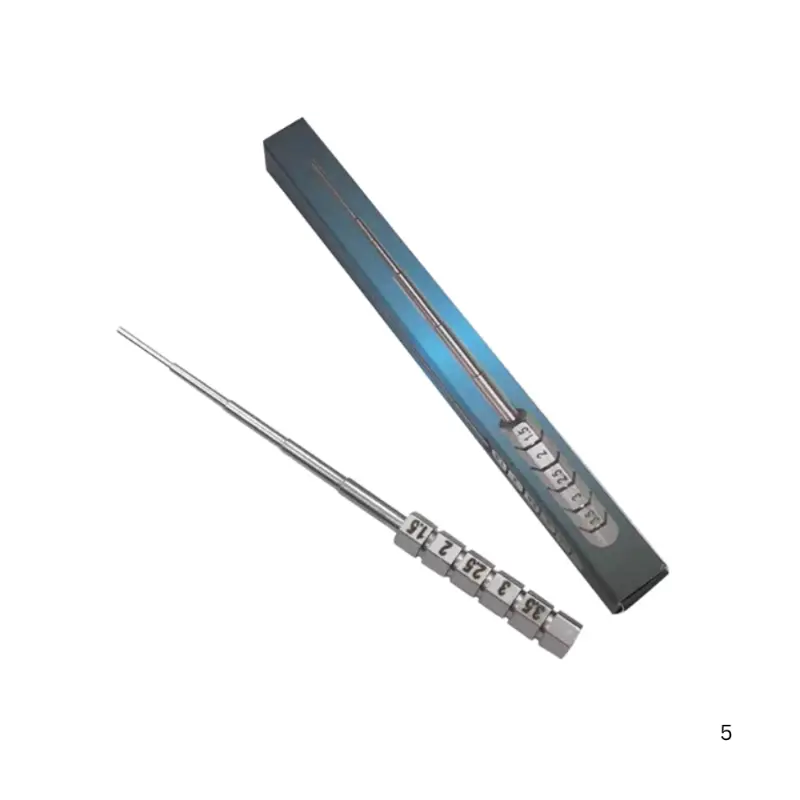

The Wire Winding Tool is a compact multi-diameter tool designed for manually forming wire into neat and consistent coils. Instead of carrying several separate winding rods, this tool combines five different winding diameters on a single stainless steel rod.

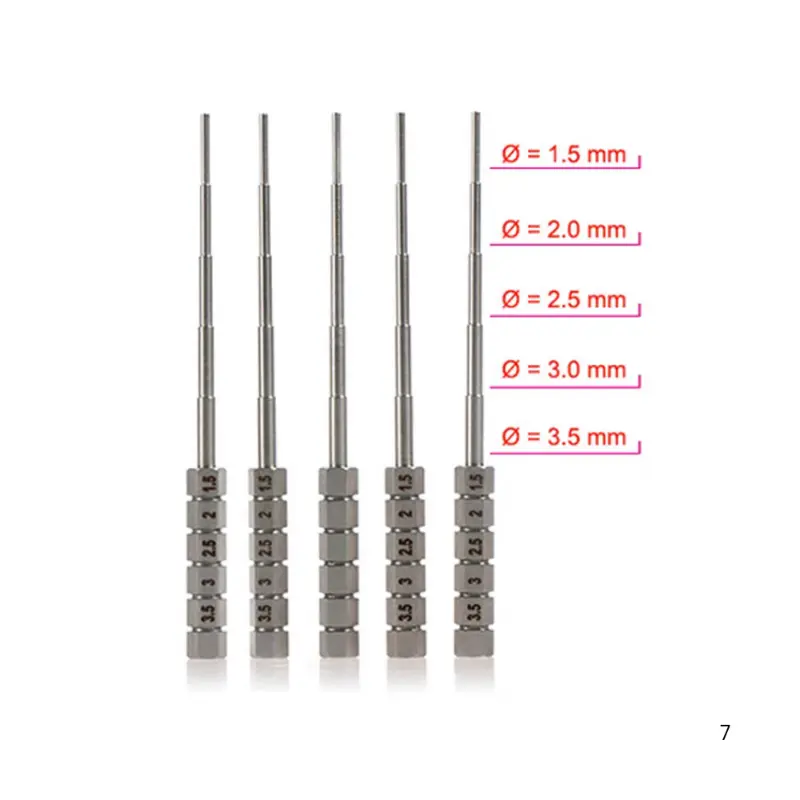

The five winding sections are 1.5mm, 2.0mm, 2.5mm, 3.0mm and 3.5mm, allowing you to choose the required coil diameter without changing to another tool.

Its simple stepped design makes it convenient for DIY makers, electronics enthusiasts and users working with resistance wire, heating wire and other suitable wire materials.

---

5 Winding Diameters in One Tool

One of the main advantages of this Wire Winding Tool Rod is its five-in-one design.

The available winding diameters are:

Each section provides a defined diameter for winding, making it easier to create coils with a more consistent inner diameter.

The listed sizes refer to the winding diameter, not the diameter of the wire being used.

---

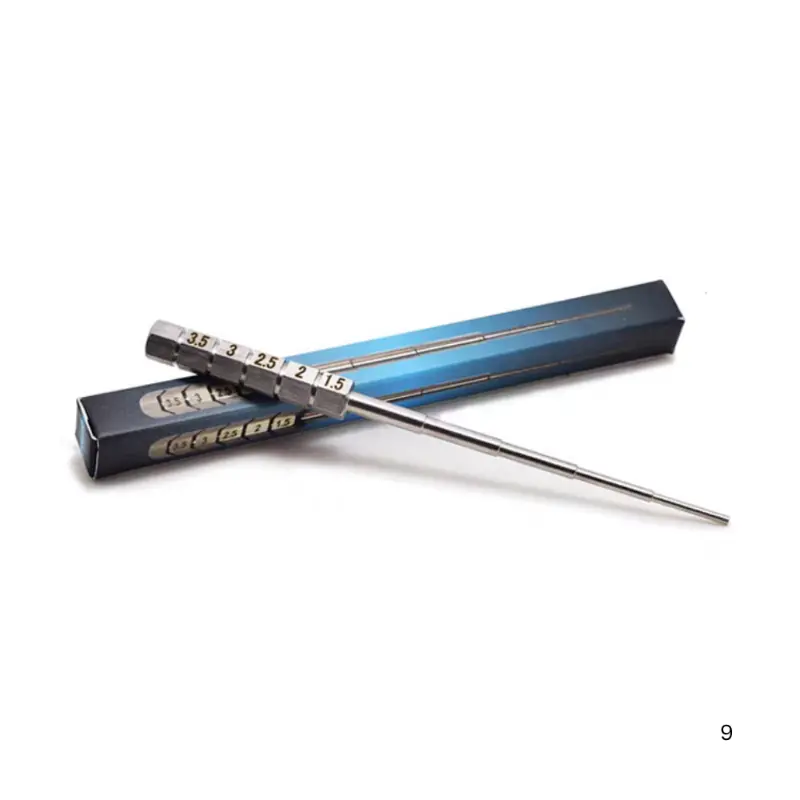

Stainless Steel Wire Winding Tool

Made from stainless steel, this coil winding tool is designed for repeated manual use. The metal construction provides a firm winding surface and makes the tool convenient for use in a workshop, maker space or DIY toolbox.

The compact one-piece design also makes it easier to store and carry than a set of separate winding rods.

---

Easy Manual Coil Winding

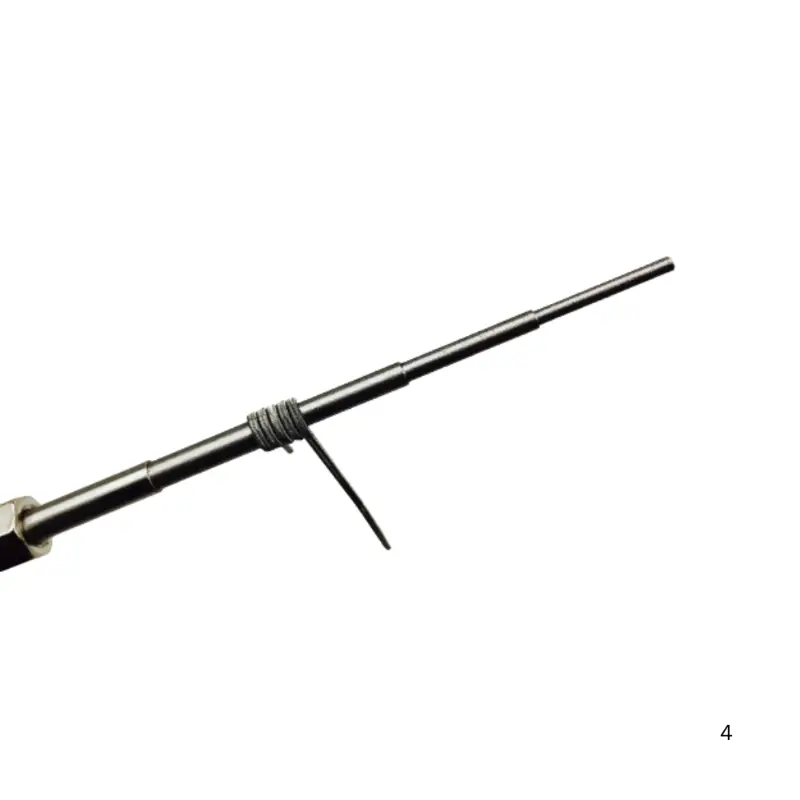

To use the Wire Winding Tool, select the winding section that matches the desired coil diameter and manually wrap the wire around the corresponding section.

The stepped design lets you quickly move between different diameters without replacing the entire tool.

This makes the tool useful when a project requires several coil sizes or when you want to test different winding diameters.

---

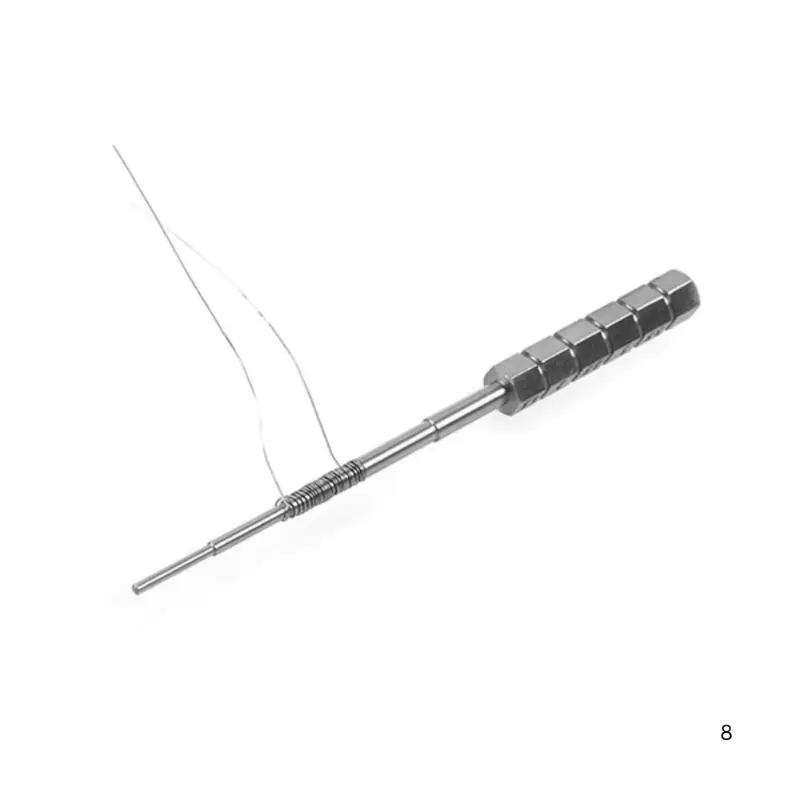

A Practical Coil Jig for DIY Projects

This Coil Jig can be used with suitable resistance wire, heating wire and other wires that need to be formed into a compact coil.

It is especially useful for:

• Wire coil building
• Resistance wire winding
• Heating wire winding
• DIY electronics projects
• Maker projects
• Prototype work
• Small workshop projects
• General wire forming

The five-in-one design provides several commonly used winding diameters in one compact tool.

---

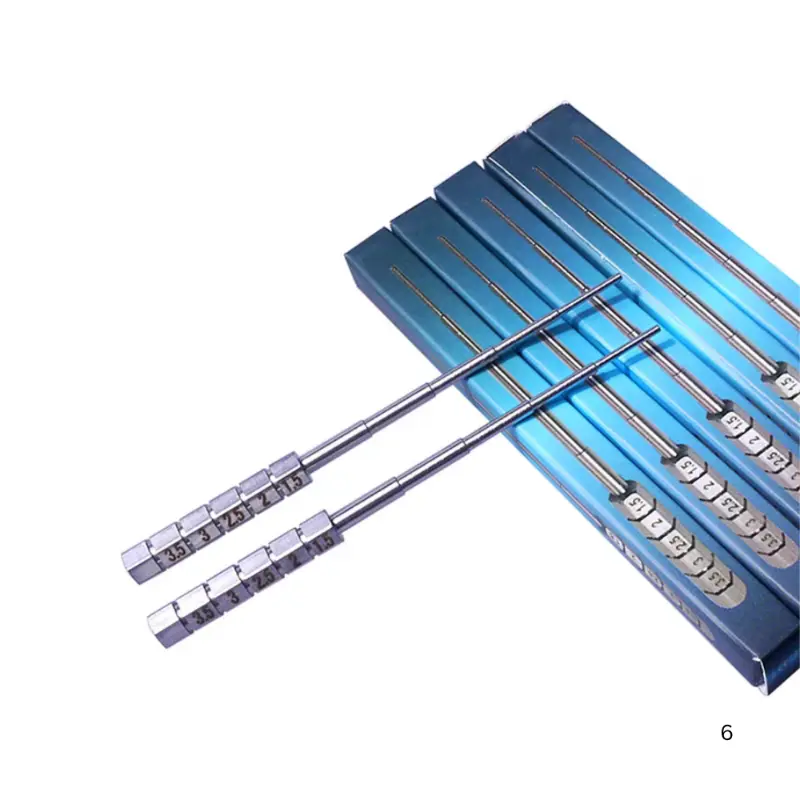

Compact 5-in-1 Design

Instead of purchasing and storing multiple individual winding rods, this 5-in-1 Wire Winding Tool combines five diameters into one tool.

The compact design is easy to keep in an electronics toolbox or workshop drawer and is convenient for users who frequently work with different coil sizes.

---

Specifications

---

Key Features

–> 5-in-1 Multi-Diameter Design
–> Five Winding Sizes: 1.5–3.5mm
–> Stainless Steel Construction
–> One-Piece Compact Tool
–> Easy Manual Operation
–> Suitable for Wire Coil Building
–> Convenient for DIY and Workshop Use

---

Applications

1. Wire Coil Building
2. Resistance Wire Winding
3. Heating Wire Winding
4. DIY Electronics
5. Maker Projects Prototype Development
6. Wire Forming
7. Workshop Applications

---

FAQ

Q1: What is a Wire Winding Tool used for?

A Wire Winding Tool is used to manually form suitable wire into coils with a consistent inner diameter.

Q2: How many winding diameters does this tool have?

This tool has five winding sections: 1.5mm, 2.0mm, 2.5mm, 3.0mm and 3.5mm.

Q3: Are the five diameters separate rods?

No. The five winding diameters are integrated into one multi-section winding rod.

Q4: What is the tool made of?

The tool is made from stainless steel.

Q4: Can I use different wire sizes with this tool?

Yes. The tool is designed to form suitable wire into coils. The selected winding diameter determines the approximate inner diameter of the finished coil.

Q5: What does 1.5mm–3.5mm mean?

These measurements refer to the winding diameter of each section, not the thickness of the wire.

Q6: Is this tool suitable for DIY projects?

Yes. It is suitable for DIY wire winding, maker projects, resistance wire and heating wire applications, and other small workshop tasks.

---

⭐⭐⭐⭐⭐
