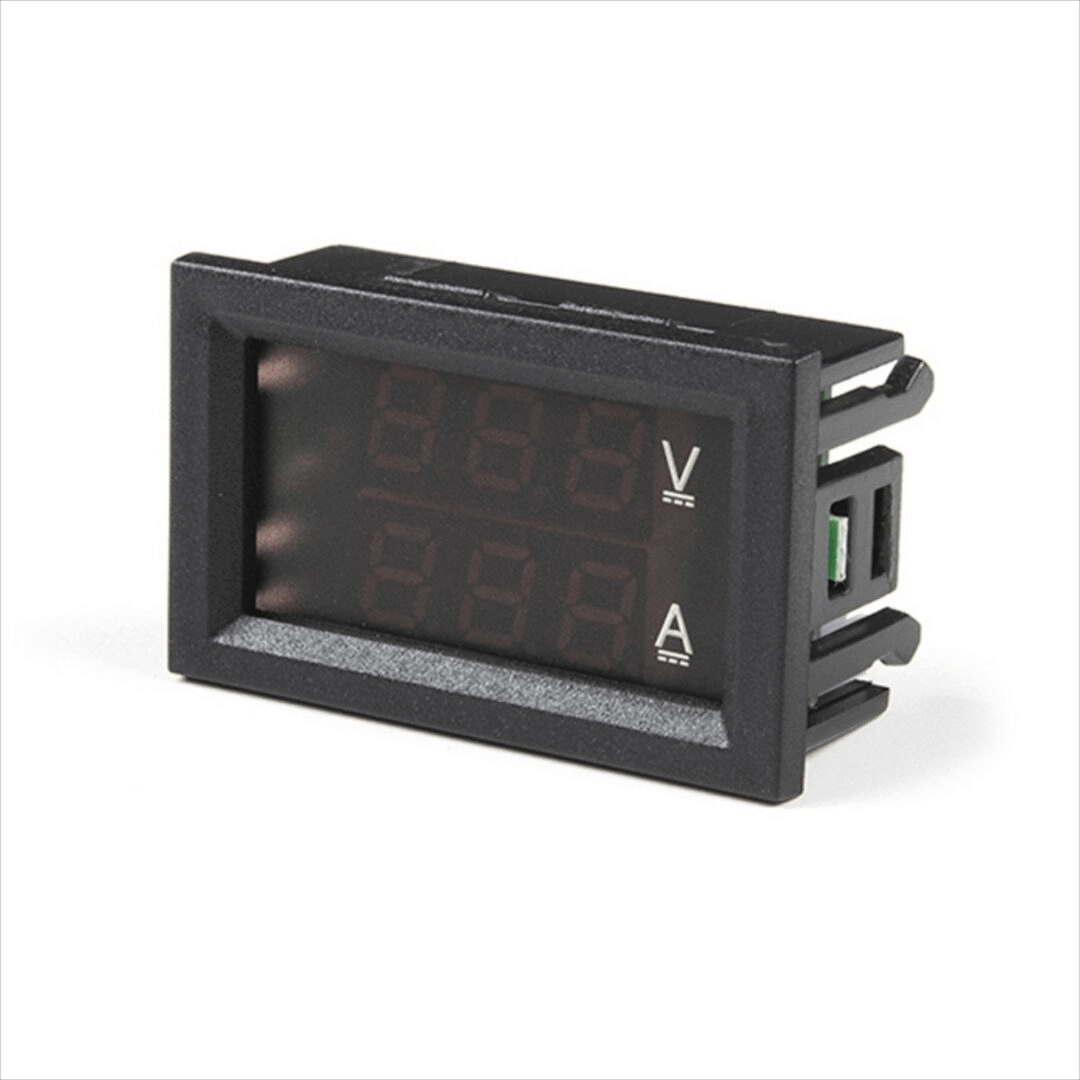

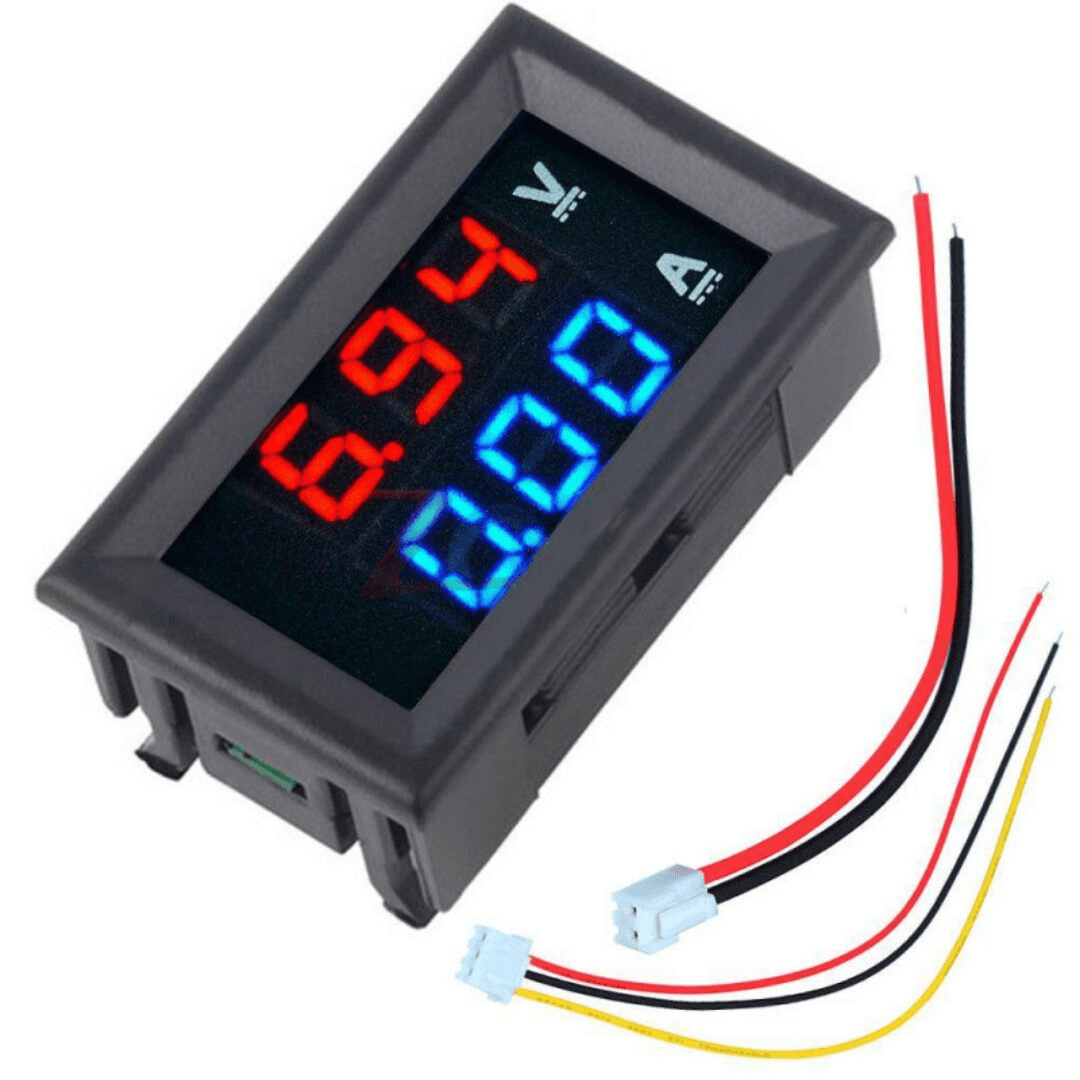

0-100V 10A Dual LED Voltmeter Ammeter Monitor Panel

Description

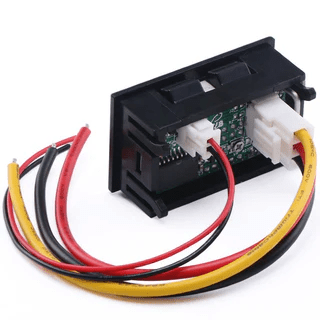

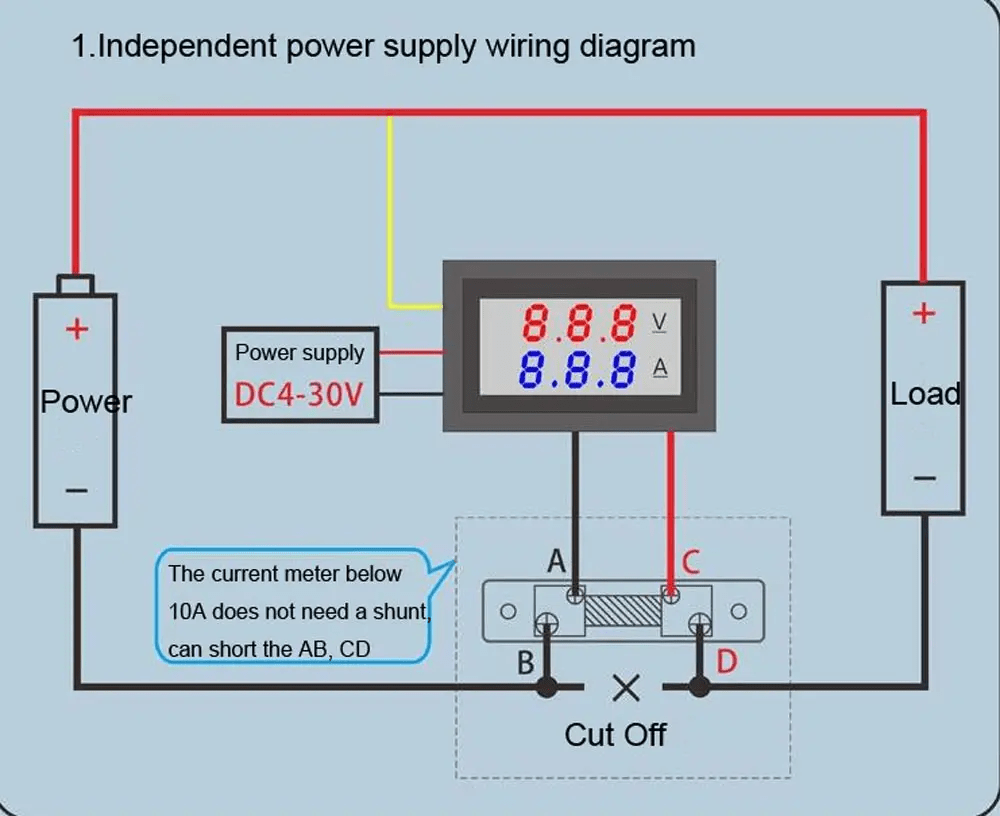

Black line (thin): vacant or buck circuit (module) Negative.
Red line (thin): power supply Positive.
Black line (thick): COM, common measuring.
Red line (thick): PW+, measuring terminal voltage input positive.
Yellow line (thick): IN+, current input Positive.

Application:
– Battery Voltage Monitoring: Effortlessly assess battery voltage levels (Li-ion, lead-acid, etc.) in real-time to prevent over-discharge or failure.

– Power Supply Testing: Monitor both voltage and current outputs in DC power supplies, adapters, or DIY power systems to ensure stable operation.

– DIY Electronics & IoT Projects: Integrate this module into projects (like Raspberry Pi systems, robotics, or automation setups) to display live power consumption without the need for programming a display.

– Automotive & Vehicle Applications: Ideal for use in cars, bikes, or electric vehicles to monitor battery health and charging system performance.

– Circuit Debugging & Troubleshooting: Facilitates the detection of faults by verifying whether voltage and current flow correctly in a circuit during testing and debugging.

– Embedded System Panels / Enclosures: Can be panel-mounted in control boxes, inverter systems, or laboratory setups to provide continuous real-time electrical readings.
