DC0-100V 100A Dual Led 0.28 ” Display Voltage and Current Digital Meter Red and Black with Shunt
$3.17
♦ Specifications
Voltage Measurement Range: 0~100Vdc.
Current Range: 0~100A.
Power supply Input: 4~30.0Vdc.
Voltage Measurement Accuracy: ±0.1%.
Current Measurement Accuracy: ±1.0%.
Current Shunt: 100A/75mV.
Operating Current: <20mA.
Refresh Rate: ~300mS.

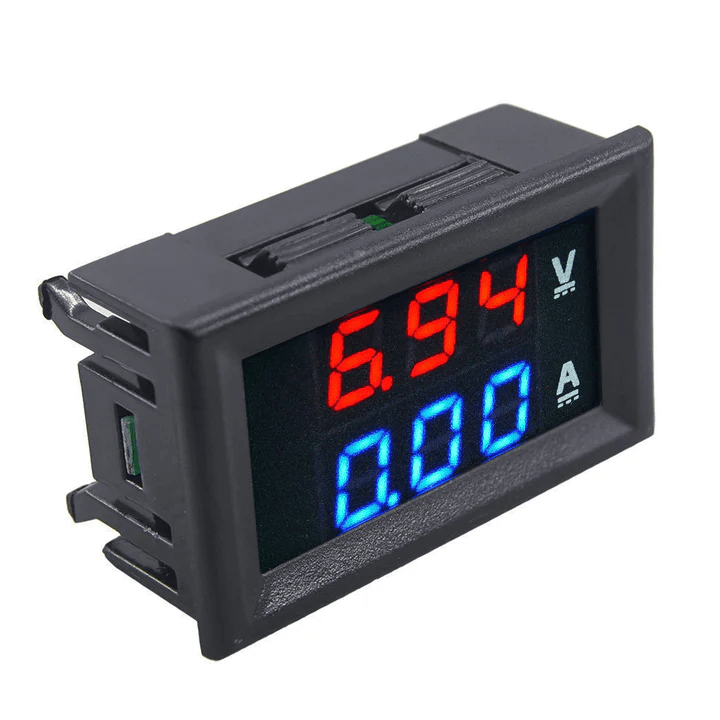

Display: Double 3-Digit 0.28″ LED.
Display Color: Red (Voltage) + Blue (Current).
Dimensions: 48 x 29 x 22 mm (L x W x H).
Mounting Hole Cut-out: 46 x 27 mm.
Weight: 70gram (include Current Shunt)
Operating Temperature: –10°C to +65°C

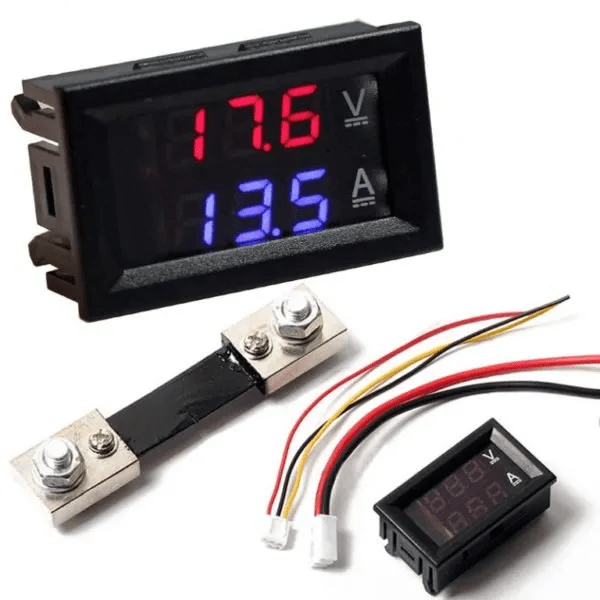

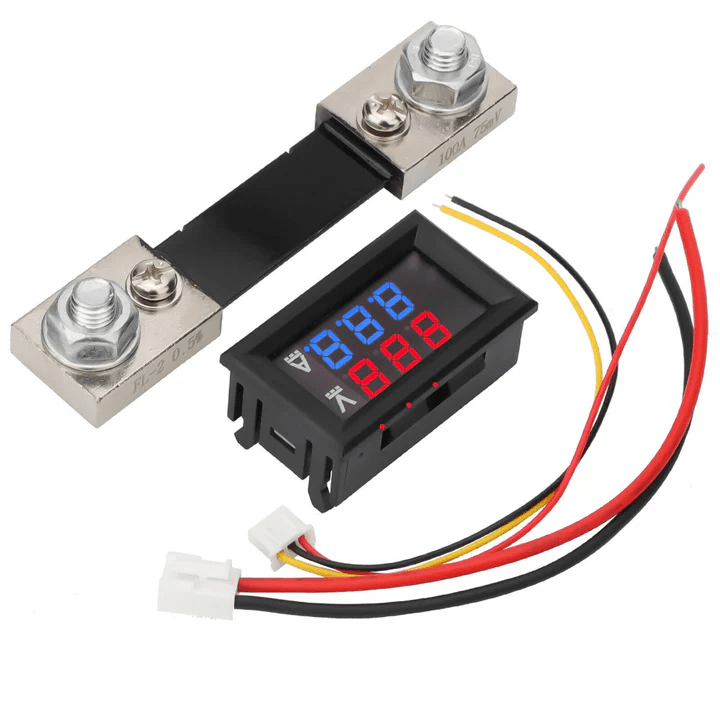

Package Include:
1x Dual Display VA Meter Module.
1x 100A~75mV Current Shunt
2x Connecting Cable.
Combine shipping available. Message us for shipping rates.
- Quality Assurance
- Fast Worldwide Shipping
- Buy with Confidence
Description
This is 0.28″ 5 Wires Red Led Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution.

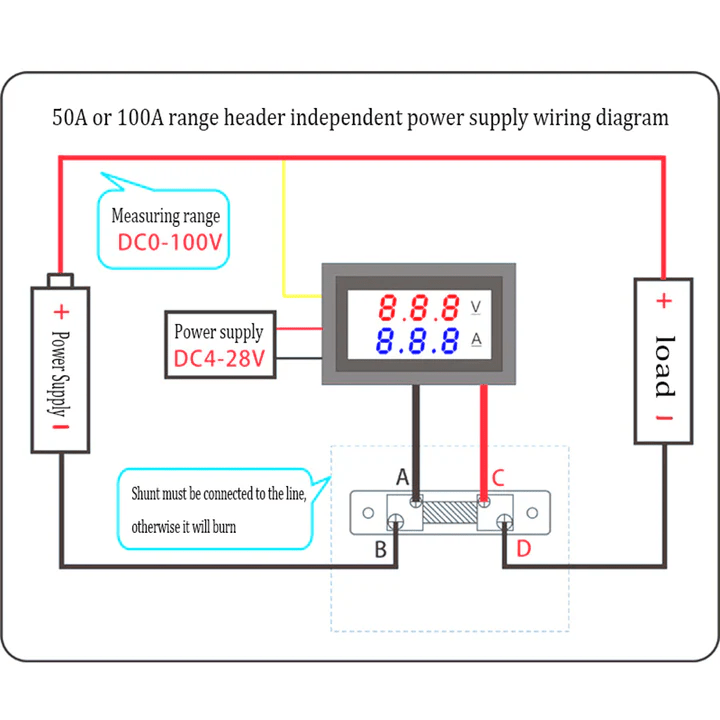

One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.
Applications:
– Monitors voltage and current in solar systems and energy storage.
– Used for DC power supply testing and performance assessment.
– Ideal for electric vehicle (EV) battery monitoring.
– Assists in testing and troubleshooting DC circuits.
– Suitable for compact devices and DIY projects.
– Tracks power consumption in DC-powered systems.
